Creating 7 Series FPGA LPDDR2 SDRAM Memory Controller Block Design
Memory Selection
This page displays all memory types that are supported by the selected FPGA family.
1. Select the LPDDR2 SDRAM controller type.
2. Click Next to display the Controller Options page
X-Ref Target - Figure 4-16
Controller Options
This page shows the various controller options that can be selected
The use of the Memory Controller is optional. The Physical Layer, or PHY, can be used without the
TIP:
Memory Controller. The Memory Controller RTL is always generated by the MIG tool, but this output
need not be used. Controller only settings such as ORDERING are not needed in this case, and the
defaults can be used. Settings pertaining to the PHY, such as the Clock Period, are used to set the PHY
parameters appropriately.
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016

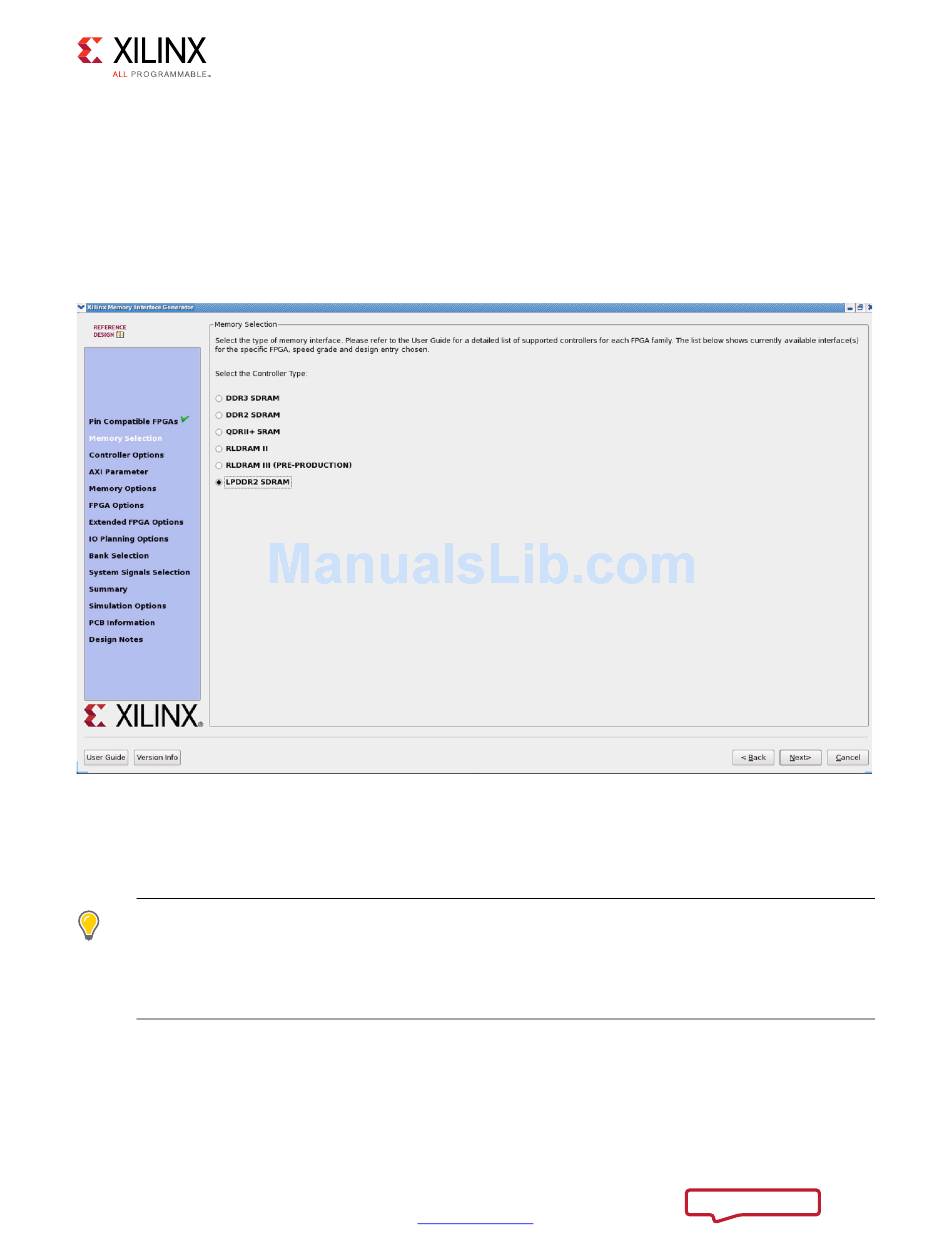

Figure 4-16: Memory Type and Controller Selection
