A command request is issued by asserting user_cmd_en as a single cycle pulse. At this
time, the user_cmd, user_addr, and user_ba signals must be valid. To issue a read
request, user_cmd is set to 2'b01, while for a write request, user_cmd is set to 2'b00. For
a write request, the data is to be issued in the same cycle as the command by asserting the
user_wr_en signal High and presenting valid data on user_wr_data and user_wr_dm.
Both write and read commands in the same user_cmd cycle is not allowed.
IMPORTANT:
For RLDRAM II and eight-word burst architecture, an extra cycle of data is required for a
given write command, as shown in
be filled with read commands, if desired.
X-Ref Target - Figure 3-42

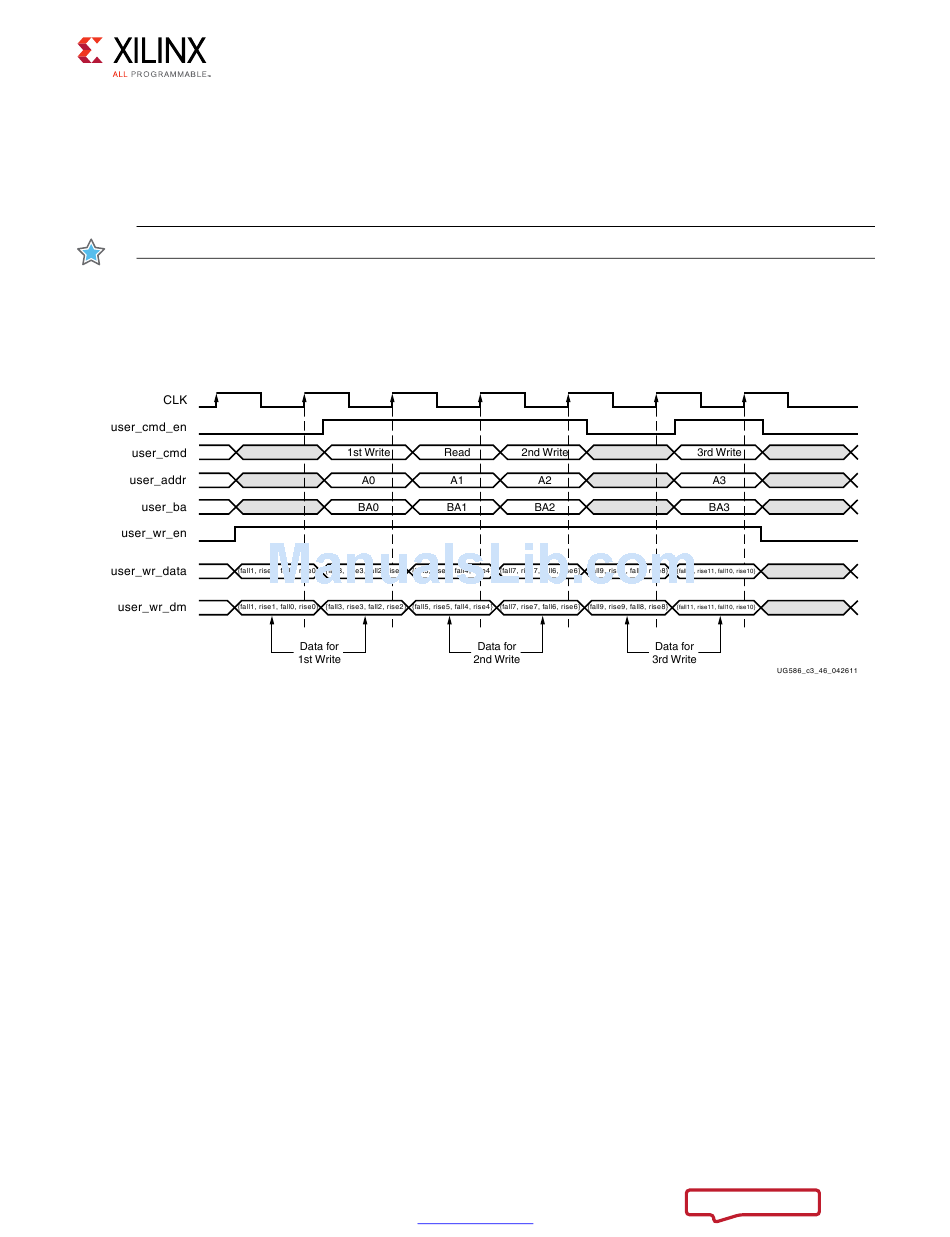

Figure 3-42: RLDRAM II Client Interface Protocol (Eight-Word Burst Architecture)
The client interface protocol for the RLDRAM 3 eight-word burst architecture is shown in
Figure 3-43.
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 3: RLDRAM II and RLDRAM 3 Memory Interface Solutions
Figure 3-42. Any gaps in the command flow required can
