X-Ref Target - Figure 3-50
Output data to a byte group D
Write_enable from FPGA logic
WREN
CLK
Phy_clk
Of_full
From Initialization Logic
From Initialization Logic
To/From Initialization Logic

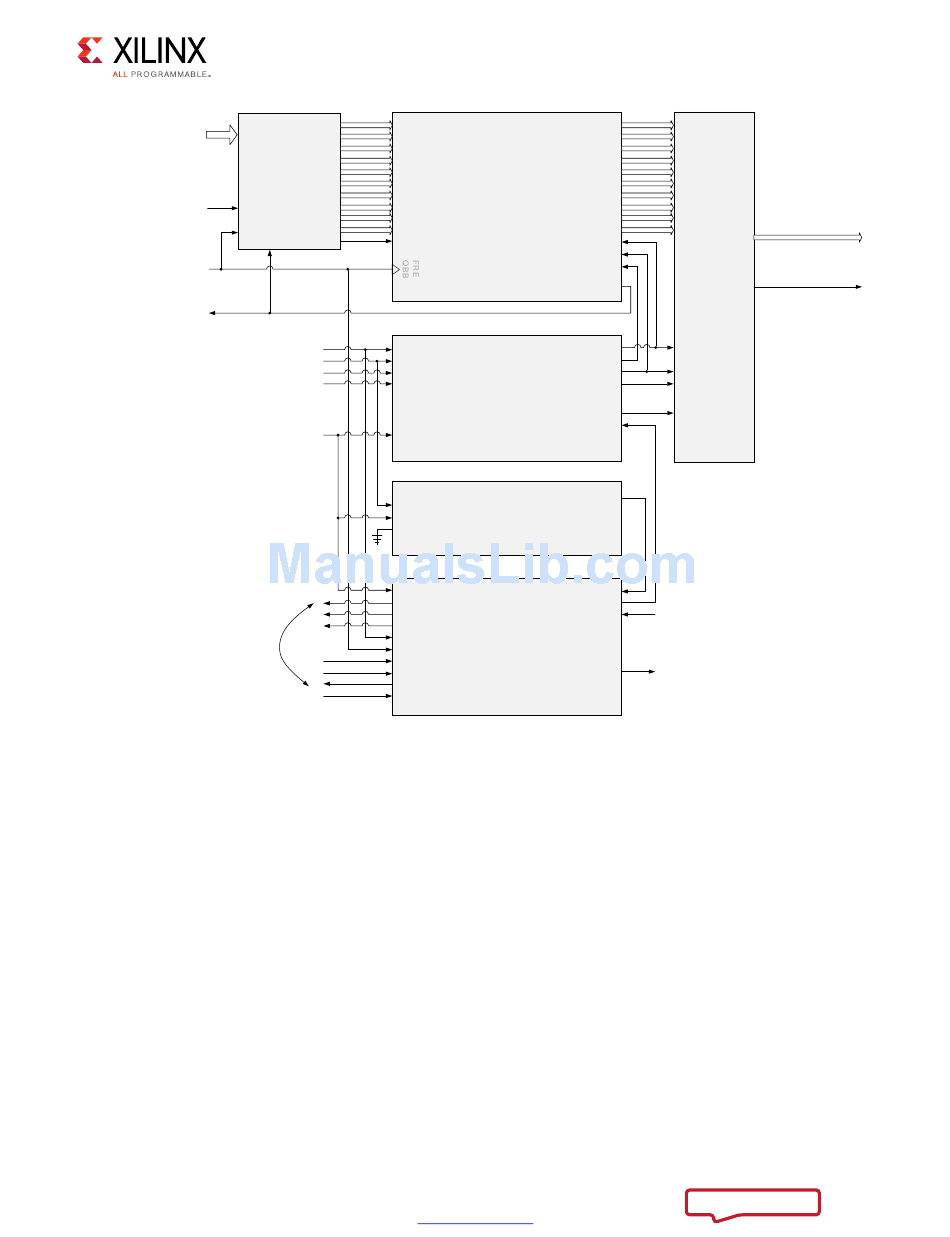

Figure 3-50: Write Path Block Diagram of the RLDRAM II Interface Solution
The OSERDES blocks available in every I/O simplifies generation of the proper clock,
address, data, and control signaling for communication with the memory device. The flow
through the OSERDES uses two different input clocks to achieve the required functionality.
Data input ports D1/D2 or D3/D4 are clocked in using the clock provided on the CLKDIV
input port, and then passed through a parallel-to-serial conversion block. The OSERDES is
used to clock all outputs from the PHY to the memory device. Upon exiting the OSERDES, all
output signals must be presented center-aligned with respect to the generated clocks
(CK/CK# for address/control signals, DK/DK# for data and data mask). For this reason, the
PHASER_OUT_PHY block is also used in conjunction with the OSERDES to achieve center
alignment.
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 3: RLDRAM II and RLDRAM 3 Memory Interface Solutions
Q D0[3:0]
D1[3:0]
D2[3:0]
D3[3:0]
D4[3:0]
PRE_FIFO
D5[7:0]
D6[7:0]
D7[3:0]
D8[3:0]
D9[3:0]
WREN
WRCLK
Of_rd_en
From PLL MEMREFCLK
From PLL
FREQREFCLK
FINEENABLE
FINEINC
rst
RST
CLKIN
RST
PWRDWN
RESET
PHYCTLALMOSTFULL
PHYCTLFULL
PHYCTLREADY
MEMREFCLK
PHYCLK
PHYCTLWD
PHYCTLWRENABLE
PLLLOCK
From PLL SYNCIN
www.xilinx.com
Q0[3:0]
Q1[3:0]
Q2[3:0]
Q3[3:0]
Q4[3:0]
Q5[7:0]
Q6[7:0]
OUT_FIFO
Q7[3:0]
Q8[3:0]
Q9[3:0]
RST
RDCLK
RDEN
FULL
OSERDESRST
RDENABLE
OCLKDIV
OCLK
PHASER_OUT_PHY
OCLKDELAYED
BURSTPENDINGPHY
LOCKED
PHASER_REF
REFDLLLOCK
OUTBURSTPENDING
PHYCTLMSTREMPTY
PHY_CONTROL
PHYCTLEMPTY
OSERDES O/P to memory
(rldii_dq, rldii_dm)
Write clocks to memory
OLOGIC
(rldii_dk/rldii_dk#)
(OSERDES/
ODDR)
From Master phy_control
To other phy_control blocks
