13. Select MIG 7 Series to open the MIG tool
X-Ref Target - Figure 4-13

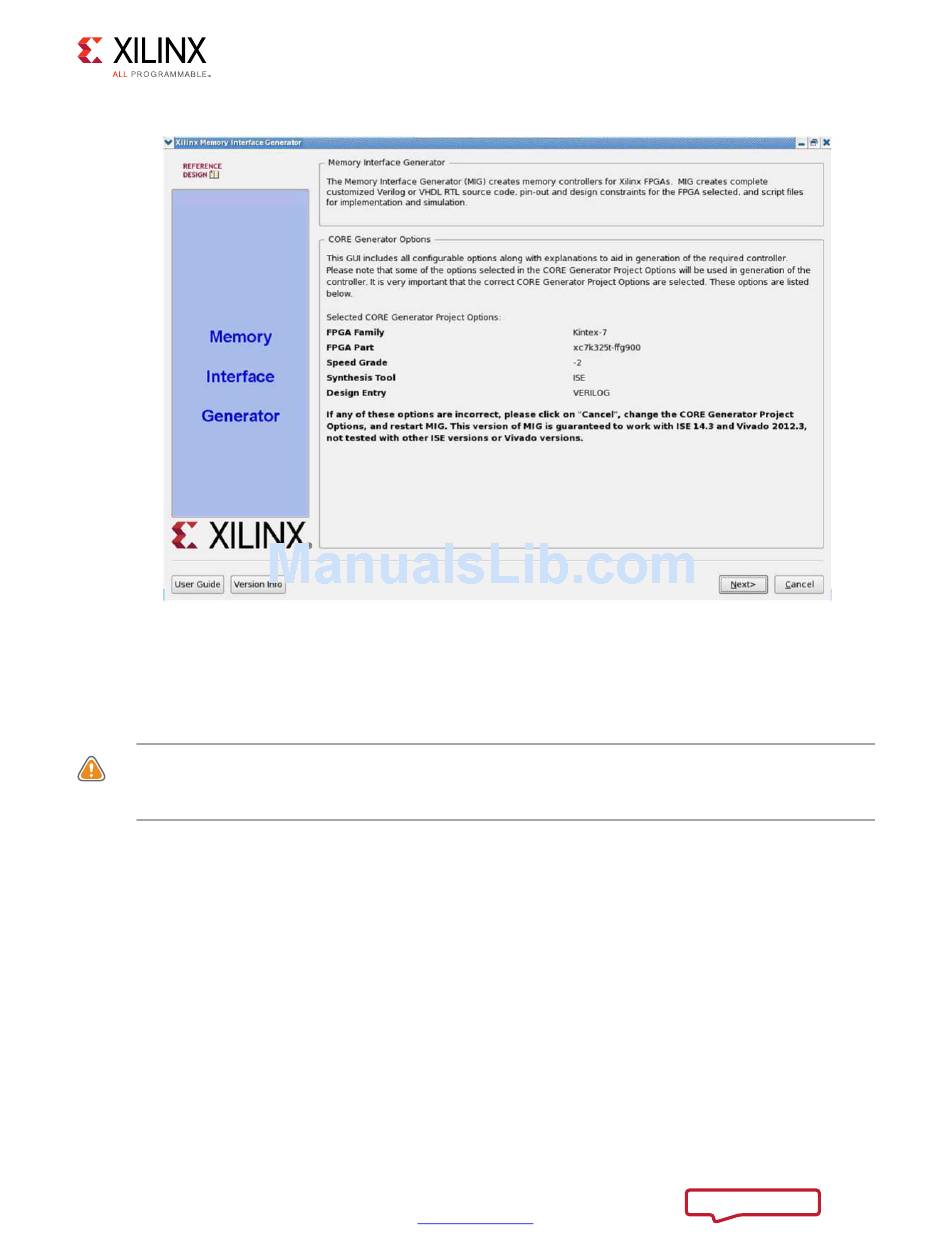

Figure 4-13: 7 Series FPGAs Memory Interface Generator FPGA Front Page
14. Click Next to display the Output Options page.
Customizing and Generating the Core
The Windows operating system has a 260-character limit for path lengths, which can affect
CAUTION!
the Vivado tools. To avoid this issue, use the shortest possible names and directory locations when
creating projects, defining IP or managed IP projects, and creating block designs.
MIG Output Options
1. Select Create Design to create a new Memory Controller design. Enter a component
name in the Component Name field
2. Number of controllers supported for LPDDR2 SDRAM is 1.
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 4: LPDDR2 SDRAM Memory Interface Solution
(Figure 4-13).
(Figure 4-14).
