The Create Custom Part page includes all of the specifications of the memory component
selected in the Select Base Part pull-down menu.
1. Enter the appropriate Memory Part Name in the text box.
2. Select the suitable base part from the Select Base Part list.
3. Select a suitable value for the Row Address.
4. After editing the required fields, click Save. The new part is saved with the selected
name. This new part is added in the Memory Parts list on the Controller Options page.
It is also saved into the database for reuse and to produce the design.
5. Click Next to display the FPGA Options page.
Memory Options

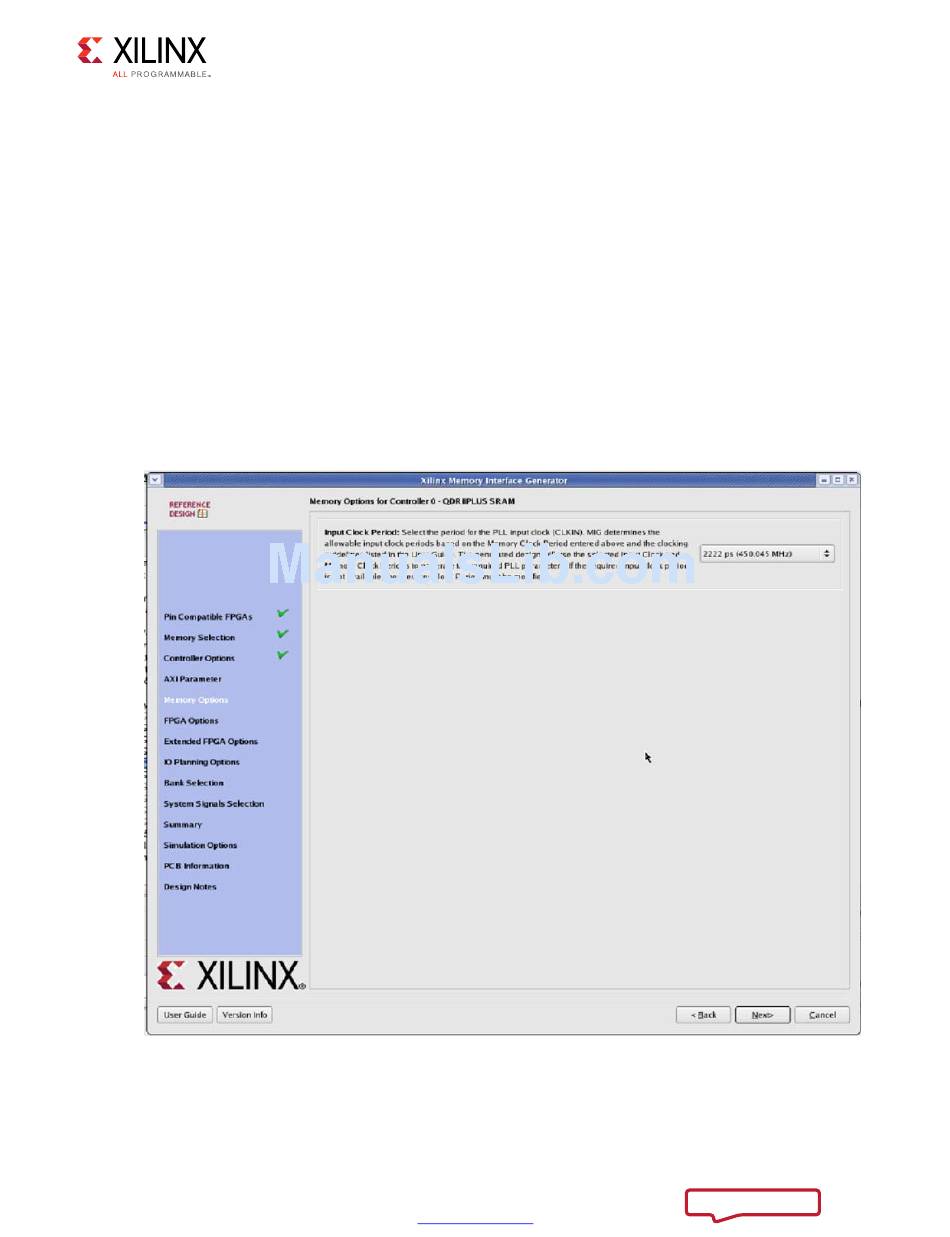

Figure 2-20 shows the Memory Options page.
X-Ref Target - Figure 2-20
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 2: QDR II+ Memory Interface Solution
Figure 2-20: Memory Options Page
