• PHASER_IN/PHASER_OUT blocks are available in each byte group and are multi-stage
programmable delay line loops that can provide precision phase adjustment of the
clocks. Dedicated clock within an I/O bank referred to as byte group clocks generated
by the PHASERs help minimize the number of loads driven by the byte group clock
drivers.
• OUT_FIFO and IN_FIFO are shallow 8-deep FIFOs available in each byte group and serve
to transfer data from the FPGA logic domain to the I/O clock domain. OUT_FIFOs are
used to store output data and address/controls that need to sent to the memory while
IN_FIFOs are used to store captured read data before transfer to the FPGA FPGA logic.
The Pinout Requirements
the memory interface signals inside the byte groups.
X-Ref Target - Figure 2-43

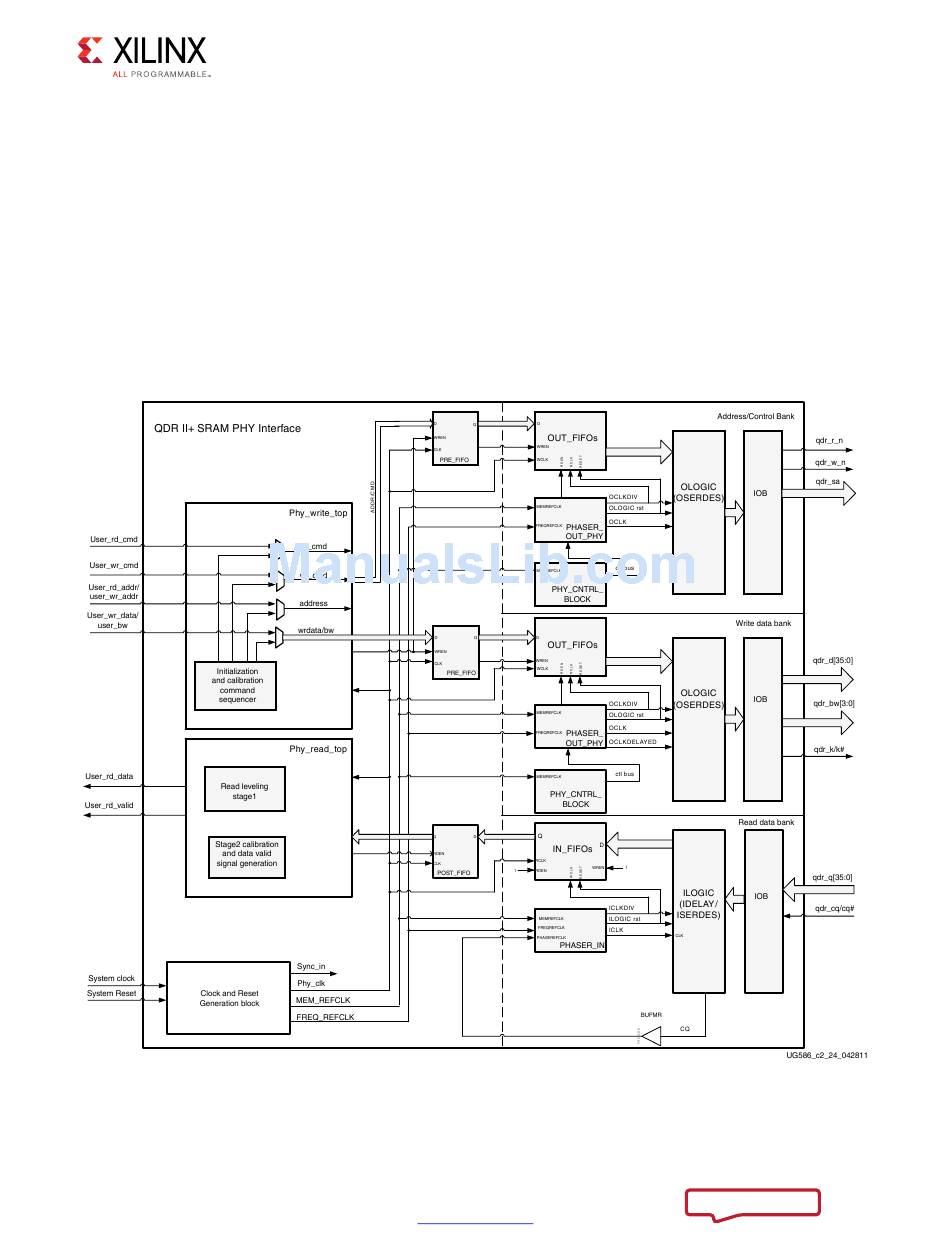

Figure 2-43: High-Level PHY Block Diagram for a 36-Bit QDR II+ Interface
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 2: QDR II+ Memory Interface Solution
section explains the rules that need to be followed while placing
