For customized settings, click Deselect Banks and select the appropriate bank and memory
signals. Click Next to move to the next page if the default setting is used. To unselect the
banks that are selected, click Deselect Banks. To restore the defaults, click Restore
Defaults. VCCAUX_IO groups are shown for HP banks in devices with these groups using
dashed lines. VCCAUX_IO is common to all banks in these groups. The memory interface
must have the same VCCAUX_IO for all banks used in the interface. MIG automatically sets
the VCCAUX_IO constraint appropriately for the data rate requested.
For devices implemented with SSI technology, the SLRs are indicated by a number in the
header in each bank, for example, SLR 1. Interfaces cannot span across Super Logic Regions.
Not all devices have Super Logic Regions.
X-Ref Target - Figure 3-22
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 3: RLDRAM II and RLDRAM 3 Memory Interface Solutions

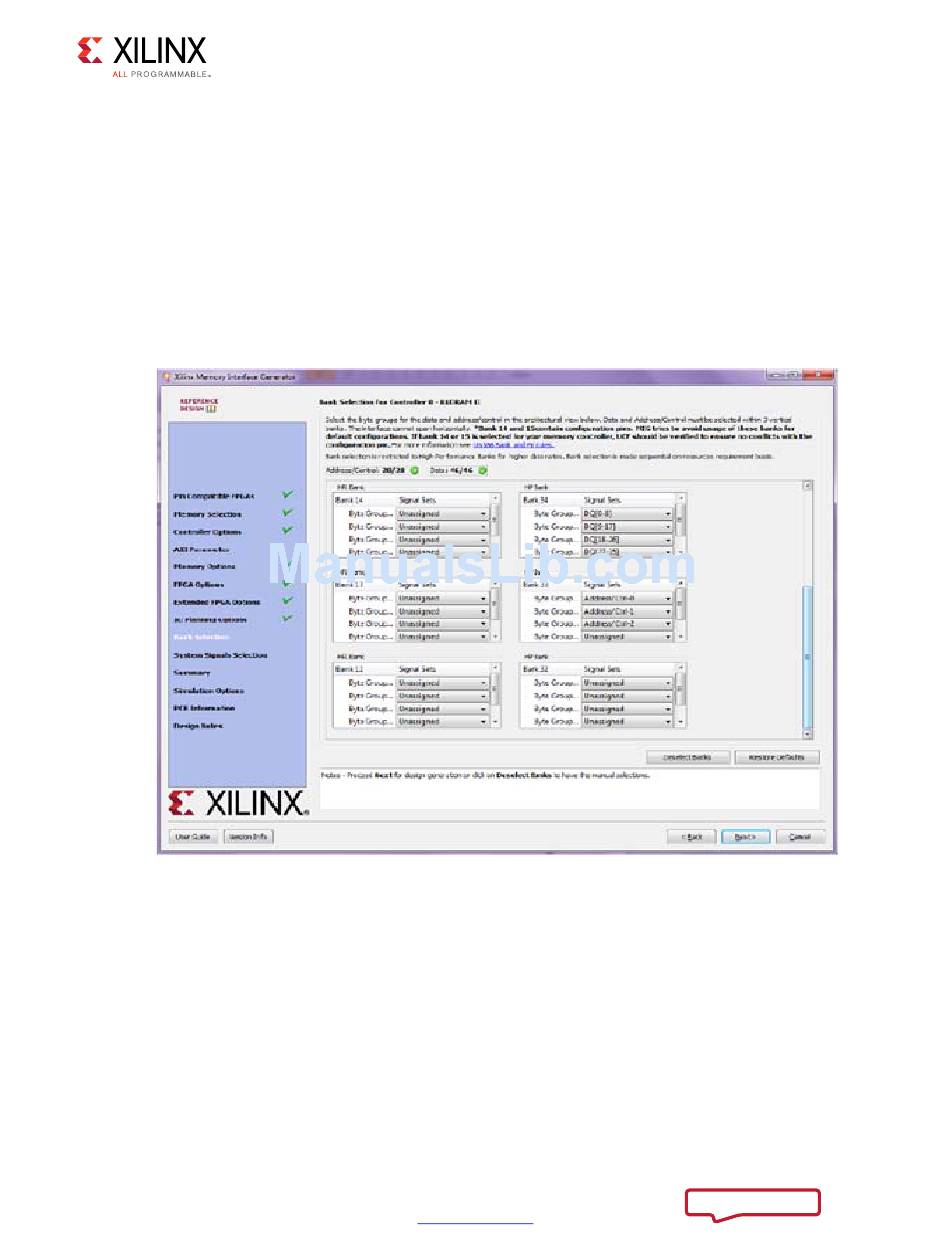

Figure 3-22: Bank Selection Page
