6. Click Next to open the Add Existing IP (Optional) page
created, the XCI file generated by the IP can be added to the project and the previous
created IP files are automatically added to the project. If the IP was not created earlier,
proceed to the next page.
X-Ref Target - Figure 4-6
7. Click Next to open the Add Constraints (Optional) page
file exists in the repository, it can be added to the project. Proceed to the next page if
the constraints file does not exist.
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 4: LPDDR2 SDRAM Memory Interface Solution

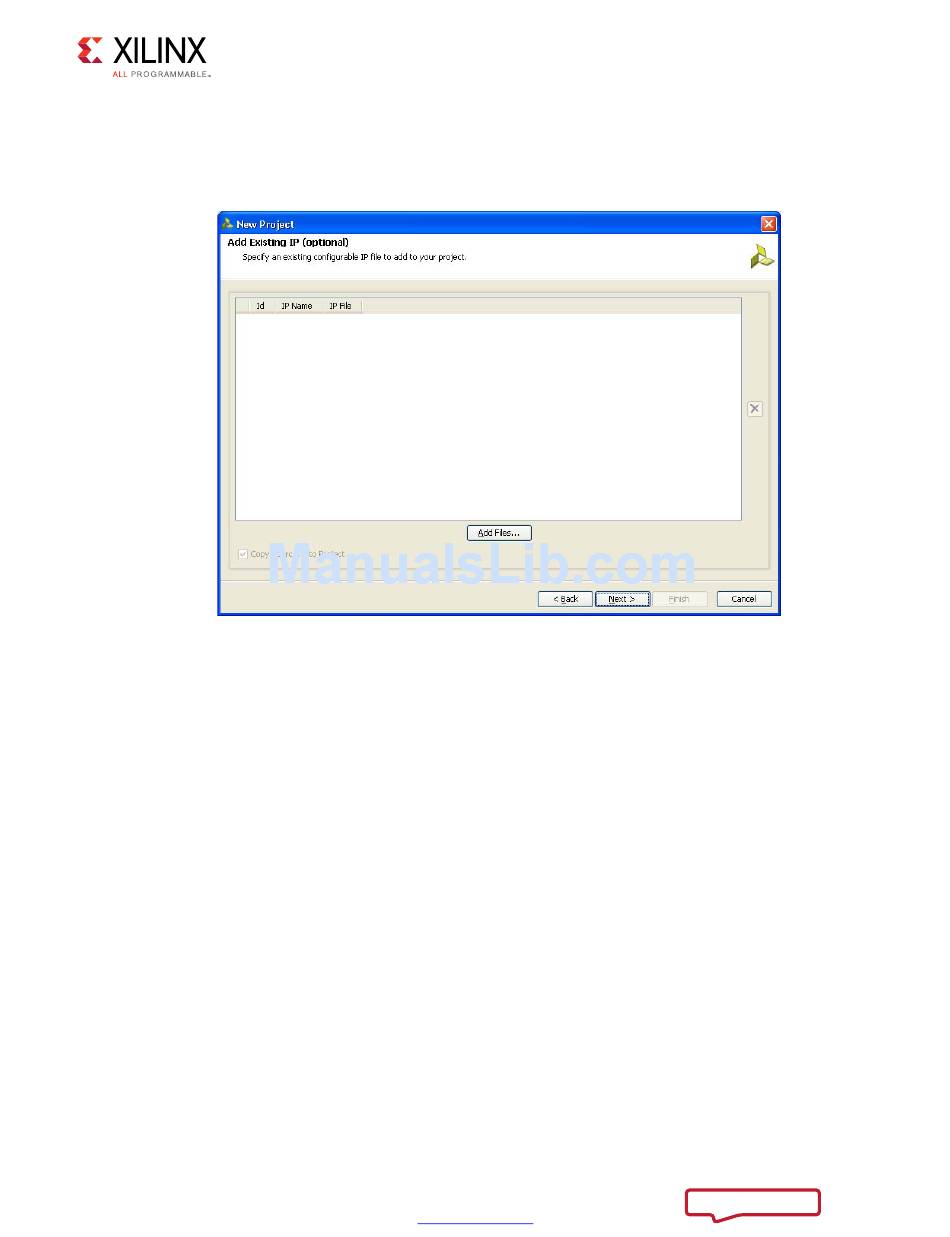

Figure 4-6: Add Existing IP (Optional)
www.xilinx.com
(Figure 4-6). If the IP is already
(Figure 4-7). If the constraints
