Core Architecture

Overview

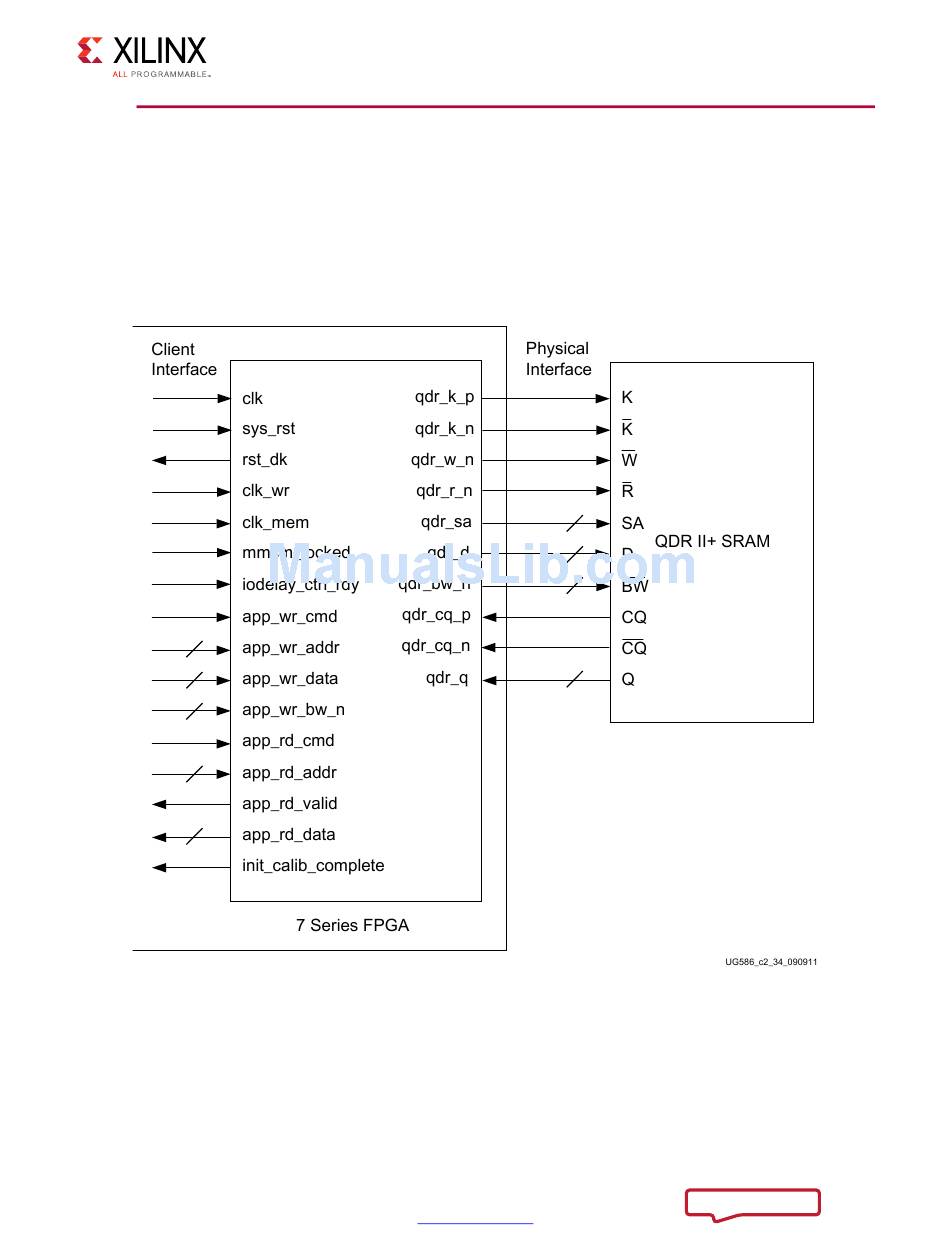

Figure 2-38 shows a high-level block diagram of the 7 series FPGA QDR II+ SRAM interface
solution. This figure shows both the internal FPGA connections to the client interface for
initiating read and write commands, and the external interface to the memory device.
X-Ref Target - Figure 2-38
Figure 2-38: High-Level Block Diagram of QDR II+ Interface Solution
