X-Ref Target - Figure 2-52

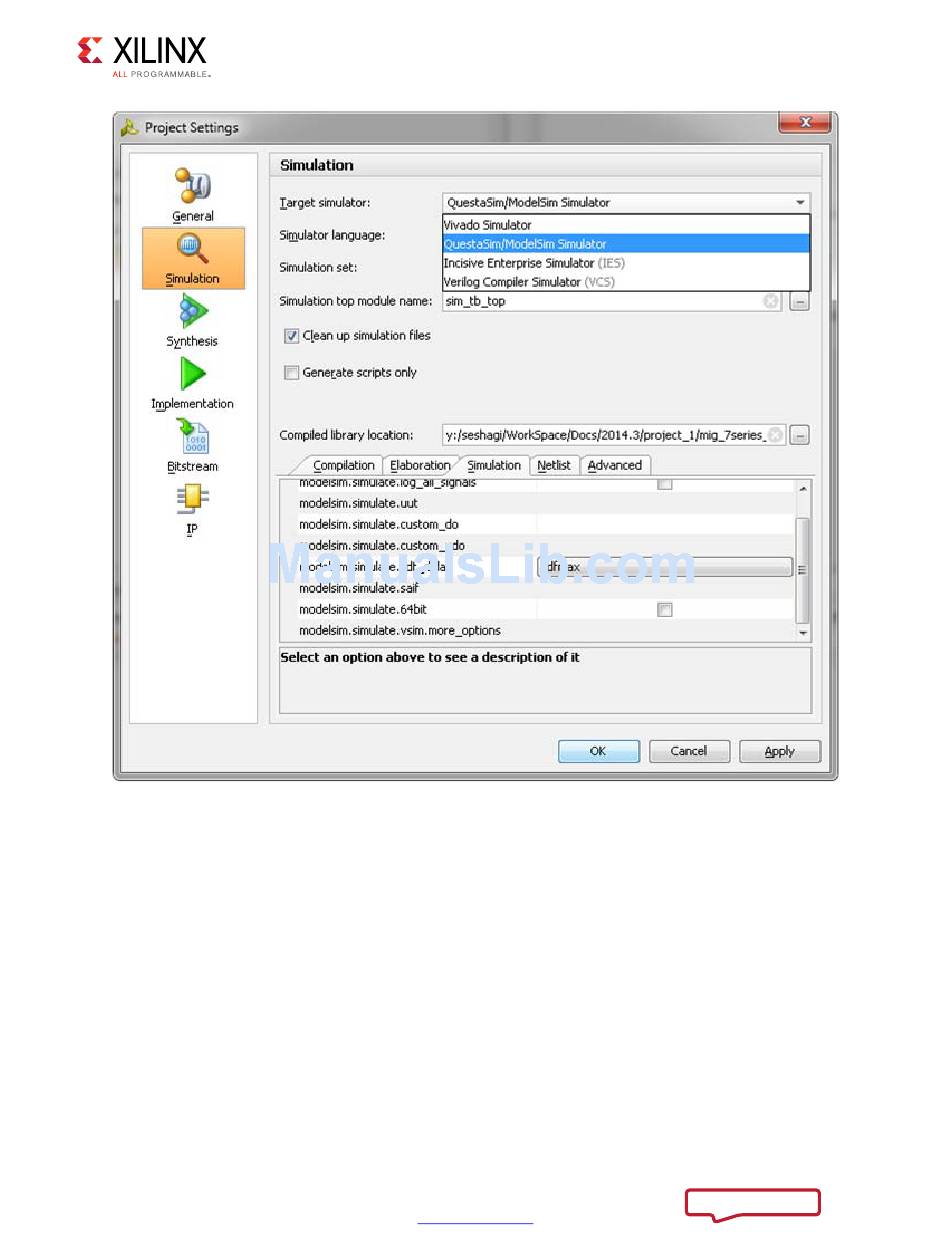

Figure 2-52: Simulation with Questa Advanced Simulator
4. In the Flow Navigator window, select Run Simulation and select Run Behavioral
Simulation as shown in
5. Vivado invokes Questa Advanced Simulator and simulations are run in the Questa
Advanced Simulator tool. For more information, see the Vivado Design Suite User Guide:
Logic Simulation (UG900)
Simulation Flow Using VCS
1. In the Open IP Example Design Vivado project, under Flow Navigator select
Simulation Settings.
2. Select Target simulator as Verilog Compiler Simulator (VCS).
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 2: QDR II+ Memory Interface Solution
Figure 2-51.
[Ref 8].
