Click Next to move to PCB Information page.
PCB Information
This page displays the PCB-related information to be considered while designing the board
that uses the MIG tool generated designs. Click Next to move to the Design Notes page.
Design Notes
Click Generate to generate the design files. The MIG tool generates two output directories:
example_design and user_design. After generating the design, the MIG GUI closes.
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 3: RLDRAM II and RLDRAM 3 Memory Interface Solutions

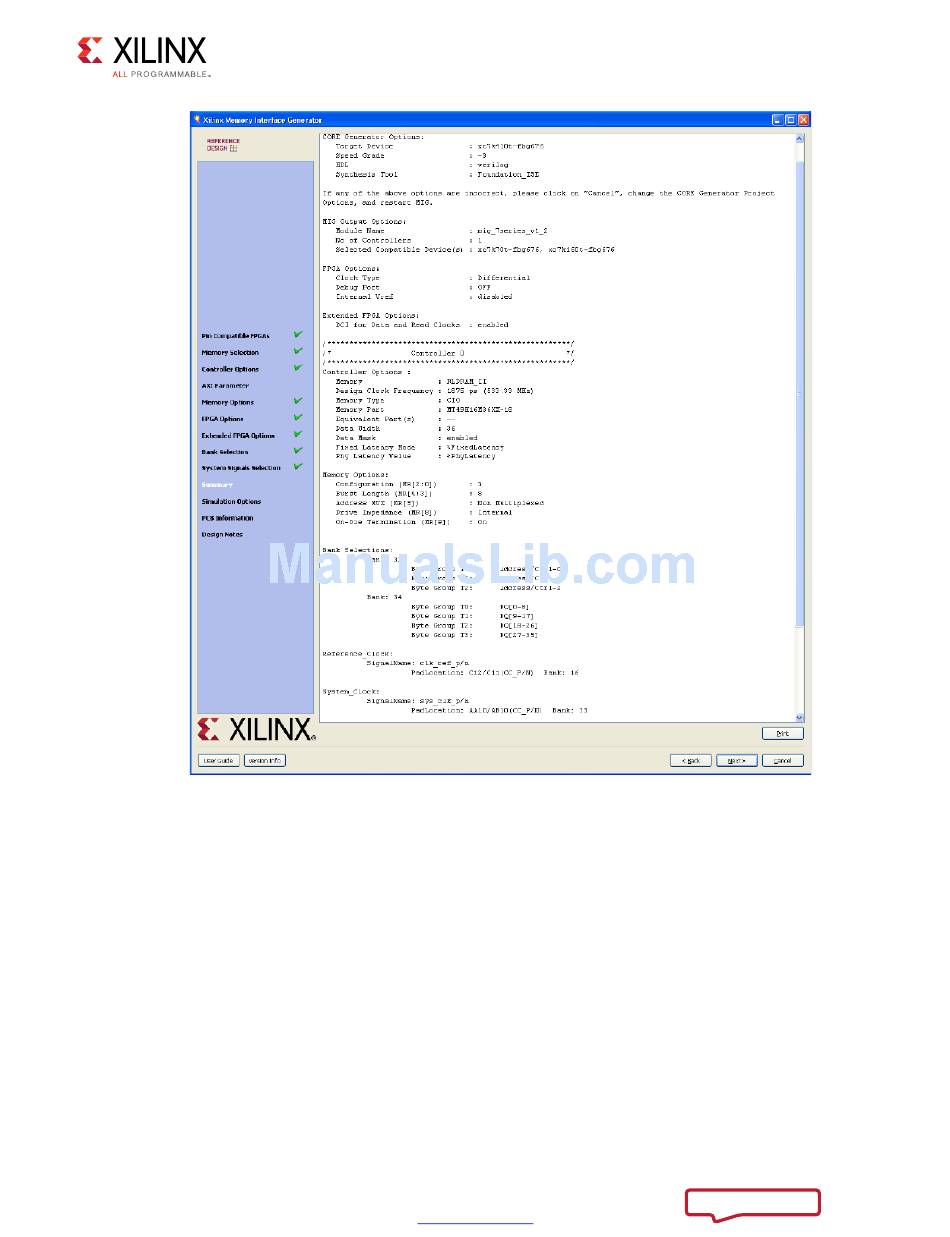

Figure 3-24: Summary Page
