X-Ref Target - Figure 1-59
Datapath
The datapath comprises the write and read datapaths. The datapath in the 7 series FPGA is
completely implemented in dedicated logic with IN/OUT_FIFOs interfacing the FPGA logic.
The IN/OUT_FIFOs provide datapath serialization/deserialization in addition to clock
domain crossing, thereby allowing the FPGA logic to operate at low frequencies up to 1/4
the frequency of the DDR2 or DDR3 SDRAM clock.
the datapath.
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 1: DDR3 and DDR2 SDRAM Memory Interface Solution

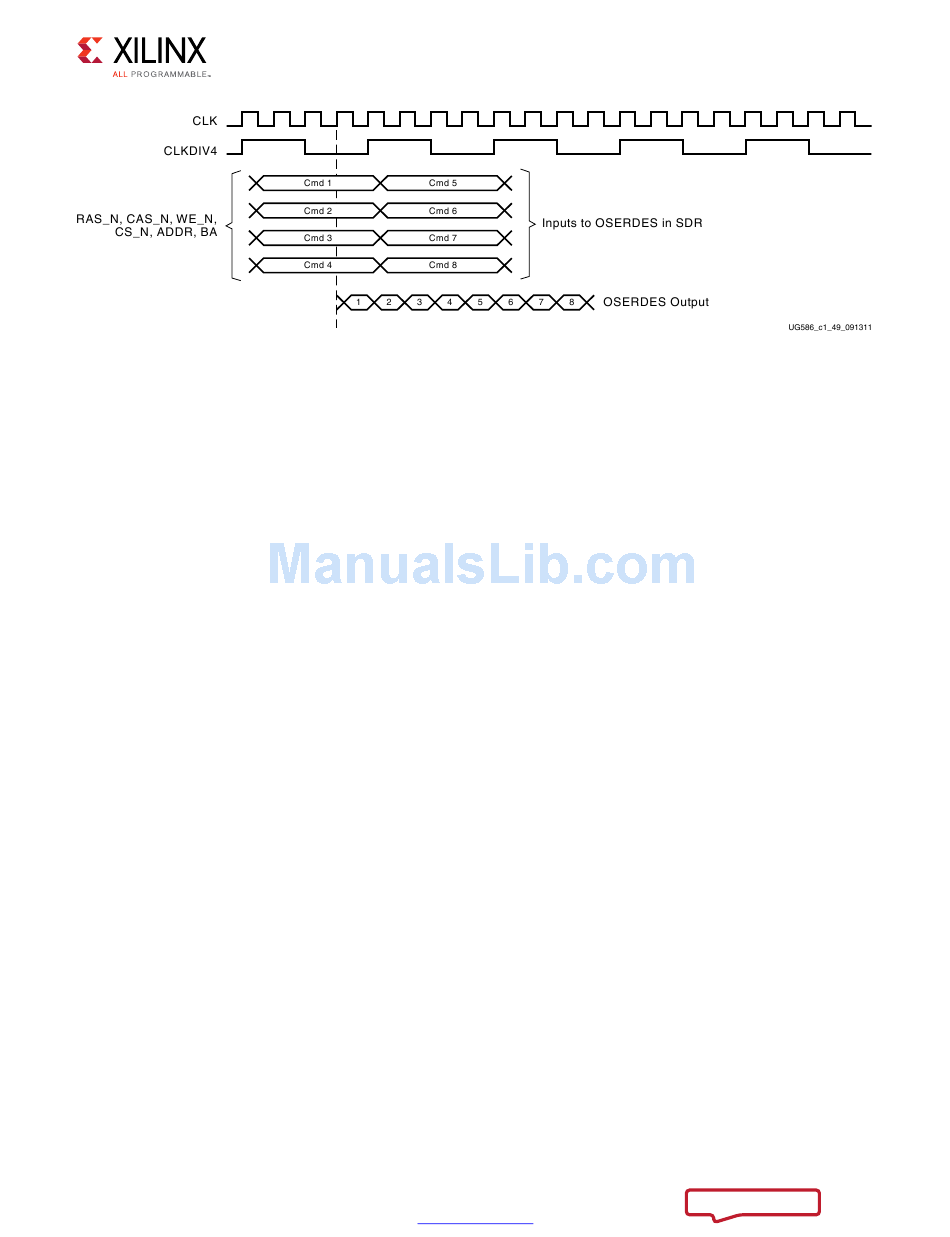

Figure 1-59: Address/Command Timing Diagram
www.xilinx.com
Figure 1-60
shows the block diagram of
Send Feedback
142
