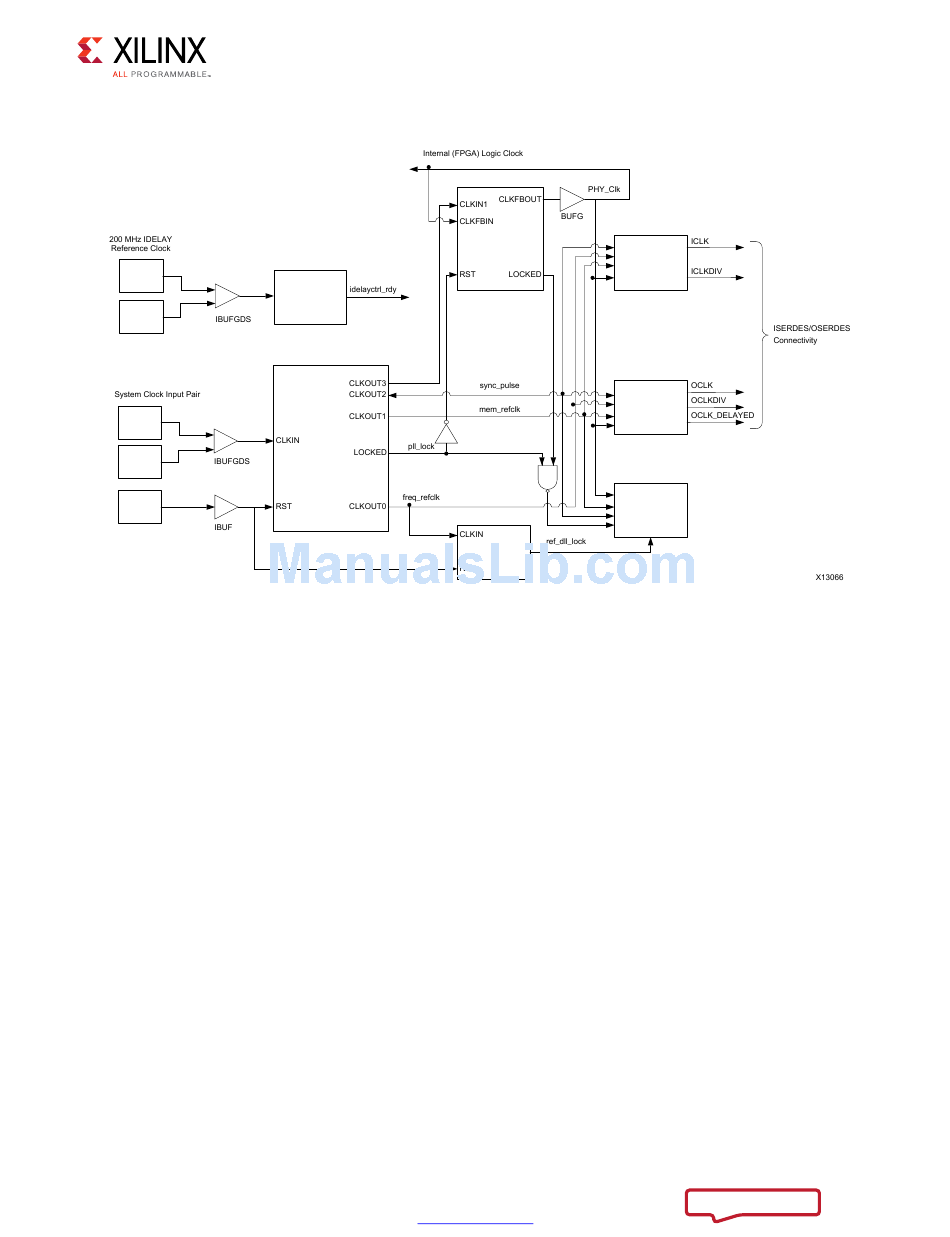

Figure 2-41 shows the clocking architecture.
X-Ref Target - Figure 2-41
CLKREF
N
CLKREF
P
SYSCKN
SYSCKP
SYSRST
The default setting for the PLL multiply (M) and divide (D) values is for the system clock
input frequency to be equal to the memory clock frequency. This 1:1 ratio is not required.
The PLL input divider (D) can be any value listed in the 7 Series FPGAs Clocking Resources
User Guide (UG472)
other constraints listed here are observed.
The PLL multiply (M) value must be between 1 and 16 inclusive. The PLL VCO frequency
range must be kept in the range specified in the silicon data sheet. The sync_pulse must
be 1/16 of the mem_refclk frequency and must have a duty cycle of 1/16 or 6.25%. For
information on physical placement of the PLL and the System Clock CCIO input, see
Guidelines, page
The internal FPGA logic clock generated by the PLL is clocked by a global clocking resource
at half the frequency of the QDR II+ memory frequency.
A 200 MHz IDELAY reference clock must be supplied to the IDELAYCTRL module. The
IDELAYCTRL module continuously calibrates the IDELAY elements in the I/O region to
account for varying environmental conditions. The IP core assumes an external clock signal
is driving the IDELAYCTRL module. If a PLL clock drives the IDELAYCTRL input clock, the PLL
lock signal needs to be incorporated in the rst_tmp_idelay signal inside the
IODELAY_CTRL module. This ensures that the clock is stable before being used.
