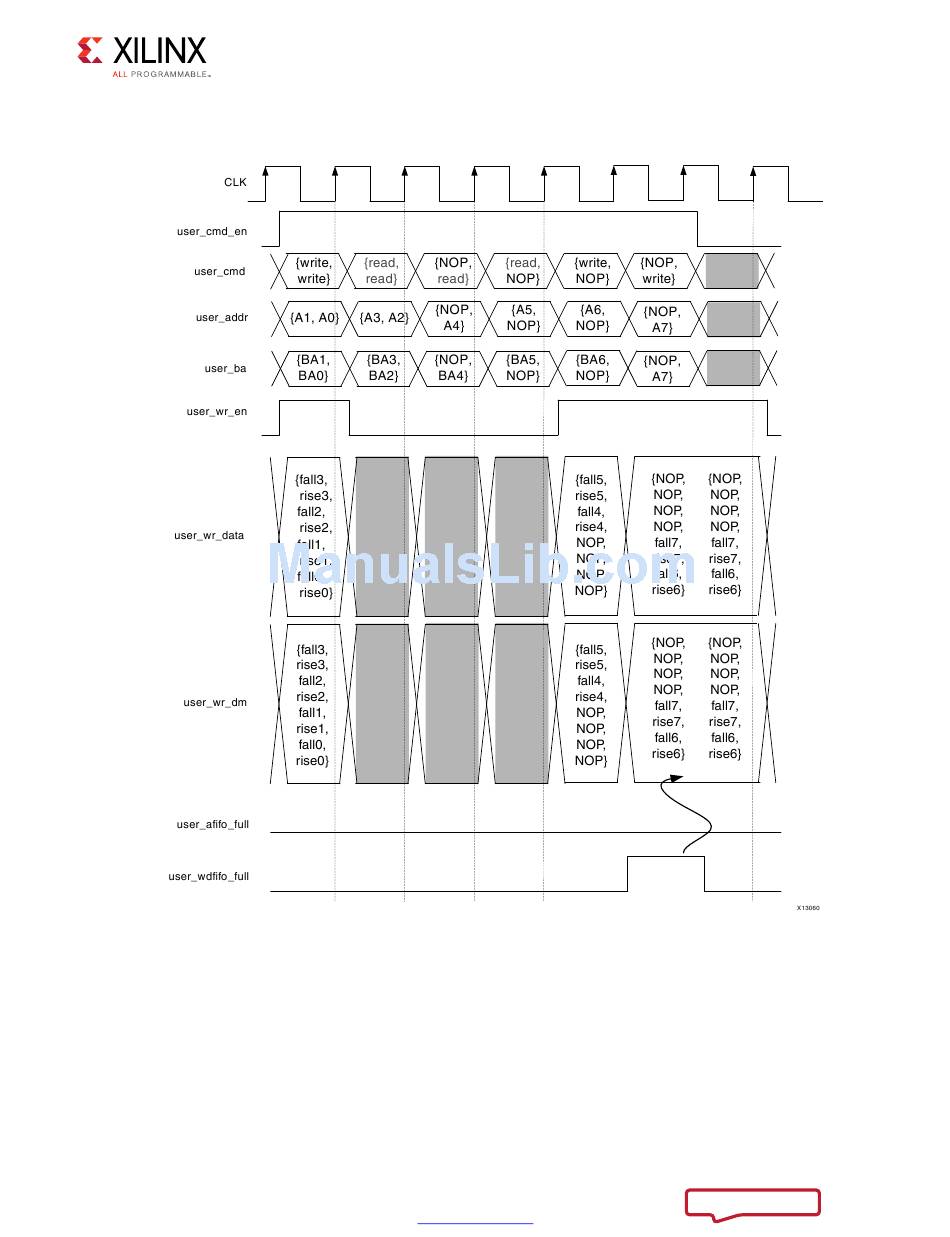

The client interface protocol for the RLDRAM 3 four-word burst architecture is shown in
Figure 3-41.
X-Ref Target - Figure 3-41
Figure 3-41: RLDRAM 3 Client Interface Protocol (Four-Word Burst Architecture)
Before any requests can be accepted, the ui_clk_sync_rst signal must be deasserted
Low. After the ui_clk_sync_rst signal is deasserted, the user interface FIFOs can accept
commands and data for storage. The init_calib_complete signal is asserted after the
memory initialization procedure and PHY calibration are complete, and the core can begin
to service client requests.
