X-Ref Target - Figure 4-22
Bank Selection
This feature allows the selection of bytes for the memory interface. Bytes can be selected
for different classes of memory signals, such as:
• Address and control signals
• Data signals
Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1
UG586 November 30, 2016
Chapter 4: LPDDR2 SDRAM Memory Interface Solution

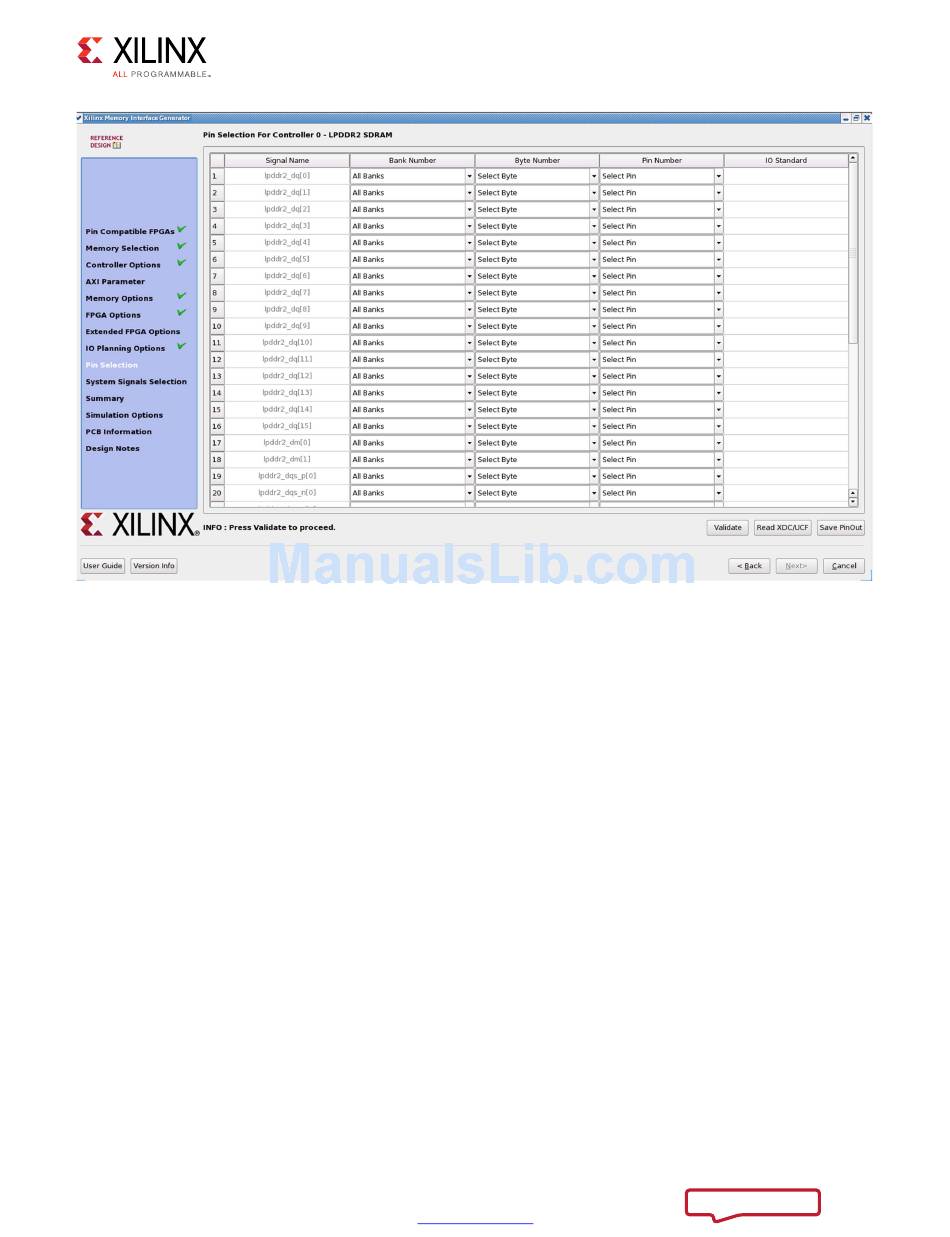

Figure 4-22: Pin/Bank Selection Mode
