QUICK START GUIDE

Zynq-7000 All Programmable SoC ZC702 Evaluation Kit

The Zynq

- 7000 All Programmable SoC ZC702 Evaluation Kit provides a platform for evaluating the Xilinx Zynq

-7000 AP SoC devices. The ZC702 kit contains the necessary hardware, tools, and IP to quickly evaluate and start

the development of your embedded system.

This guide provides a kit overview and step-by-step instructions to set up and configure the board, run the built-in

self-test (BIST), install the Xilinx tools, and redeem the license voucher.

ZC702 Evaluation Kit

HDMI Cable

2 USB Cables

(Mini-B and Micro-B)

Xilinx Vivado Design

Suite Installation DVD

For more information visit

xxxxxxxxxxxxXXXXXXXxxxxxxxXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

SD Card with

Reference

Design

www.xilinx.com/zc702.

Quick Start Guide

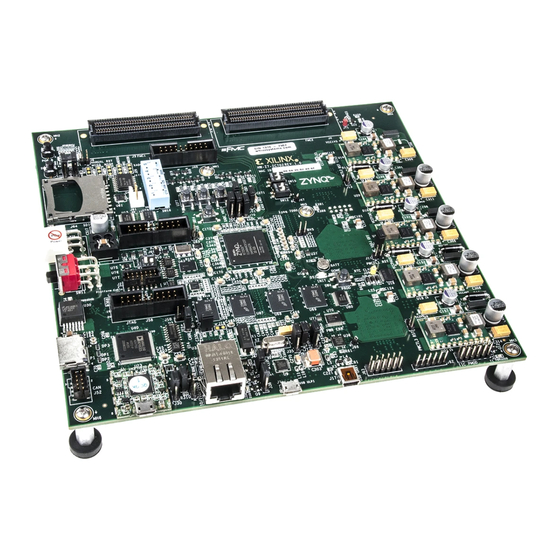

ZC702 Base

AMS101 Evaluation Card

Board

ZC702 EVALUATION KIT

Power

Supply

Ethernet

Crossover

Cable

Page 1 - 7000 All Programmable SoC ZC702 Evaluation Kit provides a platform for evaluating the Xilinx Zynq ® -7000 AP SoC devices. The ZC702 kit contains the necessary hardware, tools, and IP to quickly evaluate and start the development of your embedded system.
Page 2 USB-UART on your PC. below (00010). Instructions on installing the CP210X driver can be found at www.xilinx.com/kits/cp210x. Xilinx recommends using Tera Term for Windows terminal emulation and instructions for installing Tera Term can be found at www.xilinx.com/kits/teraterm. Note: If switches, jumpers, or FLASH images have been changed, please refer to www.xilinx.com/kits/zc702default.
Page 3 Terminal Display After the ZC702 board is configured, the text shown below appears in the terminal emulator window. Type the number or the letter associated with a listed option to run a test application. For example, type 2 to run the LED Test application.
Page 4 © Copyright 2014 Xilinx, Inc. Xilinx, the Xilinx logo, Artix, ISE, Kintex, Spartan, Virtex, Vivado, Zynq, and other designated brands included herein are trademarks of Xilinx in the United States and other countries. All other trademarks are the property of their respective owners.
