Figure 476. Data Path - ST STM32L4x6 Reference Manual

RM0351
Data path
The data path subunit transfers data to and from cards.
of the data path.
The card databus width can be programmed using the clock control register. If the 4-bit wide
bus mode is enabled, data is transferred at four bits per clock cycle over all four data signals
(SDMMC_D[3:0]). If the 8-bit wide bus mode is enabled, data is transferred at eight bits per
clock cycle over all eight data signals (SDMMC_D[7:0]). If the wide bus mode is not
enabled, only one bit per clock cycle is transferred over SDMMC_D0.
Depending on the transfer direction (send or receive), the data path state machine (DPSM)
moves to the Wait_S or Wait_R state when it is enabled:
• Send: the DPSM moves to the Wait_S state. If there is data in the transmit FIFO, the
DPSM moves to the Send state, and the data path subunit starts sending data to a
card.
• Receive: the DPSM moves to the Wait_R state and waits for a start bit. When it
receives a start bit, the DPSM moves to the Receive state, and the data path subunit
starts receiving data from a card.
Data path state machine (DPSM)
The DPSM operates at SDMMC_CK frequency. Data on the card bus signals is
synchronous to the rising edge of SDMMC_CK. The DPSM has six states, as shown in
Figure 477: Data path state machine
SD/SDIO/MMC card host interface (SDMMC)

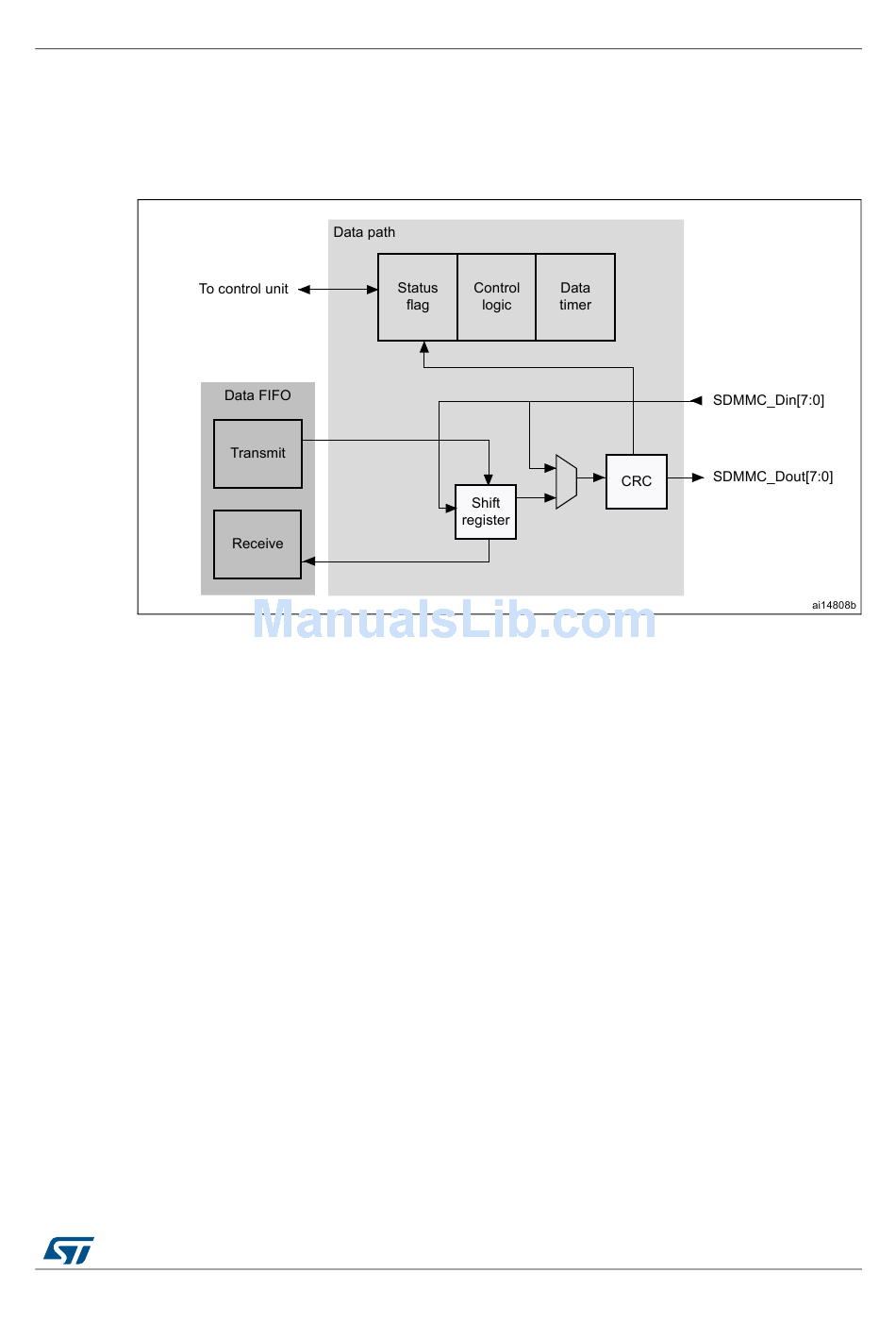

Figure 476. Data path

(DPSM).
DocID024597 Rev 3
Figure 476 shows a block diagram
1403/1693
1450
