RM0351
41.3

SDMMC functional description

The SDMMC consists of two parts:
• The SDMMC adapter block provides all functions specific to the MMC/SD/SD I/O card
such as the clock generation unit, command and data transfer.
•
The APB2 interface accesses the SDMMC adapter registers, and generates interrupt
and DMA request signals.
SD/SDIO/MMC card host interface (SDMMC)

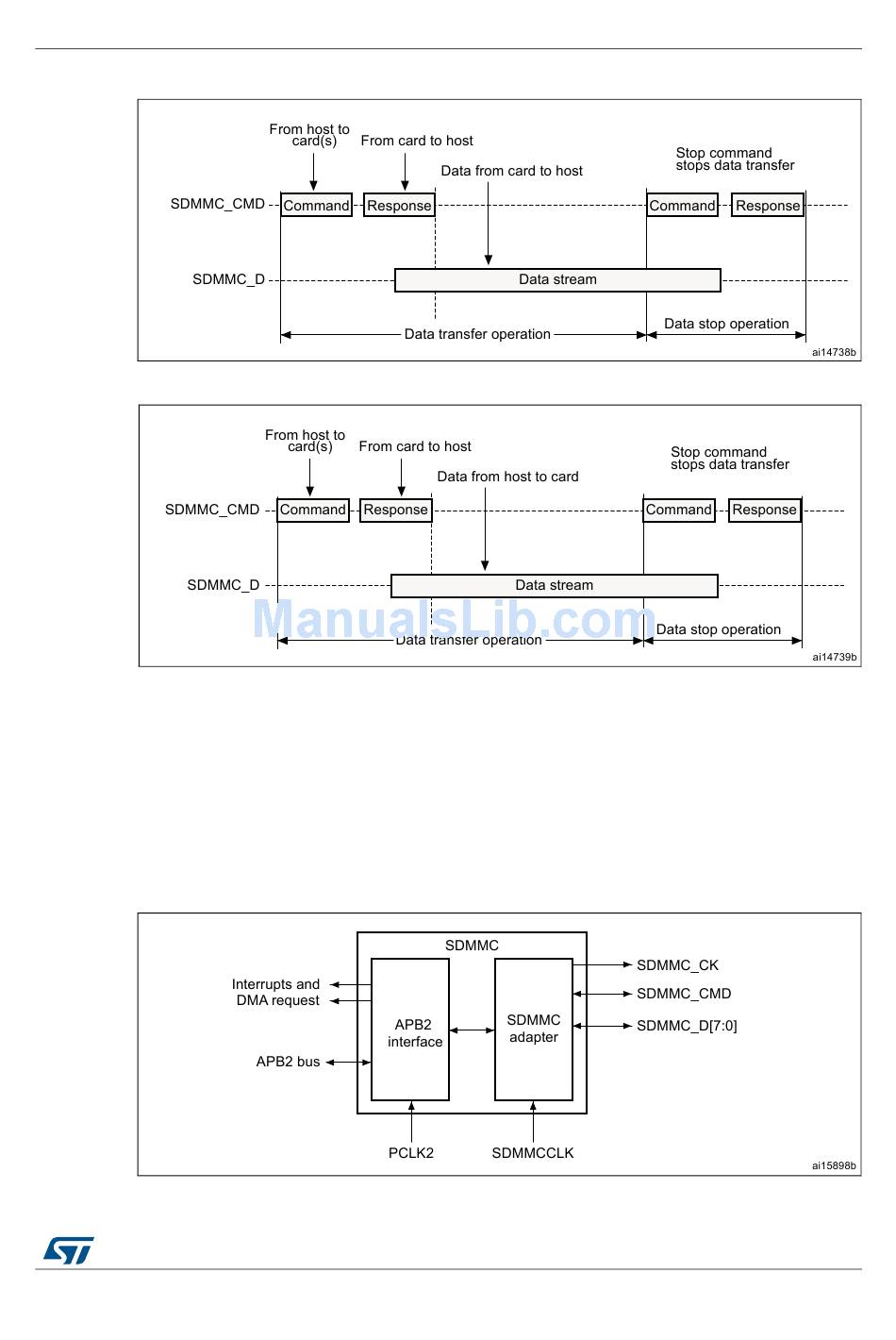

Figure 467. Sequential read operation

Figure 468. Sequential write operation

Figure 469. SDMMC block diagram

DocID024597 Rev 3 1395/1693
1450
