General-purpose and alternate-function I/Os (GPIOs and AFIOs)

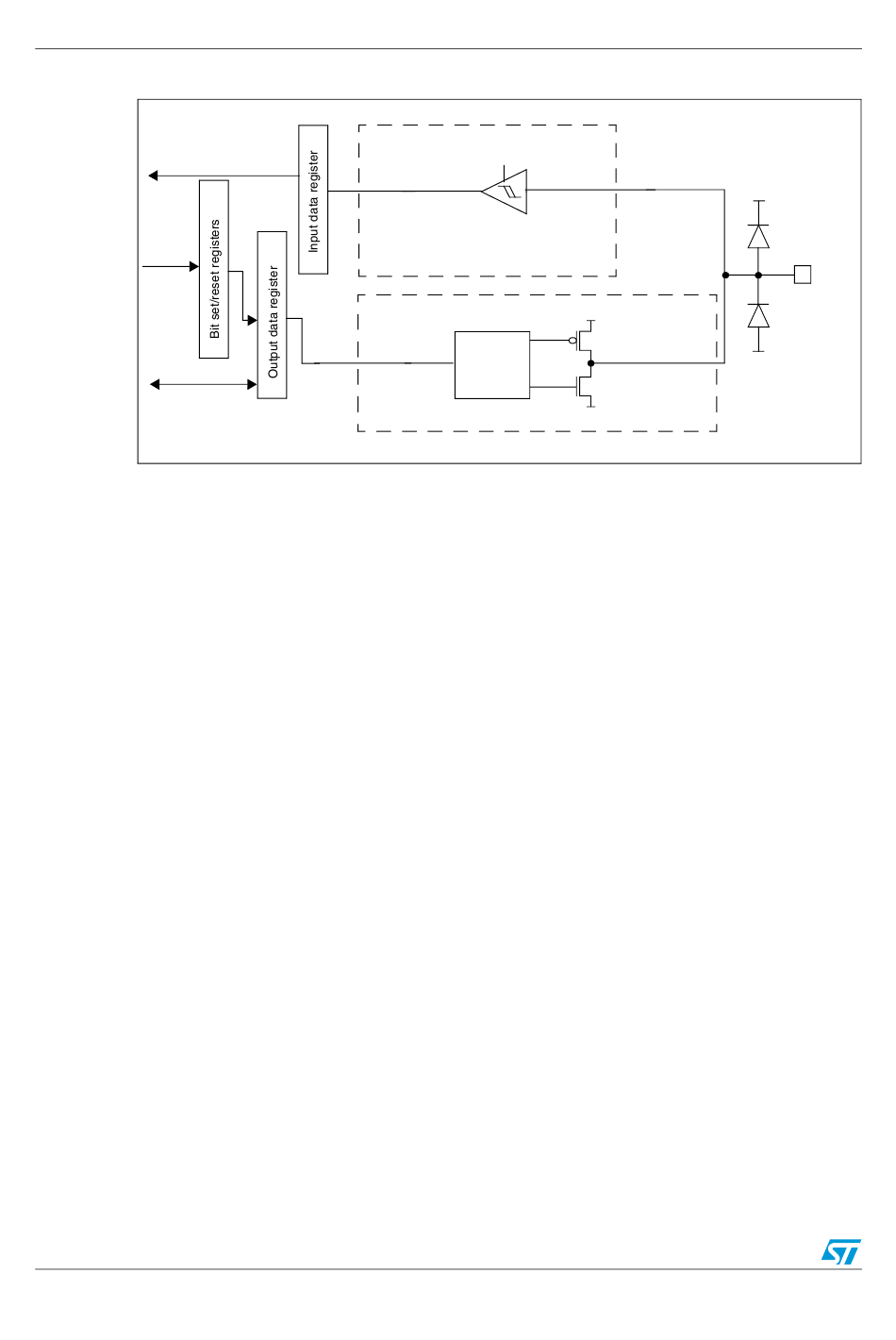

Figure 13. Output configuration

Read
Write
Read/write
1. V
DD_FT
7.1.9

Alternate function configuration

When the I/O Port is programmed as Alternate Function:
●
The Output Buffer is turned on in Open Drain or Push-Pull configuration
● The Output Buffer is driven by the signal coming from the peripheral (alternate function
out)
●
The Schmitt Trigger Input is activated
●
The weak pull-up and pull-down resistors are disabled.
●
The data present on the I/O pin is sampled into the Input Data Register every APB2
clock cycle
●
A read access to the Input Data Register gets the I/O state in open drain mode
●
A read access to the Output Data register gets the last written value in Push-Pull mode
The Figure 14 on page 103
Also, refer to
A set of Alternate Function I/O registers allow you to remap some alternate functions to
different pins. Refer to
