Figure 131. Control Circuit In Reset Mode - ST STM32F102 Series Reference Manual

Hide thumbs Also See for STM32F102 Series:

Table of Contents

Configure the timer in reset mode by writing SMS=100 in TIMx_SMCR register. Select

TI1 as the input source by writing TS=101 in TIMx_SMCR register.

Start the counter by writing CEN=1 in the TIMx_CR1 register.

The counter starts counting on the internal clock, then behaves normally until TI1 rising

edge. When TI1 rises, the counter is cleared and restarts from 0. In the meantime, the

trigger flag is set (TIF bit in the TIMx_SR register) and an interrupt request, or a DMA

request can be sent if enabled (depending on the TIE and TDE bits in TIMx_DIER register).

The following figure shows this behavior when the auto-reload register TIMx_ARR=0x36.

The delay between the rising edge on TI1 and the actual reset of the counter is due to the

resynchronization circuit on TI1 input.

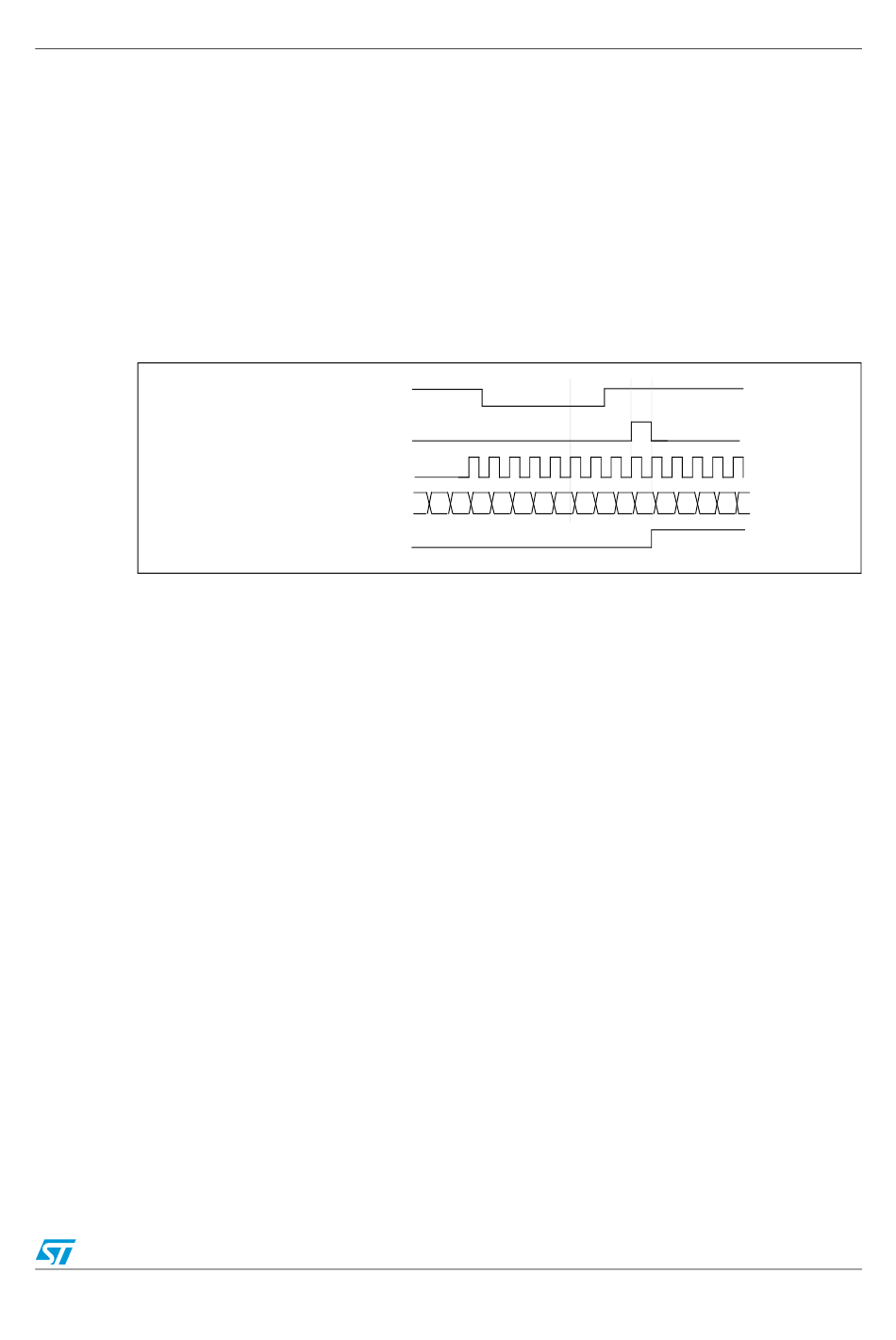

Figure 131. Control circuit in reset mode

Counter clock = CK_CNT = CK_PSC

Counter register

32 33 34 35 36

General-purpose timer (TIMx)

01 02 03 00 01 02 03
