Real-time clock (RTC)

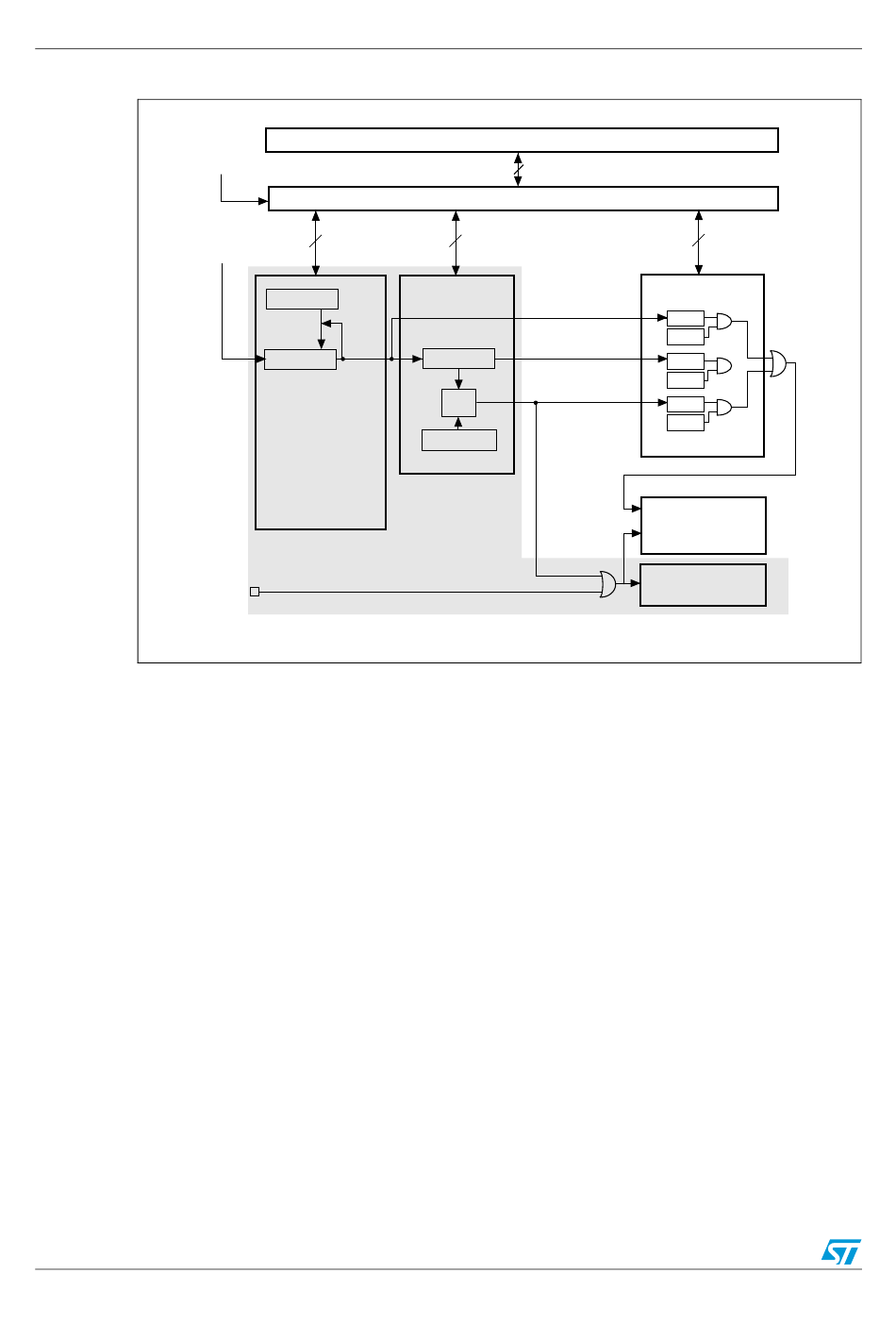

Figure 151. RTC simplified block diagram

344/690
PCLK1
RTCCLK
Backup domain
RTC_PRL
Reload
TR_CLK
RTC_DIV
rising
edge
RTC prescaler
powered in Standby
WKUP pin
APB1 bus
APB1 interface
RTC_Second
32-bit programmable
counter
RTC_Overflow
RTC_CNT
RTC_Alarm
=
RTC_ALR
powered in Standby
RTC_Alarm
WKP_STDBY
RM0008
not powered in Standby
RTC_CR
SECF
SECIE
OWF
OWIE
ALRF
ALRIE
not powered in Standby
NVIC interrupt
controller
not powered in Standby
exit
Standby mode
powered in Standby
ai14969
