RM0008
Bits 31:2 Reserved, always read as 0.
[1:0] PWRCTRL: Power supply control bits.
These bits are used to define the current functional state of the card clock:
00: Power-off: the clock to card is stopped.
01: Reserved
10: Reserved power-up
11: Power-on: the card is clocked.
Note: After a data write, data cannot be written to this register for seven HCLK clock periods.
19.9.2

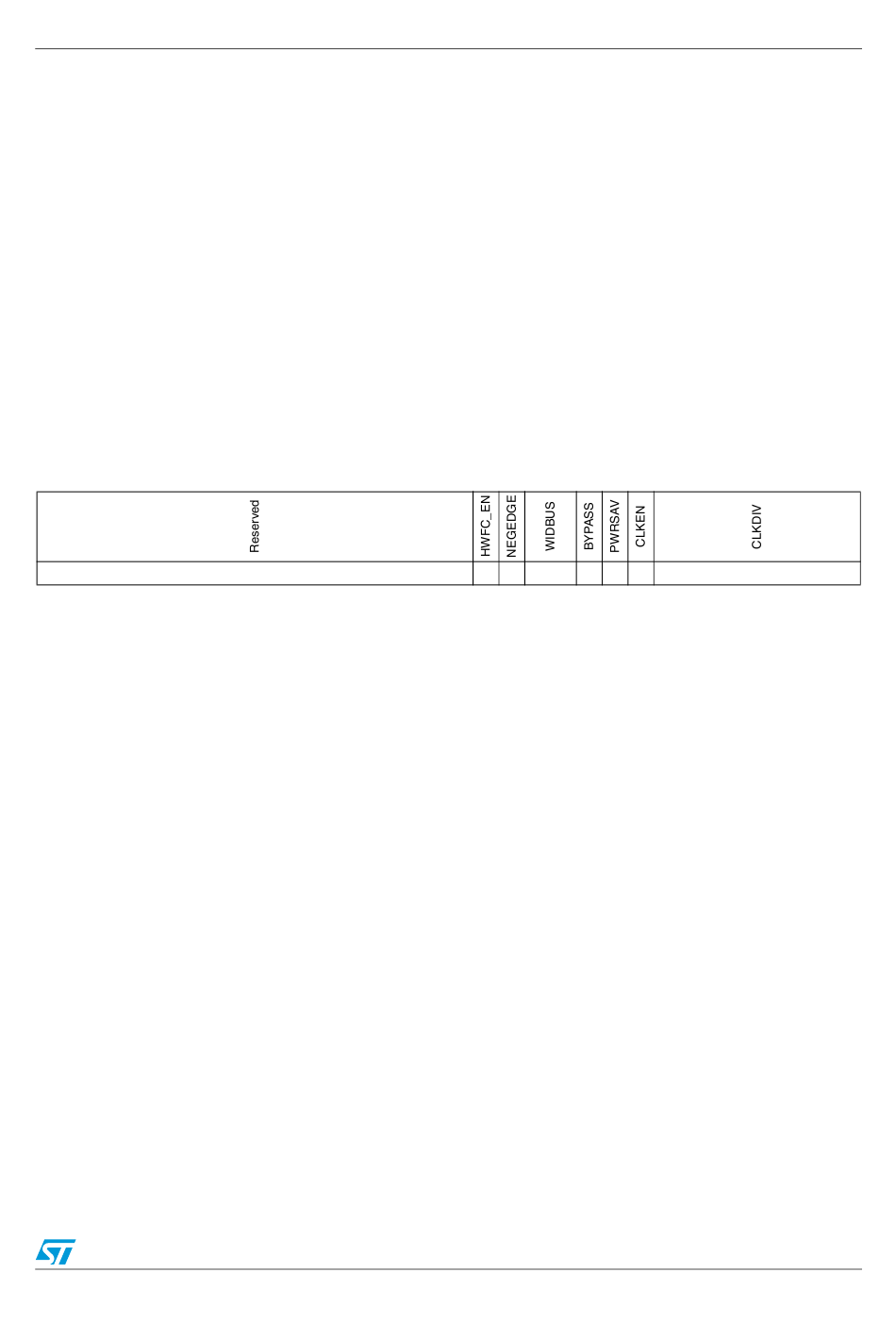

SDI Clock Control Register (SDIO_CLKCR)

Address offset: 0x04
Reset value: 0x0000 0000
The SDIO_CLKCR register controls the SDIO_CK output clock.
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10
Bits 31:15 Reserved, always read as 0.
Bit 14 HWFC_EN: HW Flow Control enable
0b: HW Flow Control is disabled
1b: HW Flow Control is enabled
When HW Flow Control is enabled, the meaning of the TXFIFOE and RXFIFOF interrupt signals,
please see SDIO Status register definition in
Bit 13 NEGEDGE:SDIO_CK dephasing selection bit
0b: SDIO_CK generated on the rising edge of the master clock SDIOCLK
1b: SDIO_CK generated on the falling edge of the master clock SDIOCLK
Bits 12:11 WIDBUS: Wide bus mode enable bit
00: Default bus mode: SDIO_D0 used.
01: 4-wide bus mode: SDIO_D[3:0] used.
10: 8-wide bus mode: SDIO_D[7:0] used
Bit 10 BYPASS: Clock divider bypass enable bit
0: Disable bypass: SDIOCLK is divided according to the CLKDIV value before driving the SDIO_CK
output signal.
1: Enable bypass: SDIOCLK directly drives the SDIO_CK output signal.
r
9 8
r/w r/w r/w r/w r/w r/w
Section 19.9.11.
SDIO interface (SDIO)
7 6 5 4 3 2 1
r/w
453/690
