Advanced-control timers (TIM1&TIM8)

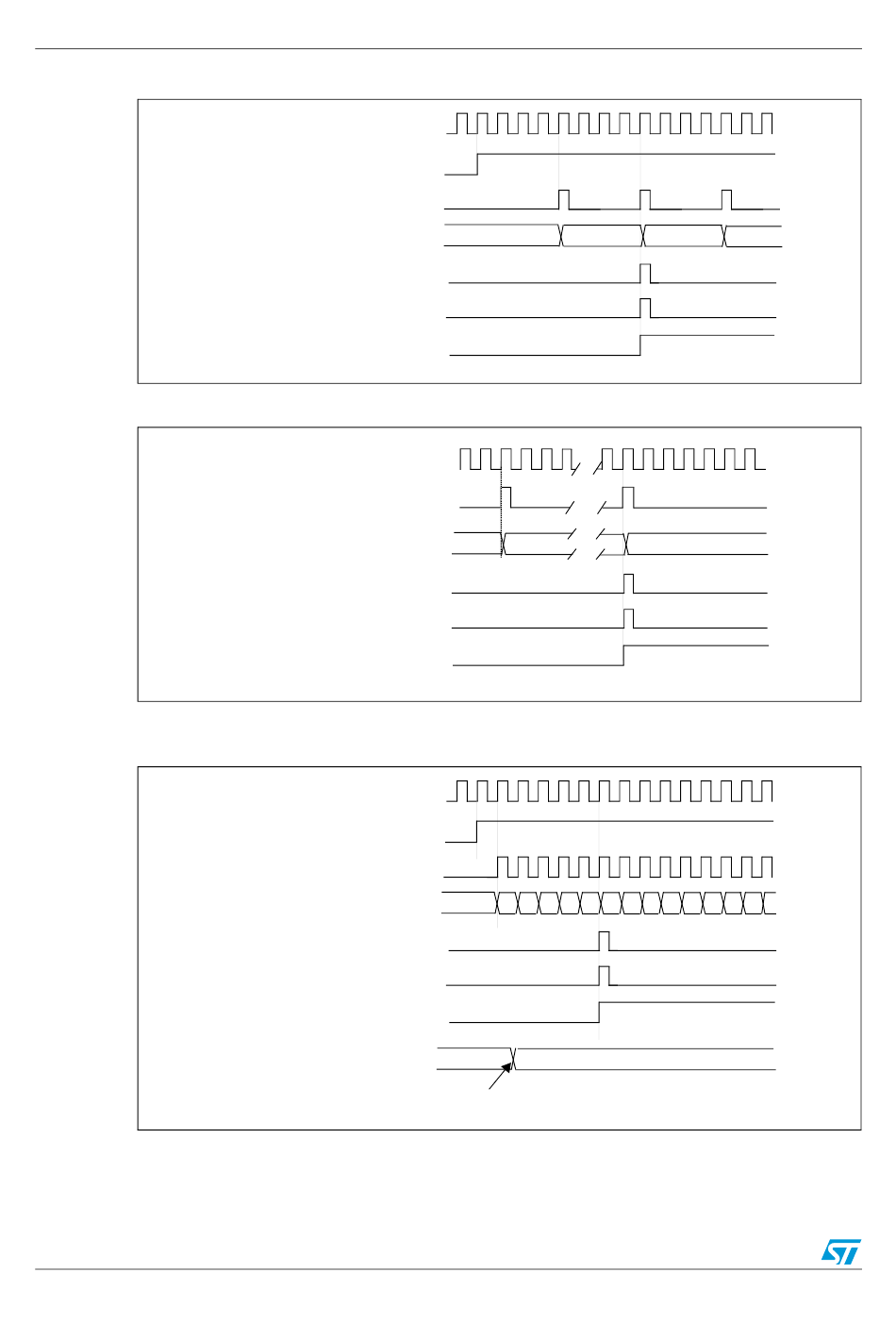

Figure 52. Counter timing diagram, internal clock divided by 4

Figure 53. Counter timing diagram, internal clock divided by N

Figure 54. Counter timing diagram, update event when ARPE=0 (TIMx_ARR not
212/690
CK_PSC
CNT_EN
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)
CK_PSC
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)
preloaded)
CK_PSC
CEN
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)
Auto-reload register
Write a new value in TIMx_ARR
0035
0036
1F 20
31 32 33 34 35 36 00 01 02 03 04 05 06 07
FF
