Figure 190. Packet Buffer Areas With Examples Of Buffer Description Table Locations - ST STM32F102 Series Reference Manual

USB full speed device interface (USB)

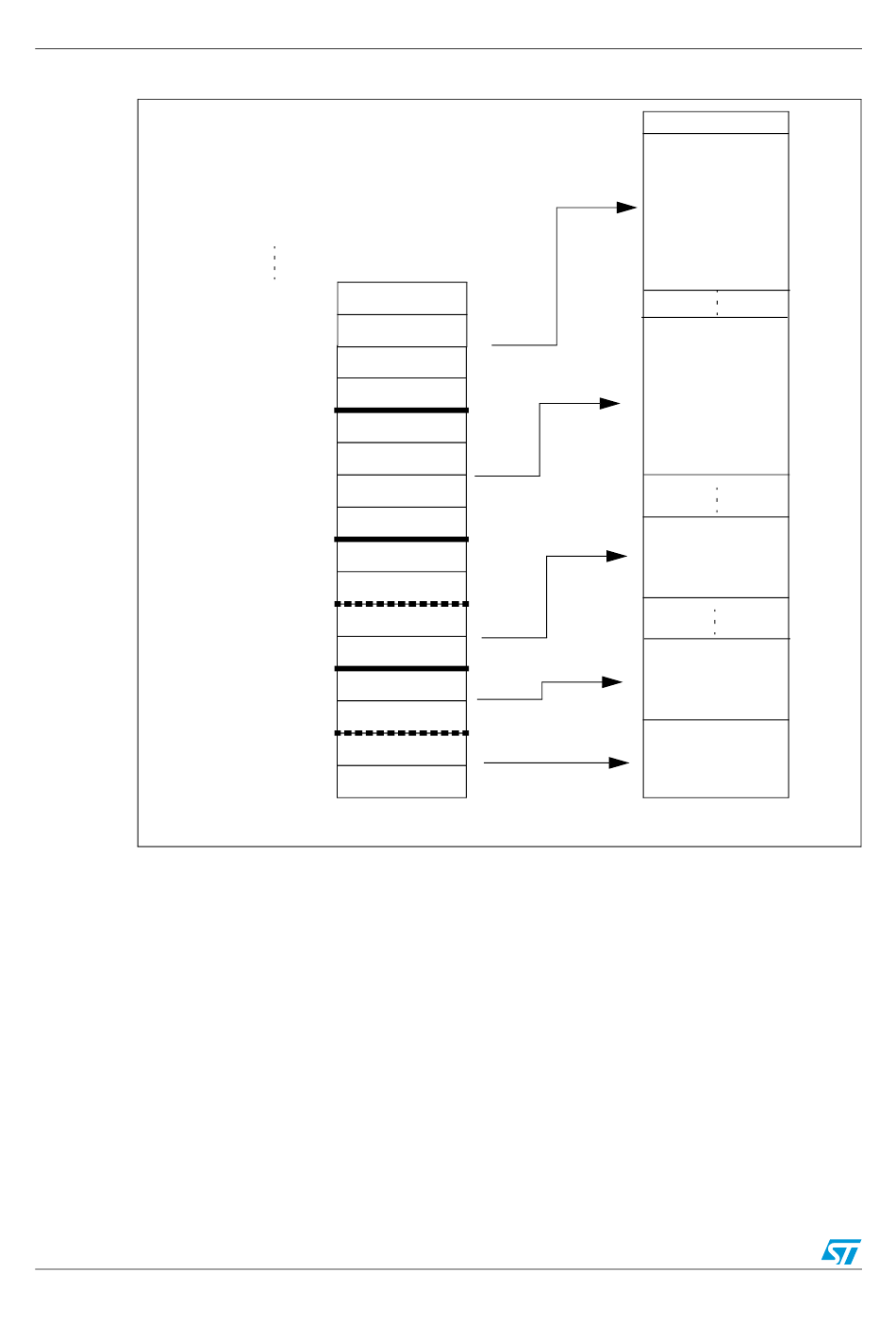

Figure 190. Packet buffer areas with examples of buffer description table locations

Each packet buffer is used either during reception or transmission starting from the bottom.
The USB peripheral will never change the contents of memory locations adjacent to the
allocated memory buffers; if a packet bigger than the allocated buffer length is received
(buffer overrun condition) the data will be copied to the memory only up to the last available
location.
Endpoint initialization
The first step to initialize an endpoint is to write appropriate values to the
ADDRn_TX/ADDRn_RX registers so that the USB peripheral finds the data to be
transmitted already available and the data to be received can be buffered. The EP_TYPE
bits in the USB_EPnR register must be set according to the endpoint type, eventually using
the EP_KIND bit to enable any special required feature. On the transmit side, the endpoint
must be enabled using the STAT_TX bits in the USB_EPnR register and COUNTn_TX must
be initialized. For reception, STAT_RX bits must be set to enable reception and
COUNTn_RX must be written with the allocated buffer size using the BL_SIZE and
474/690
0001_1110 (1E)
COUNT3_TX_1
0001_1100 (1C)
ADDR3_TX_1
0001_1010 (1A)
COUNT3_TX_0
0001_1000 (18)
ADDR3_TX_0
0001_0110 (16)
COUNT2_RX_1
0001_0100 (14)
ADDR2_RX_1
0001_0010 (12)
COUNT2_RX_0
0001_0000 (10)
ADDR2_RX_0
0000_1110 (0E) COUNT1_RX
0000_1100 (0C) ADDR1_RX
0000_1010 (0A) COUNT1_TX
0000_1000 (08) ADDR1_TX
0000_0110 (06) COUNT0_RX
0000_0100 (04) ADDR0_RX
0000_0010 (02) COUNT0_TX
0000_0000 (00) ADDR0_TX
Buffer description table locations
RM0008
Buffer for
double-buffered
IN Endpoint 3
Buffer for
double-buffered
OUT Endpoint 2
Transmission
buffer for
single-buffered
Endpoint 1
Reception buffer
for
Endpoint 0
Transmission
buffer for
Endpoint 0
Packet buffers
