Debug support (DBG)

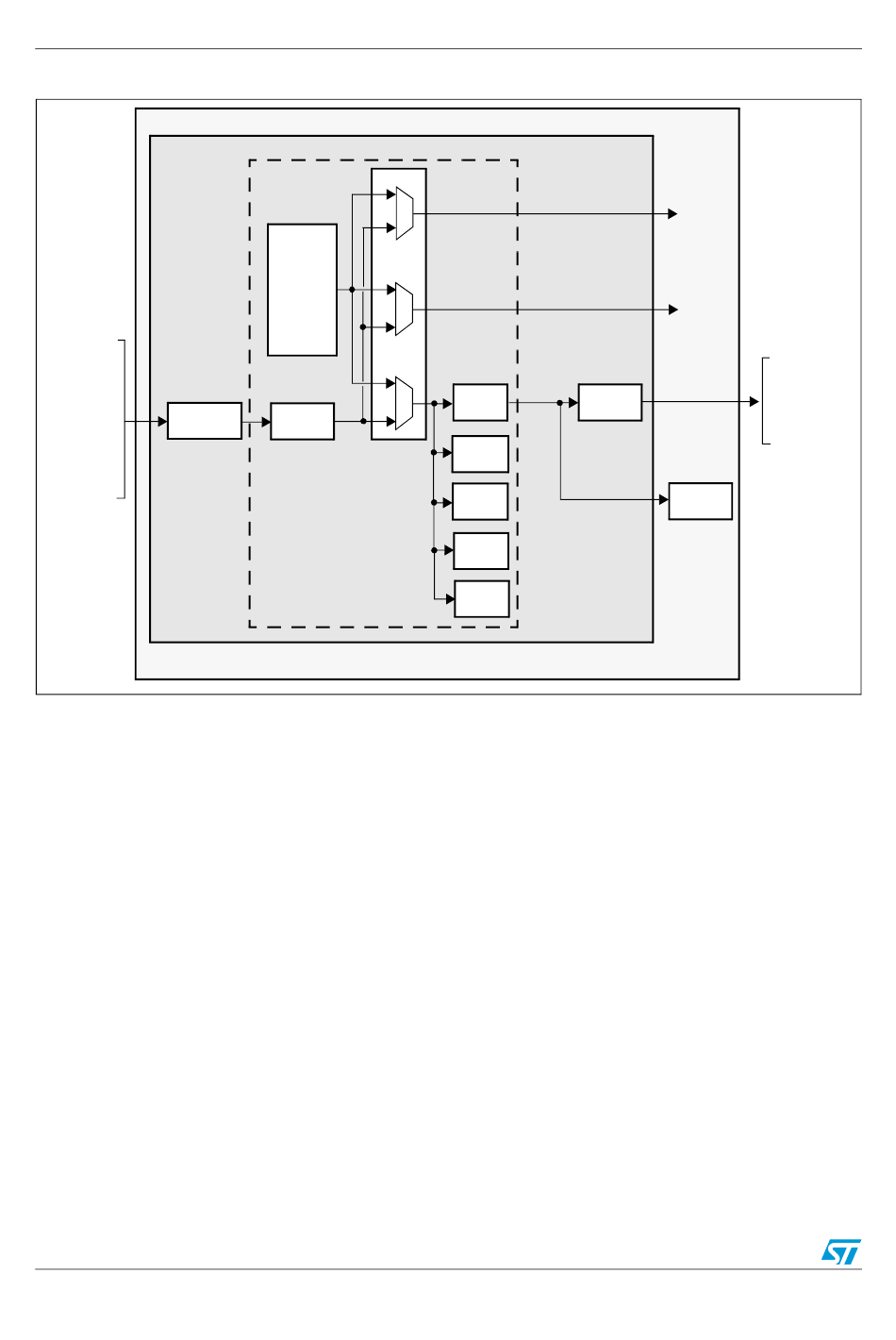

Figure 258. Block diagram of STM32F10xxx-level and Cortex-M3-level debug support

STM32F10x debug support
Cortex-M3 debug support
JTMS/
SWDIO
JTDI
JTDO/
SWJ-DP
TRACESWO
JNTRST
JTCK/
SWCLK
Note: The debug features embedded in the Cortex-M3 core are a subset of the ARM CoreSight
Design Kit.
The ARM Cortex-M3 core provides integrated on-chip debug support. It is comprised of:
●
SWJ-DP: Serial wire / JTAG debug port
●
AHP-AP: AHB access
●
ITM: Instrumentation trace macrocell
●
FPB: Flash patch breakpoint
●
DWT: Data watchpoint trigger
●
TPUI: Trace port unit interface (available on larger packages, where the corresponding
pins are mapped)
It also includes debug features dedicated to STM32F10xxx:
●
Flexible debug pinout assignment
● MCU debug box (support for low-power modes, control over peripheral clocks, etc.)
Note: For further information on debug functionality supported by the ARM Cortex-M3 core, refer
to the Cortex-M3 r1p1 Technical Reference Manual (TRM) and to the CoreSight Design Kit
r1p0 TRM.
