Flexible static memory controller (FSMC)
●
Write FIFO, 16 words long, each word 32 bits wide. This makes it possible to write to
slow memories and free the AHB quickly for other transactions. If a new transaction is
started to the FSMC, first the FIFO is drained
The FSMC registers that define the external device type and associated characteristics are
usually set at boot time and do not change until the next reset or power-up. However, it is
possible to change the settings at any time.
18.2

Block diagram

The FSMC consists of four main blocks:
● The AHB interface (including the FSMC configuration registers)
●
The NOR Flash/PSRAM controller
● The NAND Flash/PC Card controller
●
The external device interface
The block diagram is shown in

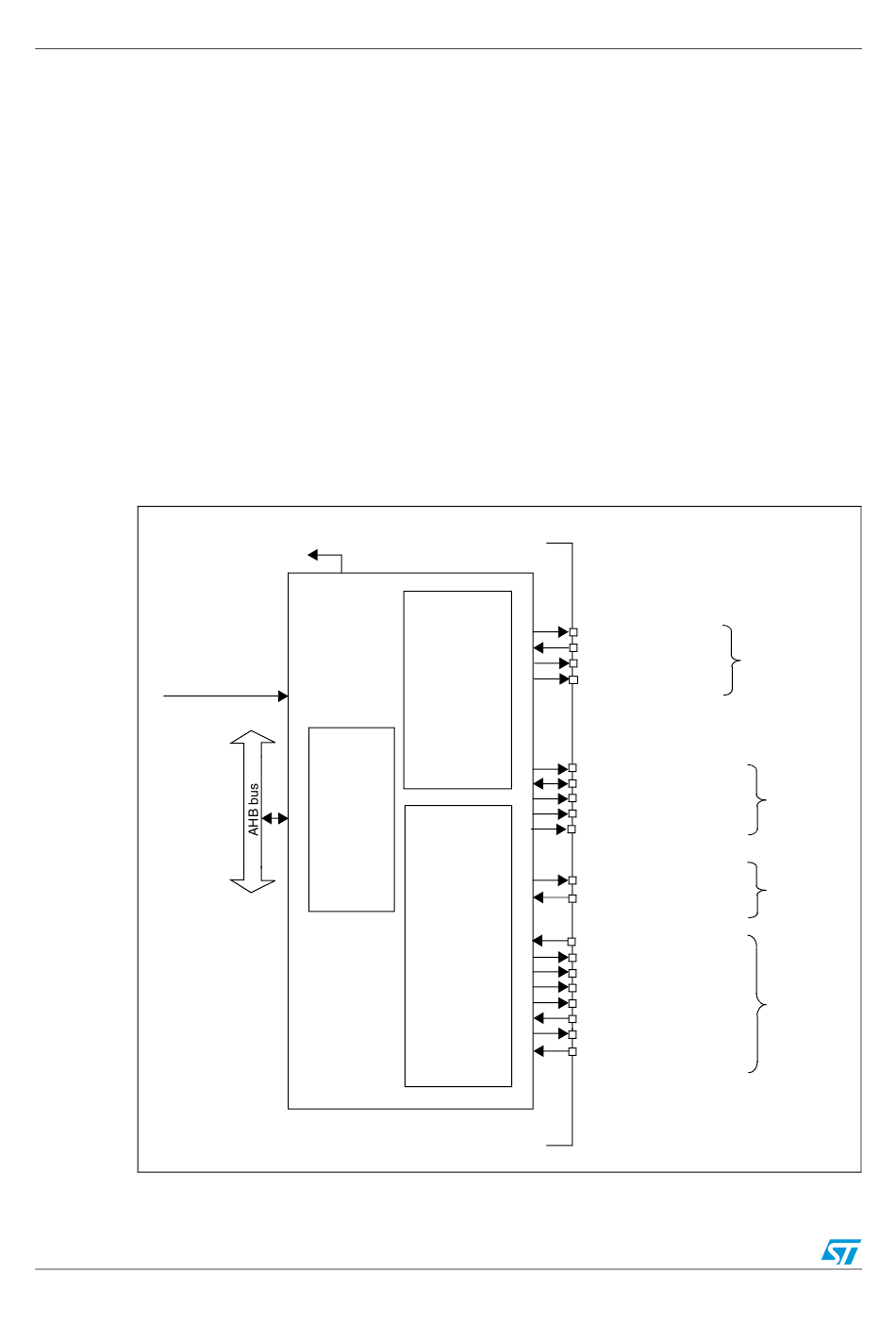

Figure 157. FSMC block diagram

From clock
controller
366/690
FSMC interrupt to NVIC
HCLK
Configuration
Registers
Figure 157.
NOR
memory
controller
NAND/PC Card
memory
controller
FSMC_NE[4:1]
FSMC_NL (or NADV)
FSMC_NBL[1:0]
FSMC_CLK
FSMC_A[25:0]
FSMC_D[15:0]
FSMC_NOE
FSMC_NWE
FSMC_NWAIT
FSMC_NCE[3:2]
FSMC_INT[3:2]
FSMC_INTR
FSMC_NCE4_1
FSMC_NCE4_2
FSMC_NIORD
FSMC_NIOWR
FSMC_NIOS16
FSMC_NREG
FSMC_CD
RM0008
NOR/PSRAM
signals
Shared
signals
NAND
signals
PC Card
signals
ai14718b
