Flexible static memory controller (FSMC)

Mode C - NOR Flash - OE toggling

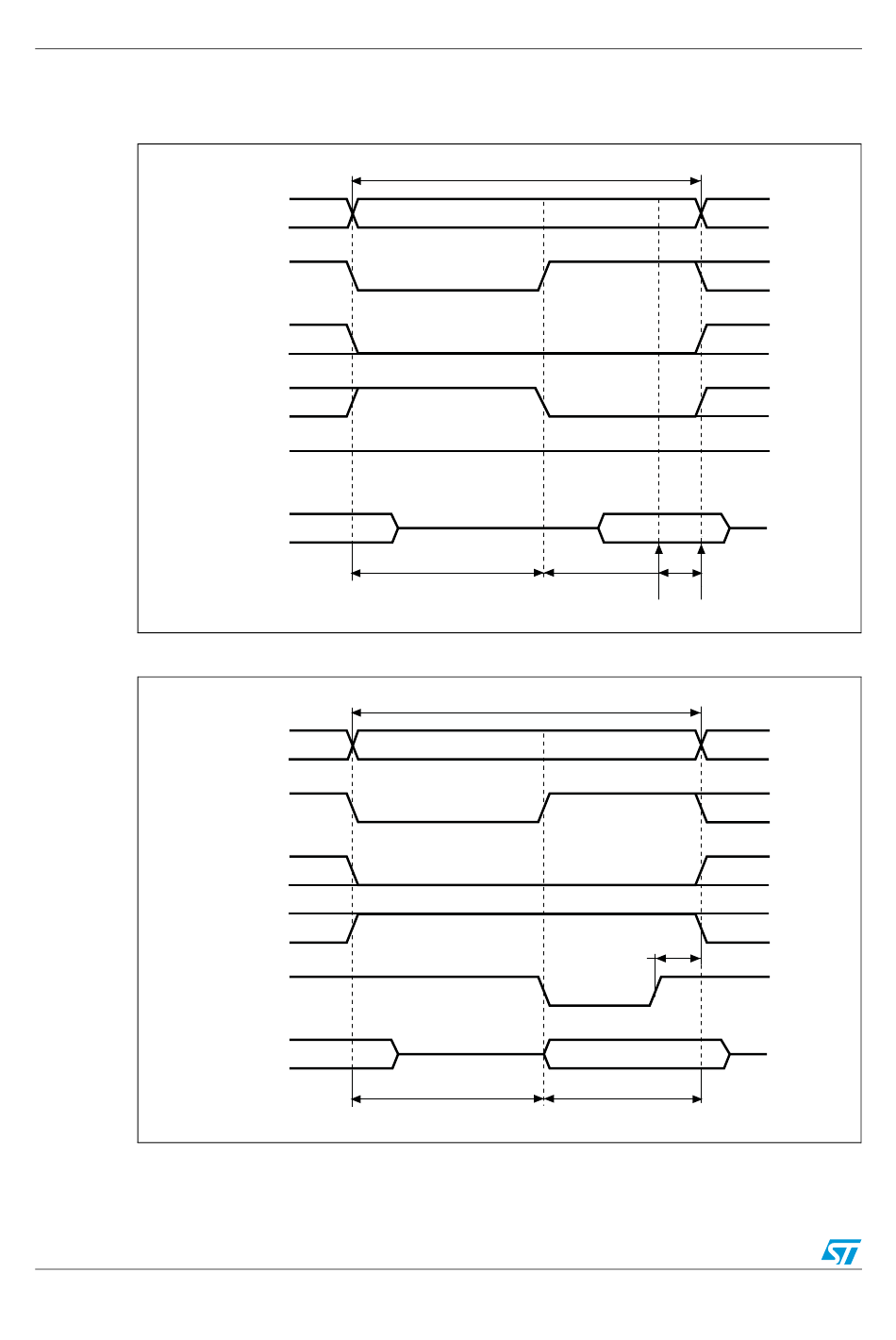

Figure 166. ModeC read accesses

The differences compared with mode1 are the toggling of NOE and NADV and the

independent read and write timings.

Memory transaction

(DATAST + 1)

Data sampled

Memory transaction

data driven by FSMC

(DATAST + 1)
