bxCAN interrupts

Four interrupt vectors are dedicated to bxCAN. Each interrupt source can be independently
enabled or disabled by means of the CAN Interrupt Enable Register (CAN_IER).
•
The transmit interrupt can be generated by the following events:
–
–
–
•
The FIFO 0 interrupt can be generated by the following events:
–
–
–

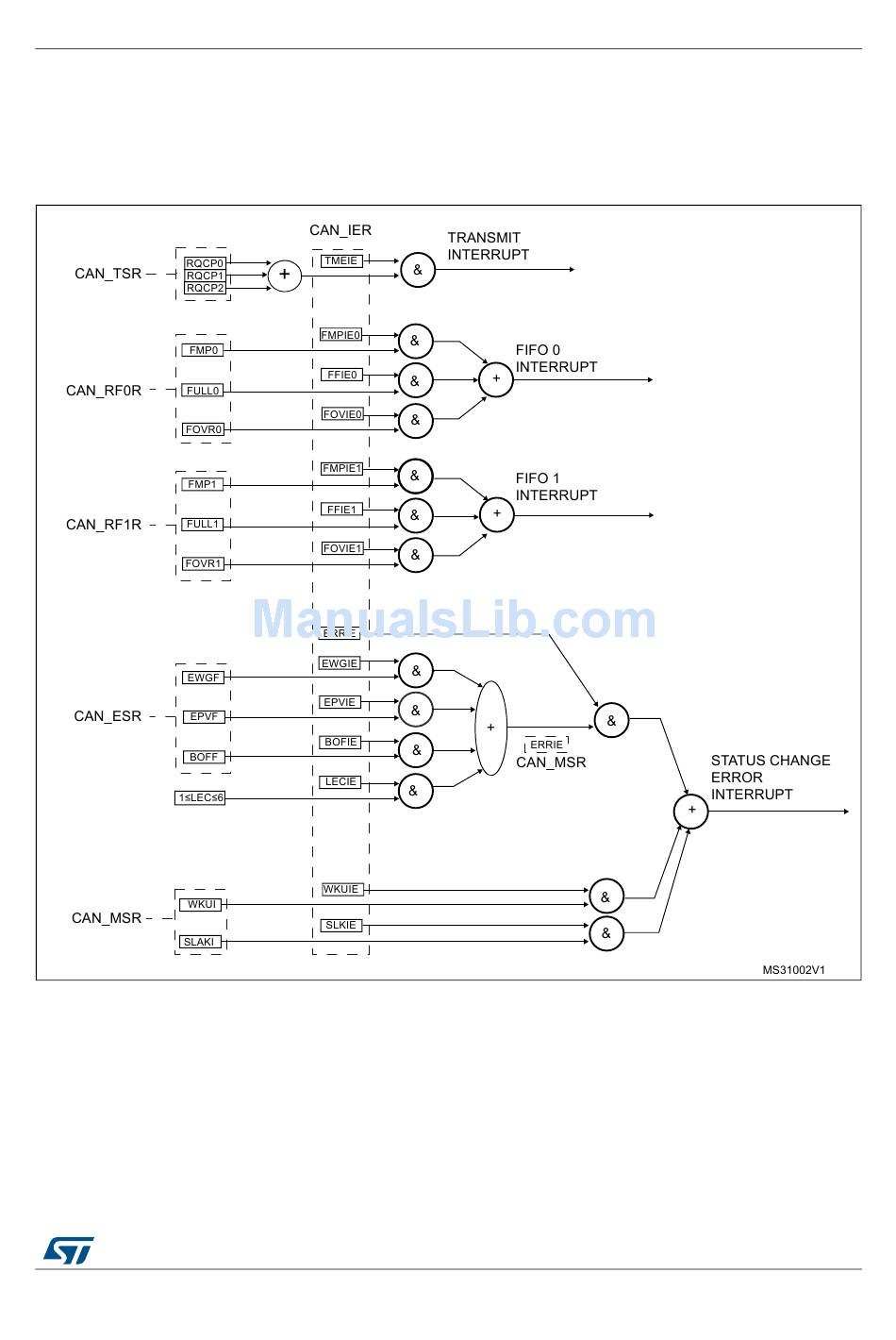

Figure 491. Event flags and interrupt generation

Transmit mailbox 0 becomes empty, RQCP0 bit in the CAN_TSR register set.
Transmit mailbox 1 becomes empty, RQCP1 bit in the CAN_TSR register set.
Transmit mailbox 2 becomes empty, RQCP2 bit in the CAN_TSR register set.
Reception of a new message, FMP0 bits in the CAN_RF0R register are not '00'.
FIFO0 full condition, FULL0 bit in the CAN_RF0R register set.
FIFO0 overrun condition, FOVR0 bit in the CAN_RF0R register set.
