ST STM32L4+ Series Reference Manual page 1383

RM0432 General-purpose timers (TIM15/TIM16/TIM17)

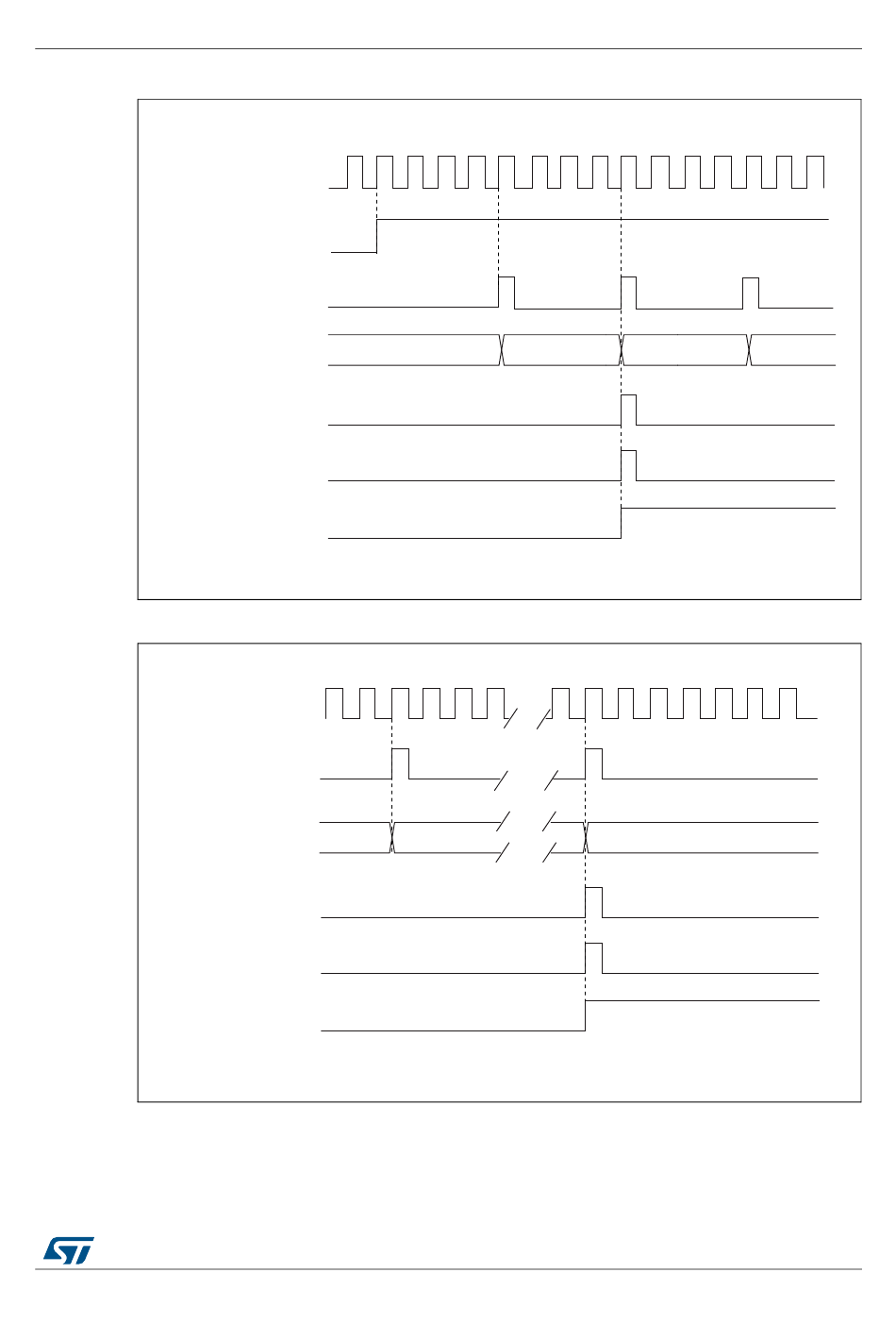

Figure 399. Counter timing diagram, internal clock divided by 4
CK_PSC
CNT_EN
Timerclock = CK_CNT
Counter register 0035
0036 0000 0001
Counter overflow
Update event (UEV)
Update interrupt flag
(UIF)
MS31080V2
Figure 400. Counter timing diagram, internal clock divided by N
CK_PSC
Timerclock = CK_CNT
1F
Counter register 20 00
Counter overflow
Update event (UEV)
Update interrupt flag
(UIF)
MS31081V2
RM0432 Rev 6 1383/2301
1463
