45.3.1 WWDG block diagram
pclk
45.3.2 Enabling the watchdog
The watchdog is always disabled after a reset. It is enabled by setting the WDGA bit in the
WWDG_CR register, then it cannot be disabled again except by a reset.
45.3.3 Controlling the down-counter
This down-counter is free-running, counting down even if the watchdog is disabled. When
the watchdog is enabled, the T6 bit must be set to prevent generating an immediate reset.
The T[5:0] bits contain the number of increments that represent the time delay before the
watchdog produces a reset. The timing varies between a minimum and a maximum value
due to the unknown status of the prescaler when writing to the WWDG_CR register (see
Figure 455). The
window: to prevent a reset, the down-counter must be reloaded when its value is lower than
the window register value and greater than 0x3F.
watchdog process.
Note: The T6 bit can be used to generate a software reset (the WDGA bit is set and the T6 bit is
cleared).
45.3.4 How to program the watchdog timeout
Use the formula in
Warning:

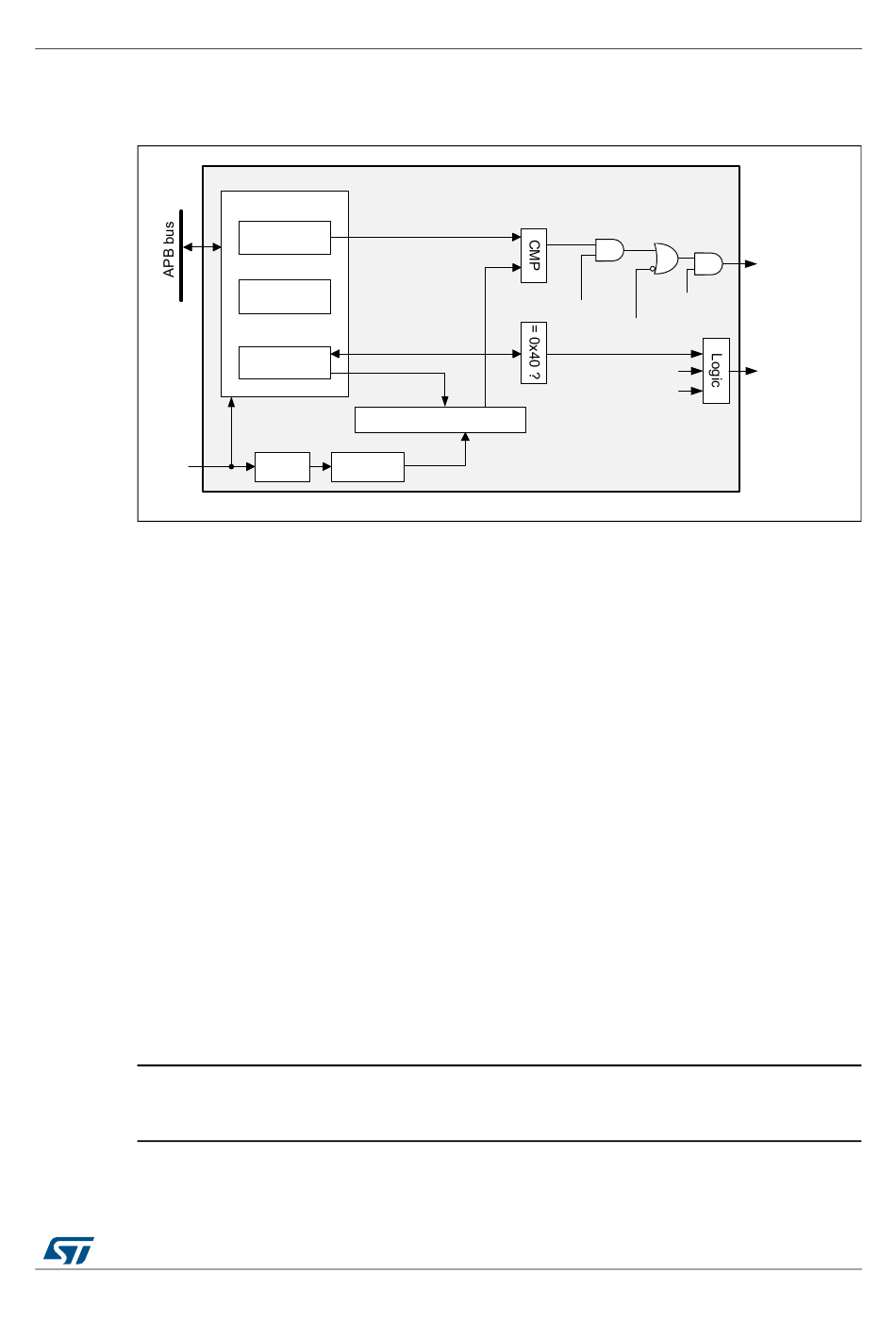

Figure 454. Watchdog block diagram
Register interface
W[6:0]
WWDG_CFR
WWDG_SR
readback
WWDG_CR
T[6:0]
preload
7-bit DownCounter (CNT)
WDGTB
÷ 4096 ÷ 2
WWDG configuration register (WWDG_CFR)
Figure 455 to calculate the WWDG timeout.
When writing to the WWDG_CR register, always write 1 in the
T6 bit to avoid generating an immediate reset.
RM0432 Rev 6
System window watchdog (WWDG)
CMP = 1 when
T[6:0] > W[6:0]
Write to WWDG_CR
T[6:0]
cnt_out
Figure 455
WWDG
wwdg_out_rst
WDGA
T6
EWI wwdg_it
EWIF
contains the high limit of the
describes the window
1541/2301
