Serial peripheral interface (SPI)
1.
Interrupt the receive flow by disabling SPI (SPE=0) in the specific time window while
the last data frame is ongoing.
2.
Wait until BSY=0 (the last data frame is processed).
3.
Read data until FRLVL[1:0] = 00 (read all the received data).
Note:
If packing mode is used and an odd number of data frames with a format less than or equal
to 8 bits (fitting into one byte) has to be received, FRXTH must be set when FRLVL[1:0] =
01, in order to generate the RXNE event to read the last odd data frame and to keep good
FIFO pointer alignment.
Data packing
When the data frame size fits into one byte (less than or equal to 8 bits), data packing is
used automatically when any read or write 16-bit access is performed on the SPIx_DR
register. The double data frame pattern is handled in parallel in this case. At first, the SPI
operates using the pattern stored in the LSB of the accessed word, then with the other half
stored in the MSB.
handling. Two data frames are sent after the single 16-bit access the SPIx_DR register of
the transmitter. This sequence can generate just one RXNE event in the receiver if the
RXFIFO threshold is set to 16 bits (FRXTH=0). The receiver then has to access both data
frames by a single 16-bit read of SPIx_DR as a response to this single RXNE event. The
RxFIFO threshold setting and the following read access must be always kept aligned at the
receiver side, as data can be lost if it is not in line.
A specific problem appears if an odd number of such "fit into one byte" data frames must be
handled. On the transmitter side, writing the last data frame of any odd sequence with an 8-
bit access to SPIx_DR is enough. The receiver has to change the Rx_FIFO threshold level
for the last data frame received in the odd sequence of frames in order to generate the
RXNE event.
SPIx_DR
0x04 0x0A
16-bit access when write to data register
SPI_DR= 0x040A when TxE=1
Communication using DMA (direct memory addressing)
To operate at its maximum speed and to facilitate the data register read/write process
required to avoid overrun, the SPI features a DMA capability, which implements a simple
request/acknowledge protocol.
1872/2301
Figure 539
provides an example of data packing mode sequence

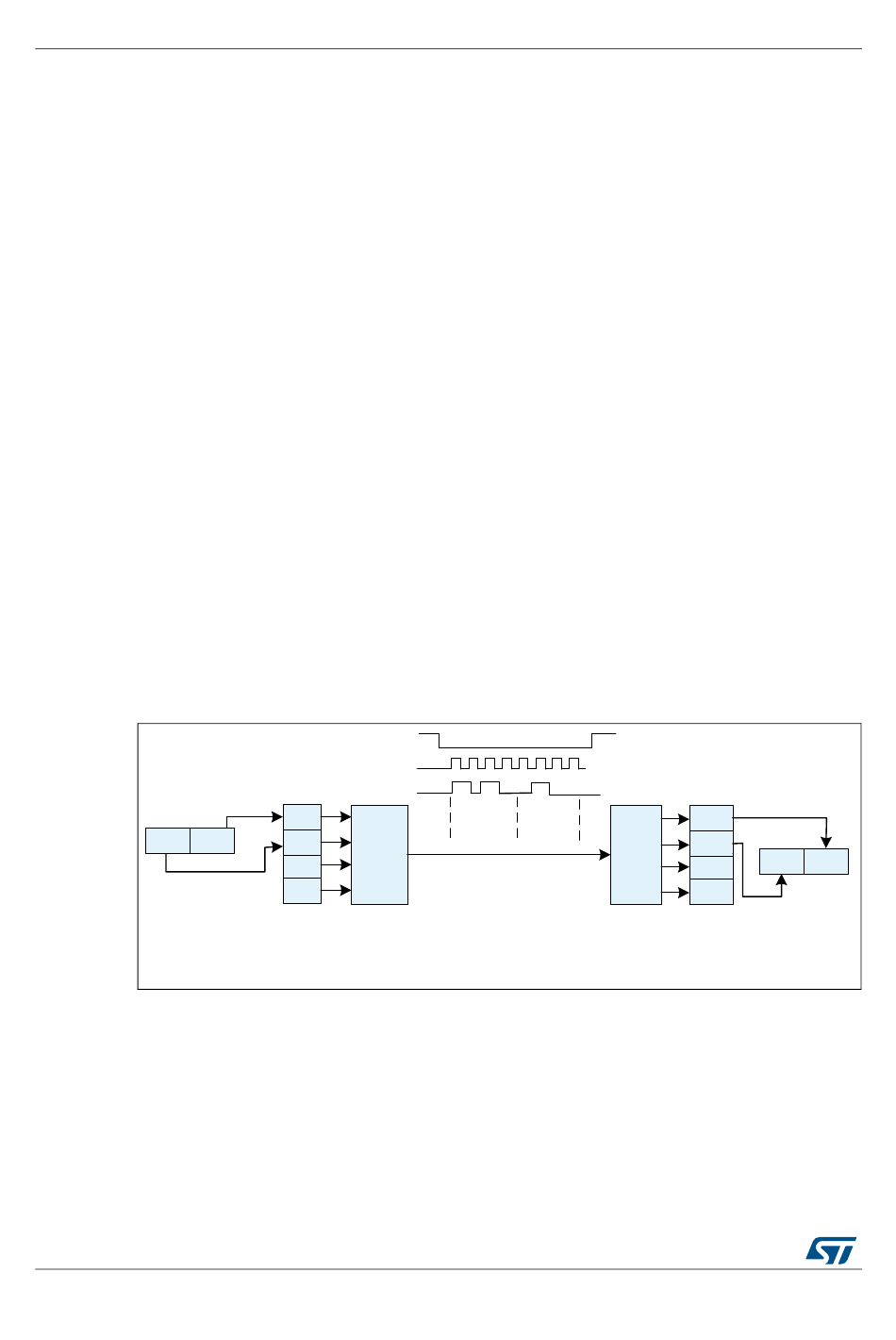

Figure 539. Packing data in FIFO for transmission and reception
NSS
SCK
TXFIFO
MOSI
0x0A
SPI fsm
0x04
& shift
RM0432 Rev 6
0x0A
0x04
SPI fsm
& shift
16-bit access when read from data register
SPI_DR= 0x040A when RxNE=1
RM0432
RXFIFO
SPIx_DR
0x0A
0x04
0x04 0x0A
MS19590V1
