Goodrive350-19 Series VFD for Crane
Commissioning guidelines
Winding turns of outermost layer
Full layer winding turns
P93.14
P93.13
P93.09
Encoder
P93.15
Lifting motor
Upward limit
position
P93.12
Rope
droop
length
P94.05
P93.11
P93.17
P93.18
Downward
limit position
Ground

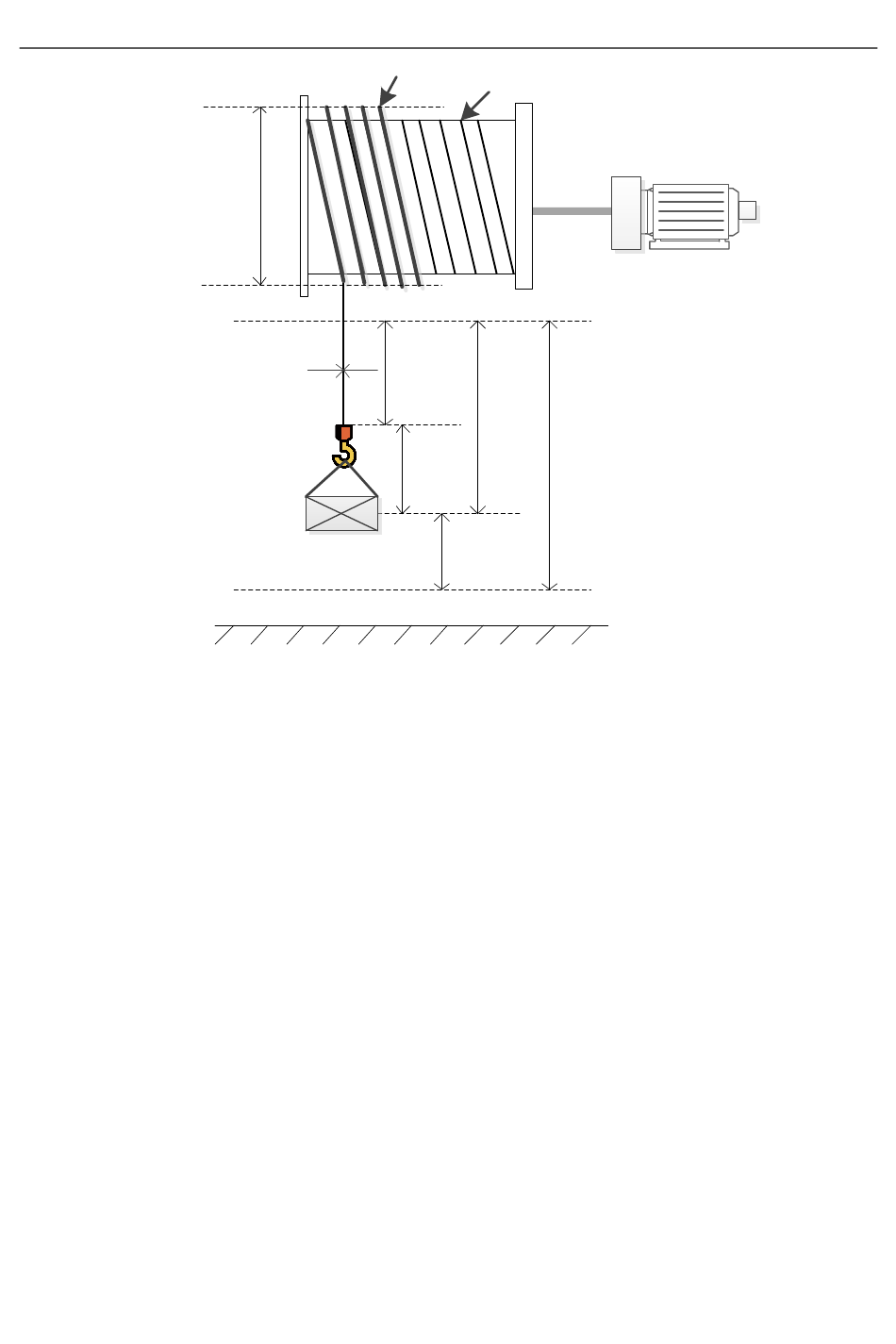

Figure 5-6 Internal measuring (motor encoder), without pulleys
