Goodrive350-19 Series VFD for Crane
Function
Name
code
Description

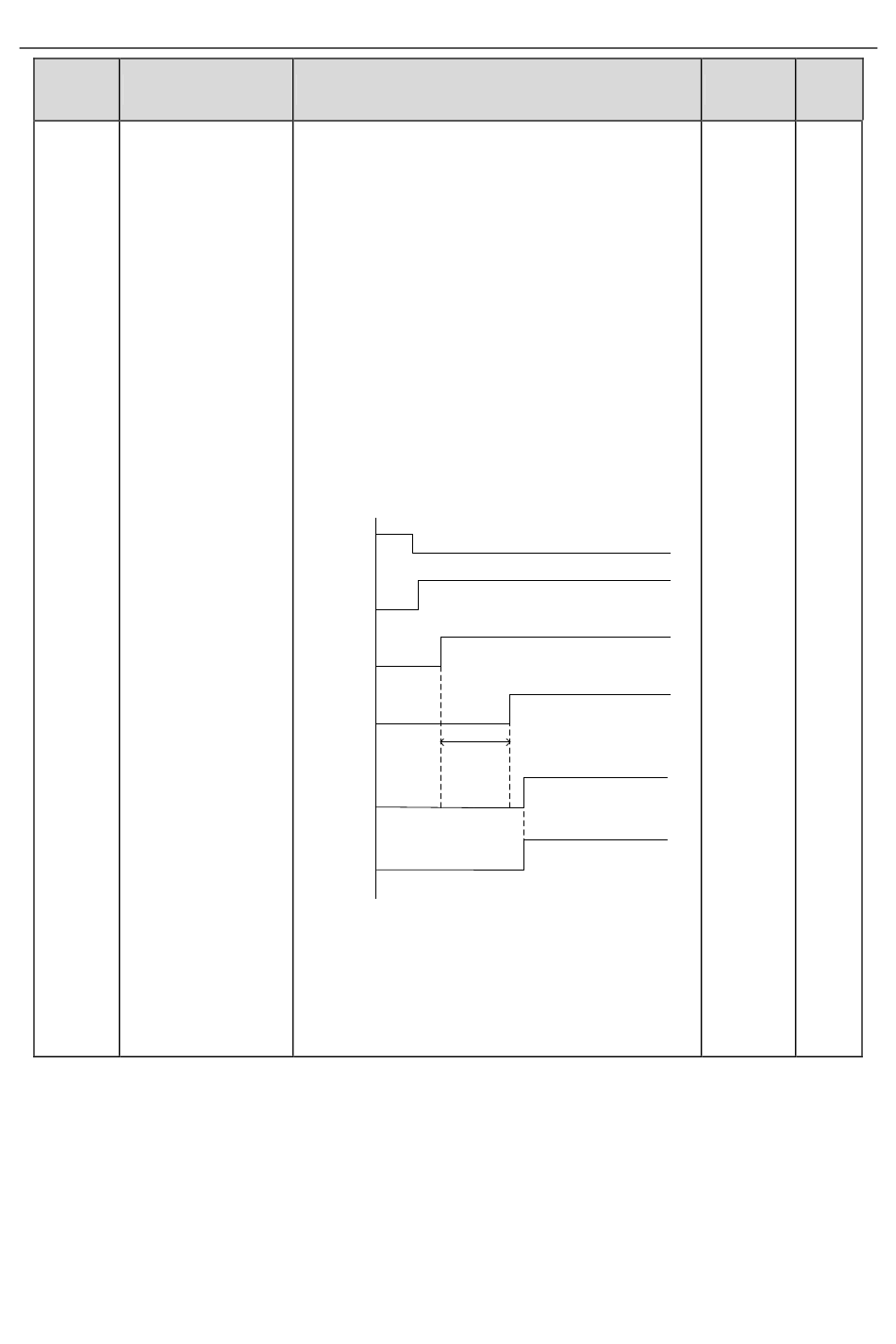

signal detection takes effect, if both the zero
position signal and running command signal are
detected, the operating lever zero position fault
STC is reported. If the running command is
given during zero position detection, the VFD
does not respond. If both the zero position
signal and running command signal still exist
after zero position detection, the operating lever
zero position fault STC is also reported. If the
zero position signal is removed suddenly during
zero position detection, the VFD does not
respond to the running command since zero
position detection is incomplete.
VFD running
Run
status
Enabling zero
position
detection
S terminal
zero position
input signal
Zero
position
detection
P91.07
FWD/REV
command
Normal
VFD fault
status
After the VFD stops, the VFD starts zero
position detection. When the zero position
detection delay is reached, if the detection finds
that AI2 is greater than 1.00V, the analog speed
reference deviation fault AdE is reported.
-312-
Stop
Enable
With zero
position signal
input
Zero position is
valid
STC fault
Function parameters
Default Modify
