A.5.5 PROFINET communication card (EC-TX509C)
The terminal CN2 adopts standard RJ45 interfaces, which are in the dual design, and the two RJ45
interfaces are not distinguished from each other and can be interchangeably inserted. They are
arranged as follows:
Pin
1
2
3
4
5
6
7
8

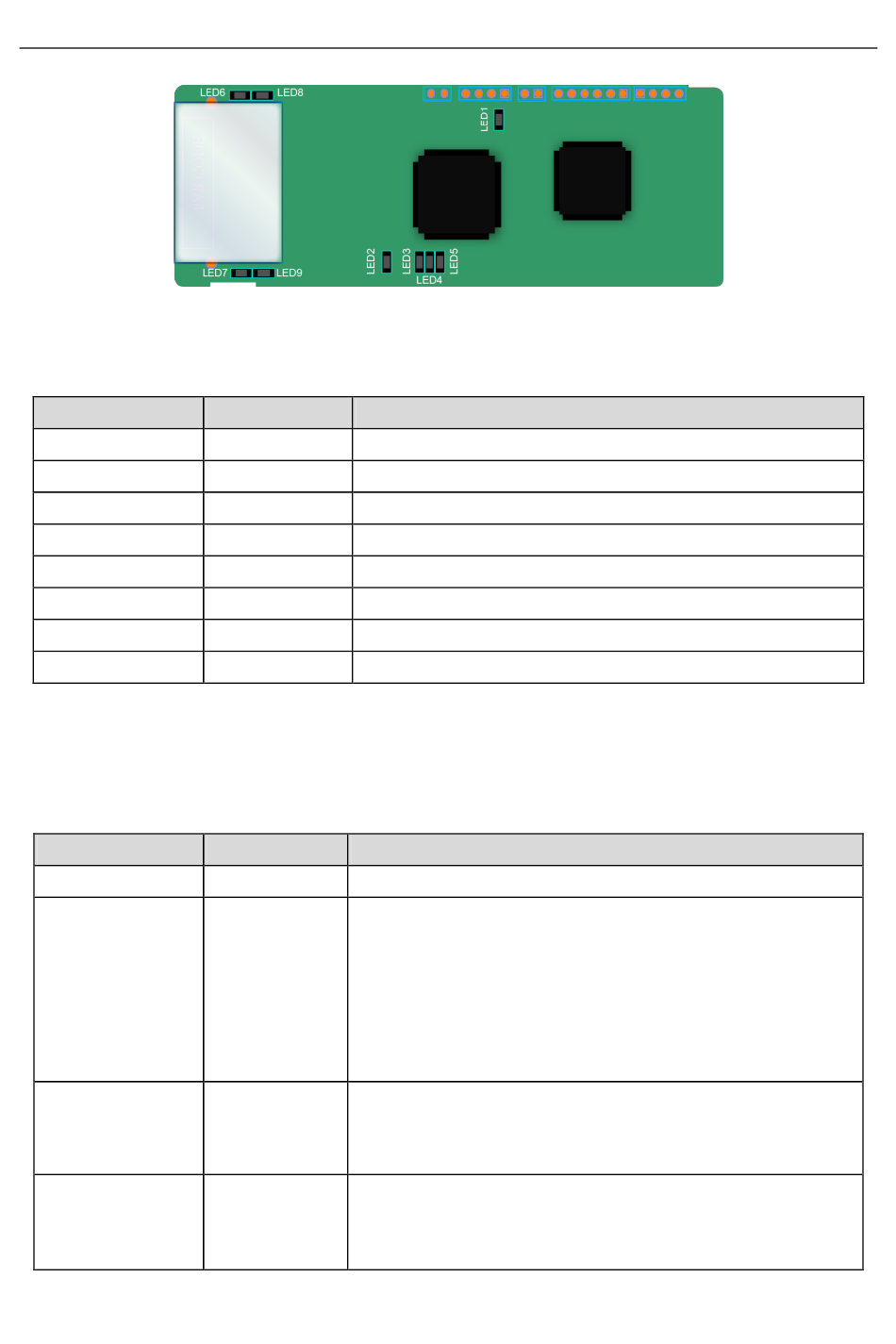

Indicator definition:
The PROFINET communication card has 9 indicators, among which LED1 is the power indicator,
LED2–5 are the communication status indicators of the communication card, and LED6–9 are the
status indicators of the network port.
Indicator
LED1
LED2
(Bus status
indicator)
LED3
(System fault
indicator)
LED4
(Slave ready
indicator)
Name
TX+
TX-
RX+
n/c
n/c
RX-
n/c
n/c
Color
Green 3.3V power indicator
On: No network connection
Blinks: The connection to the PROFINET controller through
a network cable is OK, but the communication is not
Red
established.
Off: Communication with the PROFINET controller has been
established.
On: PROFINET diagnosis exists.
Green
Off: No PROFINET diagnosis.
On: TPS-1 protocol stack has started.
Green Blinks: TPS-1 waits for MCU initialization.
Off: TPS-1 protocol stack does not start.
Description
Transmit Data+
Transmit Data-
Receive Data+
Not connected
Not connected
Receive Data-
Not connected
Not connected
Function
