Goodrive350-19 Series VFD for Crane
C.1 What this chapter contains
This chapter provides VFD dimensions, which use millimeter (mm) as the unit.
C.2 LED keypad

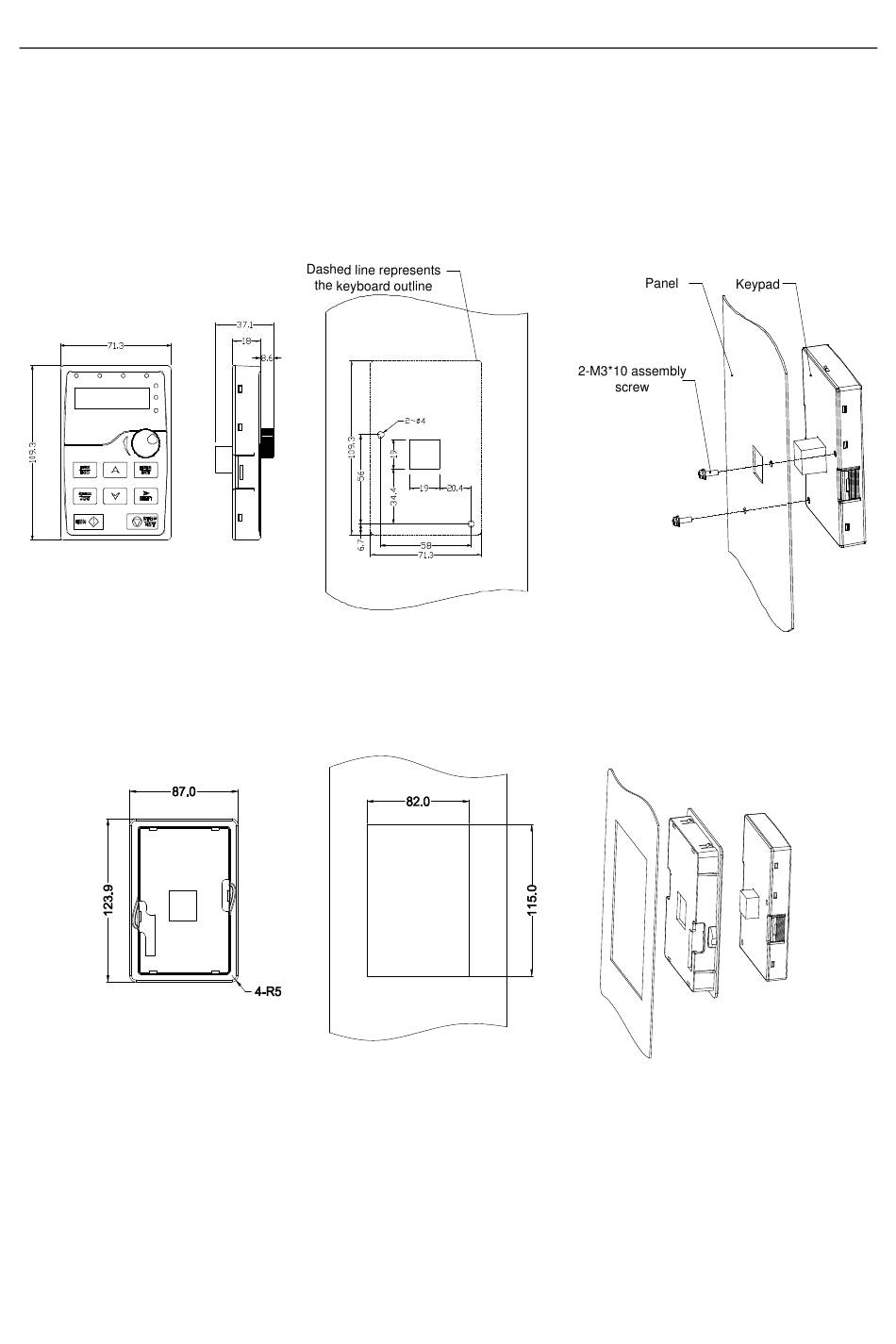

C.2.1 Structure diagram
C.2.2 Keypad mounting bracket
Keypad installation bracket
Figure C-1 (Optional) Keypad installation bracket for 380V 1.5–315kW and 660V 22–630kW models
Note:

If you need install the keypad externally (that is, on another position rather than on the VFD), you
can use M3 screws to fix the keypad, or you can use the keypad installation bracket to install the
keypad.
Appendix C Dimension drawings
Opening sizes for installing the keypad
without a bracket
Installation dimensions
-465-
Dimension drawings
