Goodrive350-19 Series VFD for Crane

4.2.7 Tilted installation

Note: During tilted installation, it is a must to ensure the air inlet duct and air outlet duct are

separated from each other to avoid mutual interference.

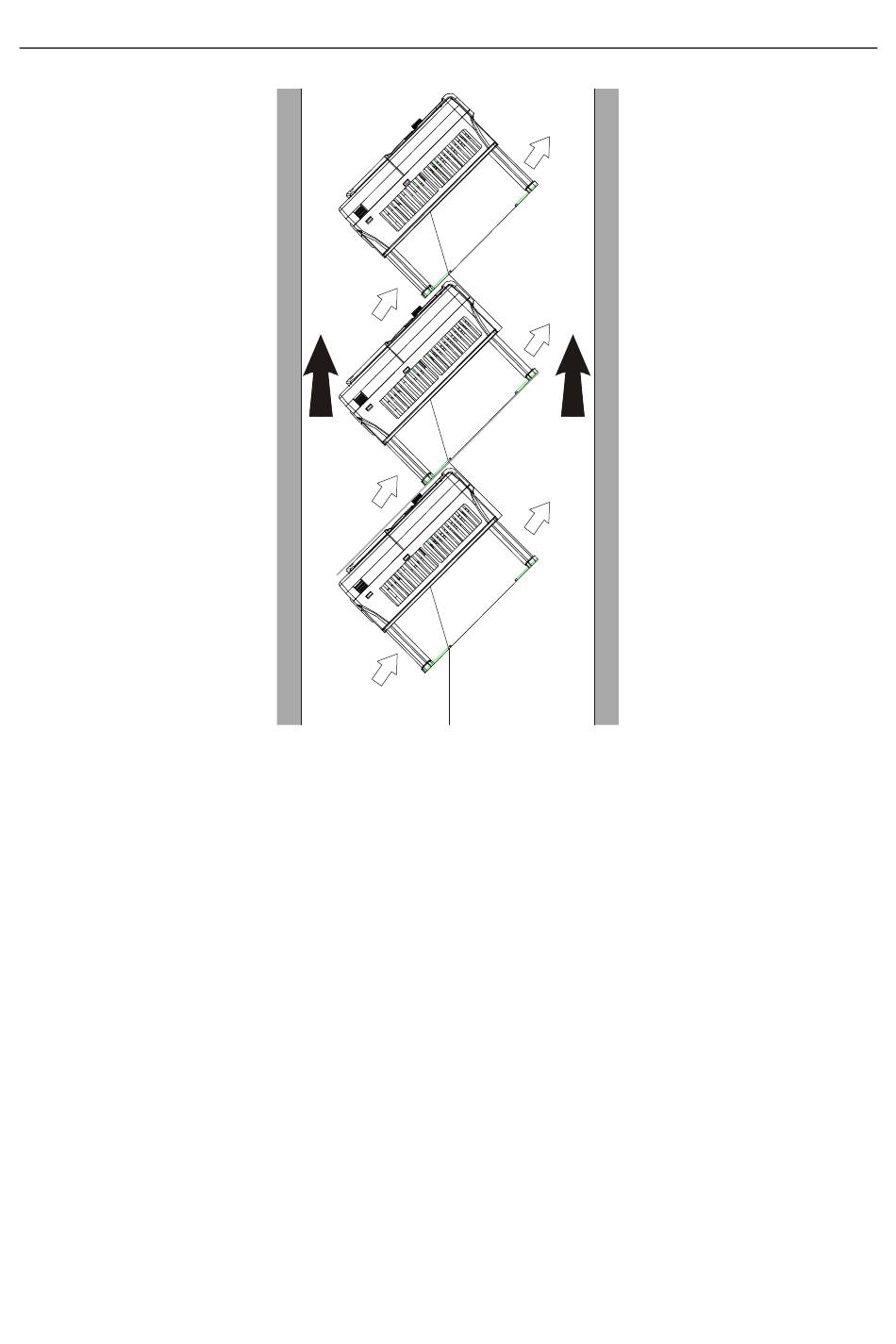

Figure 4-6 Tilted installation

Installation guidelines
