For example, if the PG card for motor 1 needs to be inserted at card slot 1, and the PG card for motor
2 needs to be inserted at card slot 3, you need to set P21.34=0x1100.
5.7 Temperature measuring
5.7.1 Using PT100/PT1000
(1) Through an expansion card

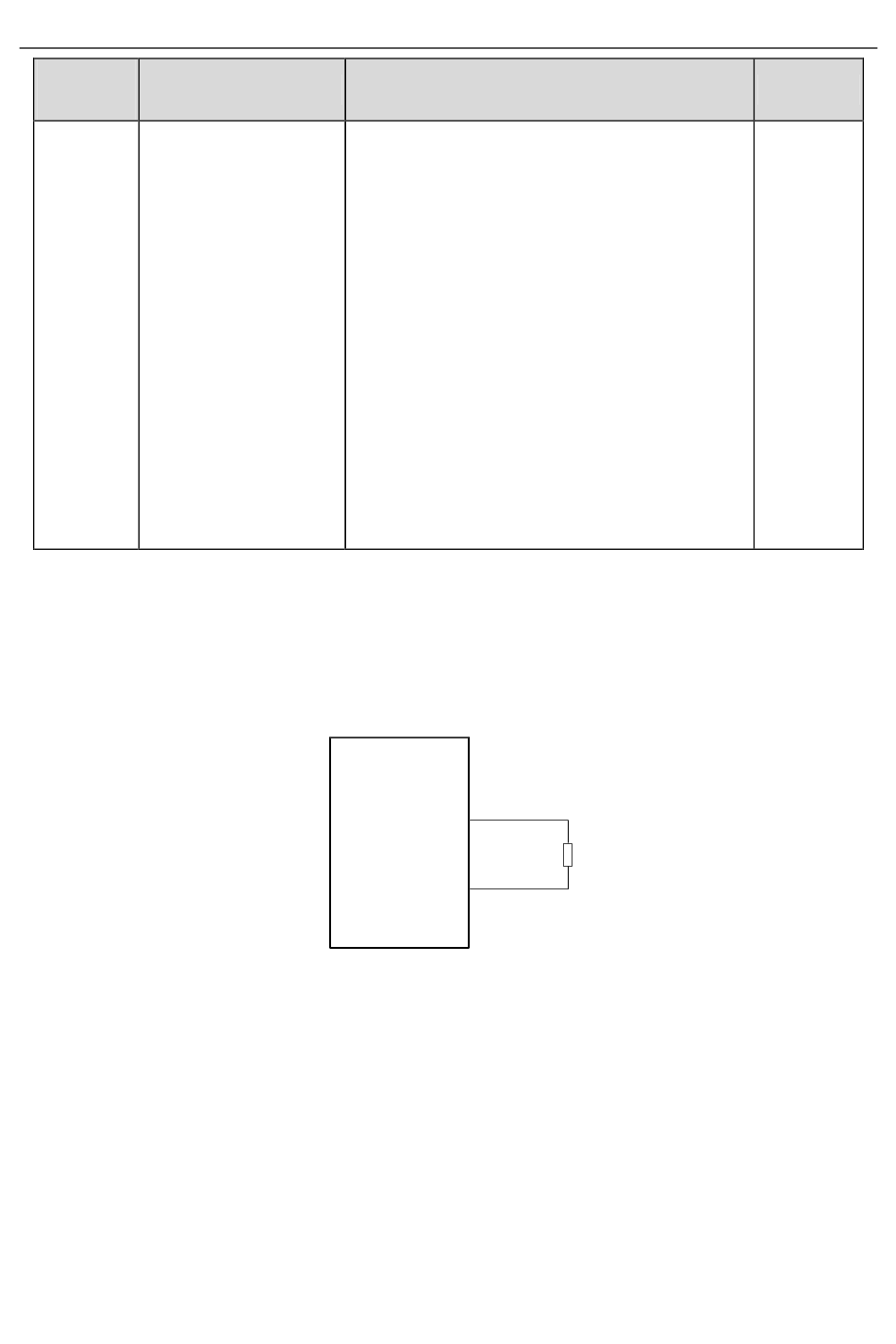

Figure 5-20 PT100/PT1000 measuring temperature through an expansion card
Procedure
1. Connect EC-IO502-00 to PT100/PT1000 according to Figure 5-20 PT100/PT1000 measuring
temperature through an expansion card.
2. Set P92.12=0x01 to enable PT100 to detect temperature or set P92.12=0x10 to enable PT1000
to detect temperature. In addition, set P92.13=0x01 to enable PT100 to detect disconnection or
set P92.13=0x10 to enable PT1000 to detect disconnection.
3. Check whether P94.16 (PT100 present temperature) and P94.17 (PT100 present digital) are
correct, or check whether P94.18 (PT1000 present temperature) and P94.19 (PT1000 present
Name
to group P20
1: Position closed-loop PG card, corresponding
to group P24
Hundreds place: Speed closed-loop selection
0: Disable
1: Position closed-loop PG card, as the speed
closed-loop for switching to motor 2
2: Position closed-loop SSI PG card, using
incremental signal as the speed closed-loop
selection
3: SSI absolute position as the speed
closed-loop (at this time, you need to set
corresponding installation card slots for the bits
from ones place to hundreds place)
IO card
Description
PT1+
PT100
PT1000
PT-
-130-
Commissioning guidelines
Setting
