Goodrive350-19 Series VFD for Crane
Function
Name
code
(closed-loop)
PT100/PT1000
P92.12 temperature
detection enabling
Description
Situation 2: When the braking force detection
terminal enabling signal is valid (terminal
function 85 is selected), the VFD keeps the
brake closed and enters the brake timing.

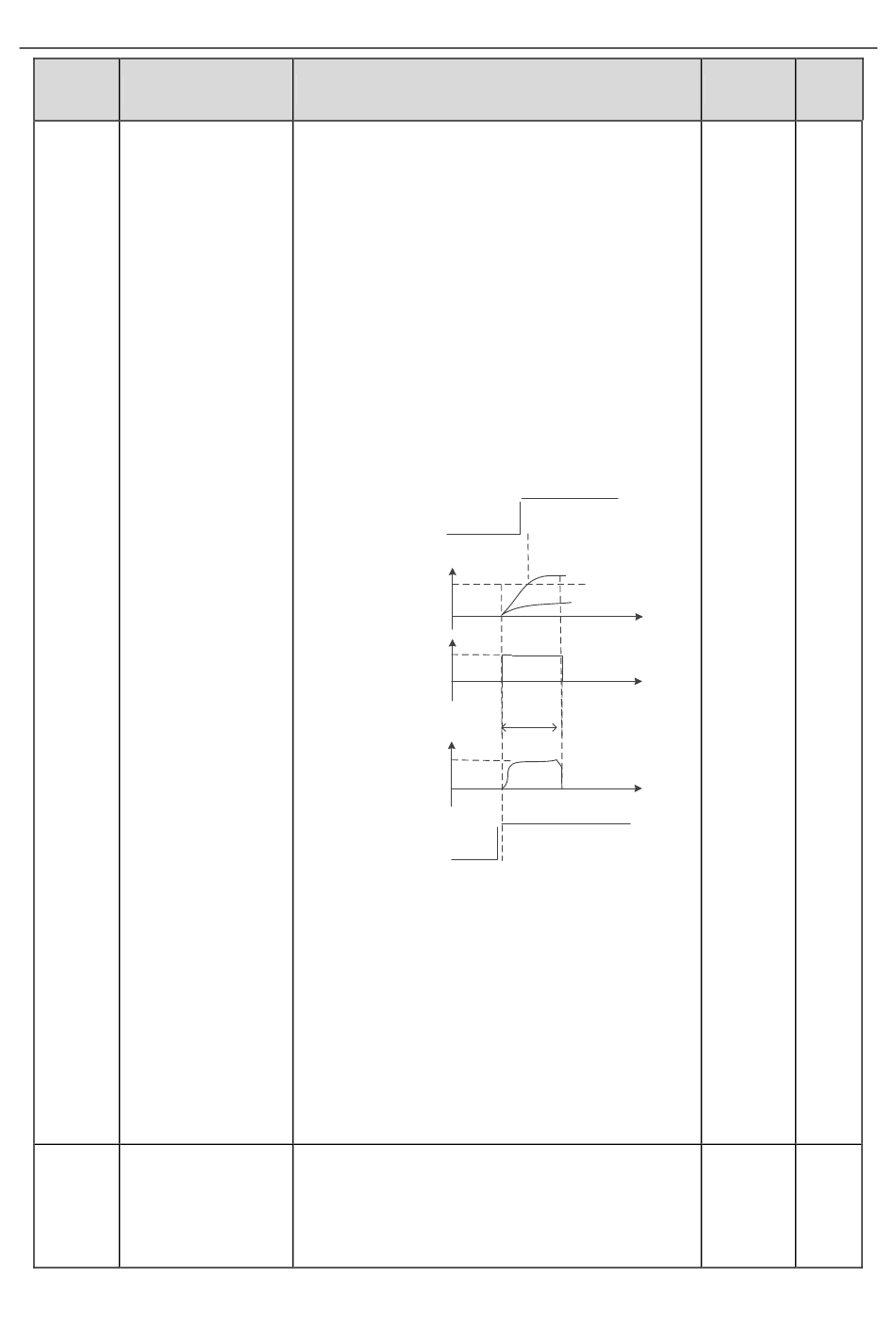

The detection logic is as follows:
The VFD runs with P92.08 at P92.09 and
detects the encoder pulse count. If the detected
encoder pulse count exceeds P92.11 within
P92.10, it is considered that braking force is
insufficient and slip risk may exist. Then the
multifunction output terminal outputs brake
failure signal and the brake slip fault and
outputs the brake failure fault (bE).
VFD status
Encoder pulse
count
P92.11
Frequency
P92.09
Torque current
%
P92.08
Brake detection S
terminal
Note: If receiving a running command
during the detection, the VFD automatically
exits from detection and responds to the
running command.
Setting range of P92.08: 0.0 –180.0% (of the
motor rated torque)
Setting range of P92.09: 0.00–20.00Hz
Setting range of P92.10: 0.0–30.0s
Setting range of P92.11: 0–20000
0x00–0x11
Ones place: PT100 temperature detection
0: Disable
1: Enable
-327-
Fault (bE)
P92.10
Valid
Function parameters
Default Modify
◎
0x00
