5.3.3.4 Controlling the eddy current control module through the HDO terminal
R
S
T

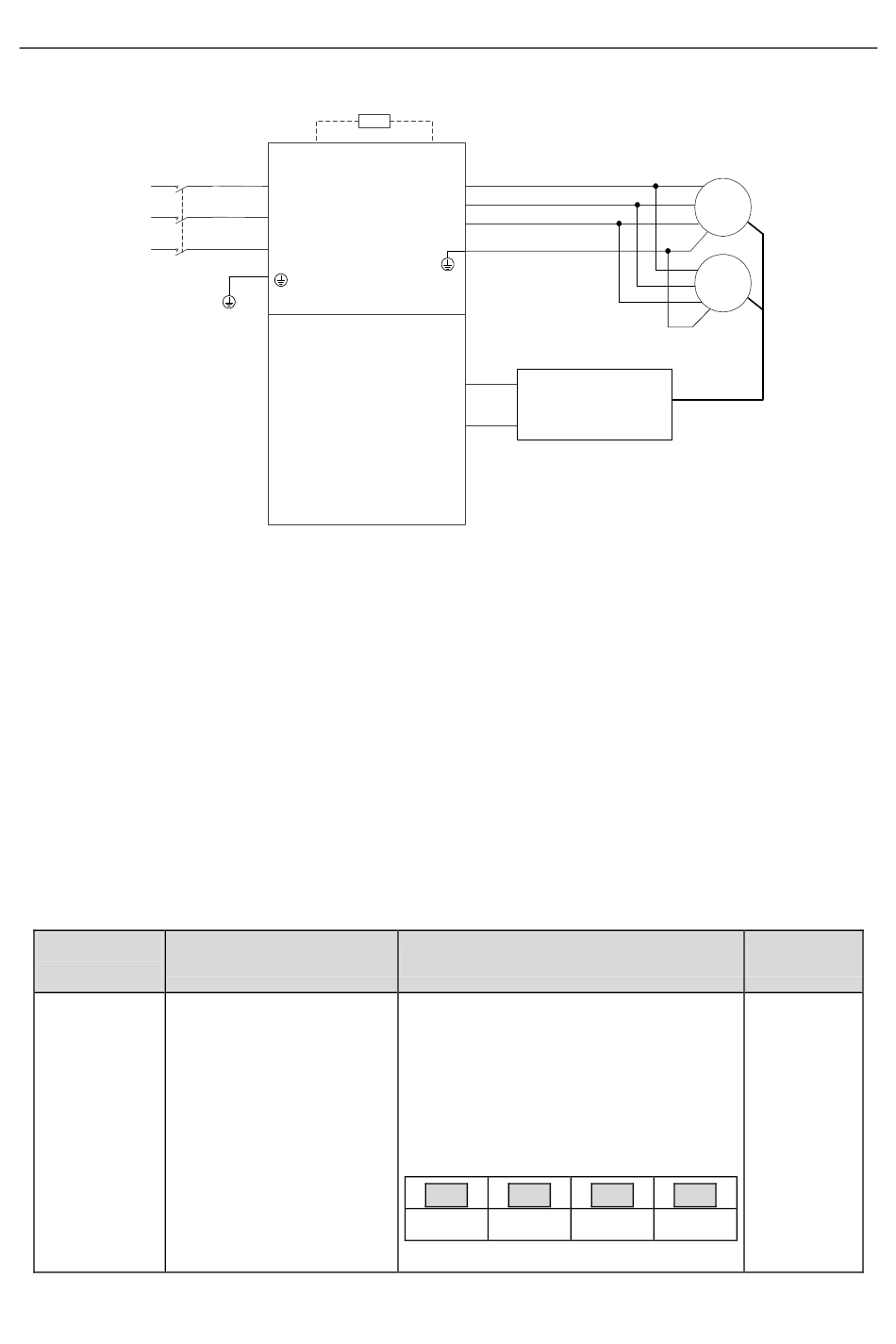

Figure 5-14 Connecting the HDO terminal to the eddy current control module
Commissioning procedure:
1. Connect the HDO terminal to the eddy current control module according to Figure 5-14
Connecting the HDO terminal to the eddy current control module.
2. Set P91.37=1 to enable eddy current control for tower crane slewing, and set P91.48 to adjust
HDO carrier frequency.
3. Set P91.38–P91.47 to adjust the eddy current control module output voltage change with
frequency.
Note: The duty ratio that is output when bit1 of P06.05 is 1 decreases when the frequency
increases. The eddy current control module output voltage decreases when the frequency
increases.
Function
code
Output terminal polarity
P06.05
Braking resistor
(+)
R
S
T
VFD
Name
The function code is used to set the
polarity of output terminals.
When a bit is 0, the output terminal is
positive.
When a bit is 1, the output terminal is
selection
negative.
Setting range: 0x0–0xF
PB
U
V
W
HDO
Eddy current
control module
COM
Setting
BIT3 BIT2 BIT1
RO2 RO1 HDO
