Goodrive350-19 Series VFD for Crane

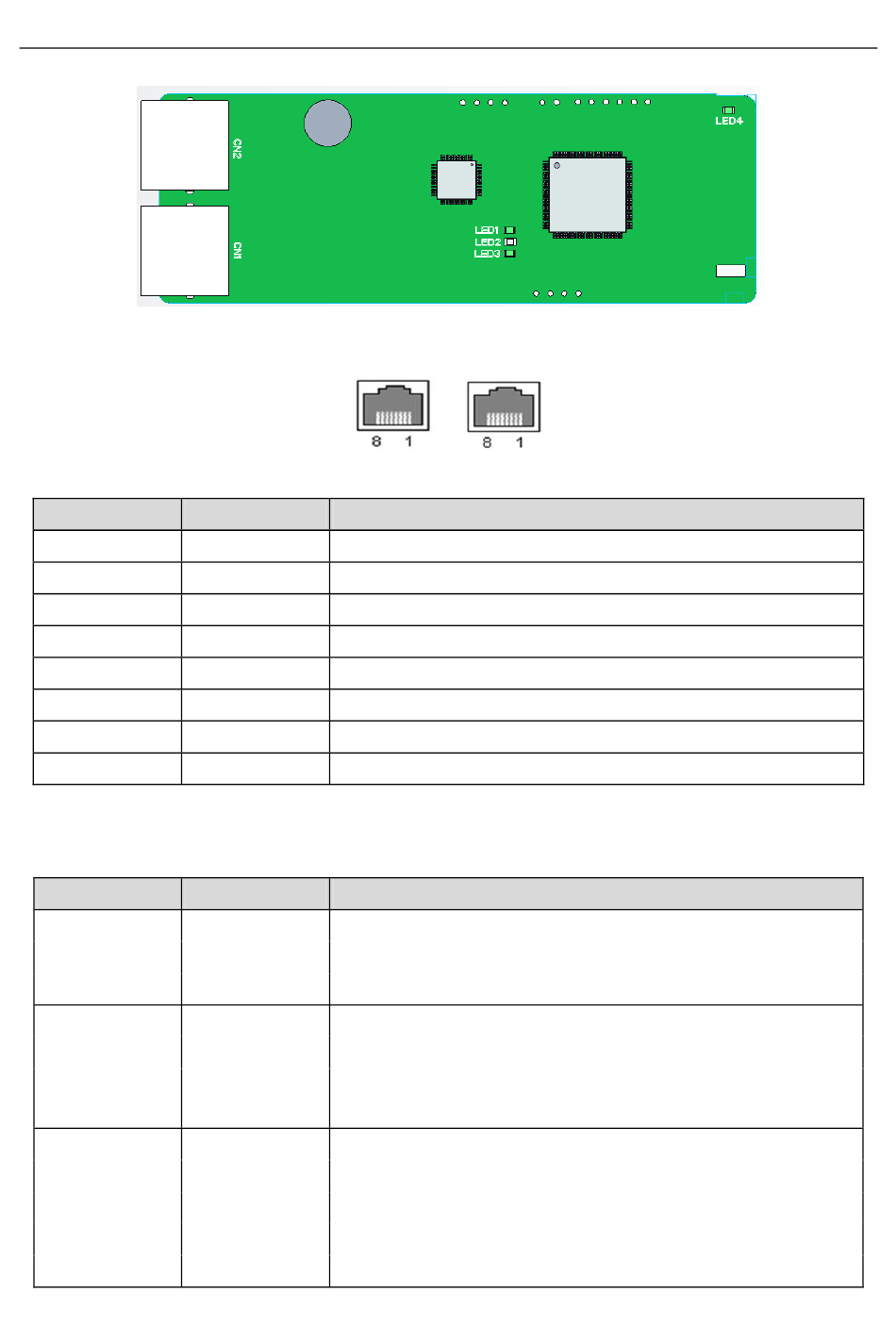

A.5.6 EtherNet IP communication card (EC-TX510)
The communication port adopts standard dual RJ45 interfaces, and the two RJ45 interfaces are not
distinguished from each other and can be interchangeably inserted.
Interface functions
Pin
1
2
3
4
5
6
7
8
The EtherNet IP communication card provides four LED indicators and four net port indicators to
indicate its states.
Indicator
LED1
LED2
(Bus status
indicator)
LED3
(System fault
indicator)
Function
TX+
TX-
RX+
n/c
n/c
RX-
n/c
n/c
Color
On: The card is shaking hands with the VFD.
Blinks (1Hz): The card and VFD communicate normally.
Green
Off: The card and VFD communicate improperly.
On: The communication between the card and the PLC is
online and data exchange is allowed.
Green
Blinks (1Hz): IP address conflict between the card and PLC.
Off: The communication between the card and PLC is offline.
On: Failed to set up I/O between the card and PLC.
Blinks (1Hz): Incorrect PLC configuration.
Blinks (2Hz): The card failed to send data to the PLC.
Red
Blinks (4Hz): The connection between the card and PLC timed
out.
Description
Transmit Data+
Transmit Data-
Receive Data+
Not connected
Not connected
Receive Data-
Not connected
Not connected
Function
-432-
Expansion card
