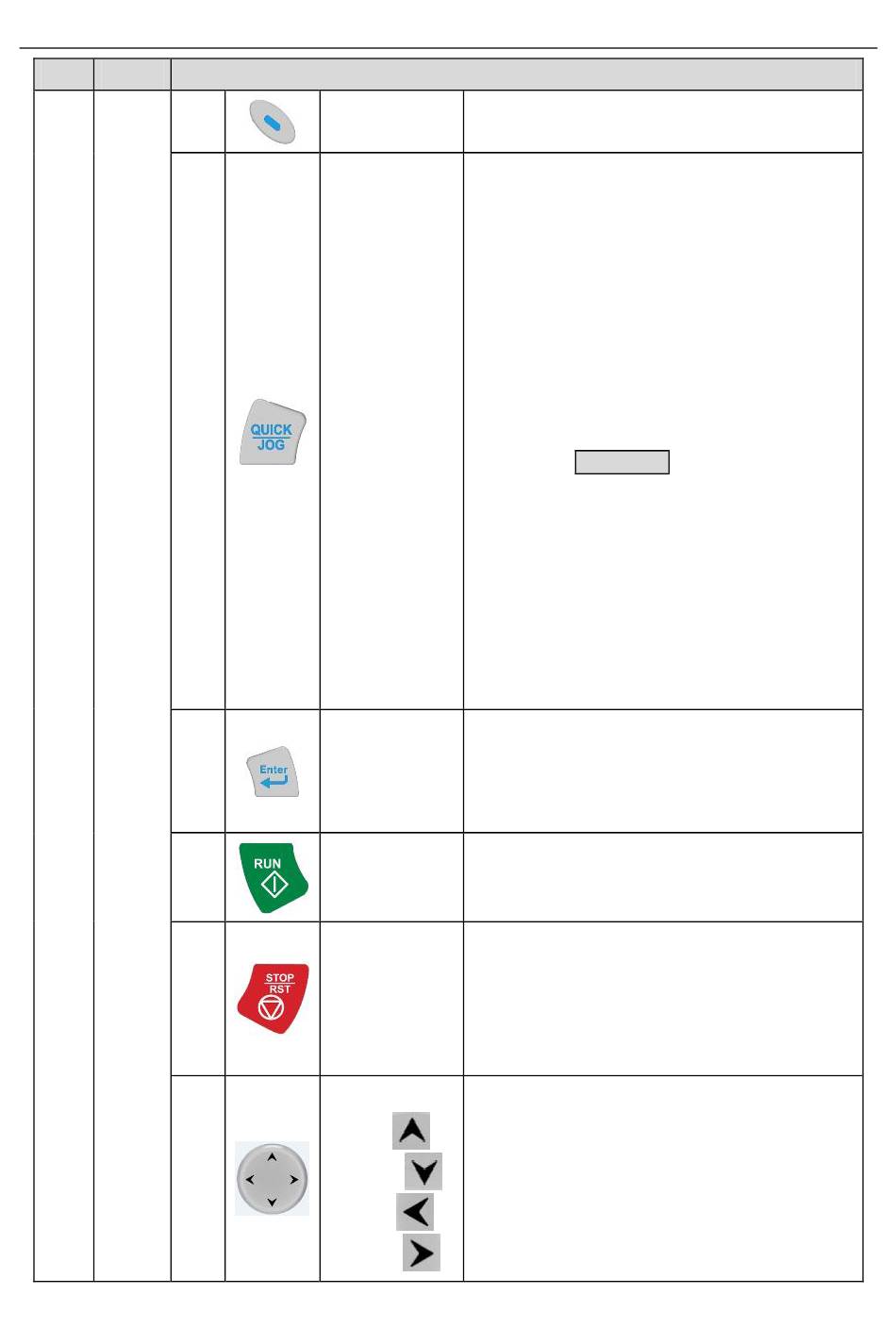

The function of function key is displayed in
the footer
Re-definable. It is defined as JOG function by
default, namely jogging. The function of
short-cut key can be set by the ones of
P07.02, as shown in the following:
0: No function
1: Jogging (linkage indicator (3); logic: steady
on)
2: Reserved
3: FWD/REV switch-over (linkage indicator
(3); logic: steady off)
Short-cut key
4: Clear the UP/DOWN setting (linkage
indicator (3) logic: steady off)
5: Coast to stop (linkage indicator (3); logic:
steady off)
6: Switch command channels in sequence
(linkage indicator (3); logic: steady off)
7: Reserved
Note: After restoring to default values, the
default function of short-cut key (7) is 1.
The function of confirmation key varies with
Confirmation
menus, such as confirming parameter setup,
key
confirming parameter selection, and entering
the next menu.
Under keypad operation mode, the running
key is used for running operation or
Run key
autotuning operation.
Press it to stop the VFD that is running or
autotuning. The function of this key is
Stop/Reset key
restricted by P07.04. In fault alarm state, this
key can be used for reset in any control
modes.
Up: The Up key function varies with
Direction key
interfaces, such as shifting up the displayed
Up:
item, shifting up the selected item, and
changing digits.
Down:
Down: The Down key function varies with
Left:
interfaces, such as shifting down the
Right:
displayed item, shifting down the selected
