INVT Goodrive350-19 Series Operation Manual page 79

Goodrive350-19 Series VFD for Crane
Table 5-2 Frequency giving parameters when using analog reference -10V–10V
Function
code
Setting channel of A
P00.06
frequency command
P05.29
Corresponding setting of
P05.30
P05.31
Corresponding setting of
P05.32
P05.33
Corresponding setting of
P05.34
P05.35
Corresponding setting of
P05.36
P05.37
5.1.4.4 Operating lever use instructions when using the -10V–10V analog reference
When the analog reference is in the range of -10V–10V, AI2 must be used, the values of P05.29 (AI2
lower limit), P05.30 (AI2 middle value 1), P05.31 (AI2 middle value 2), and P05.35 (AI2 upper limit)
must be in increasing order. Figure 5-4 Corresponding frequency settings of AI2 analog input (analog
reference of -10V–10V) shows the mapping between analog references and frequency settings.

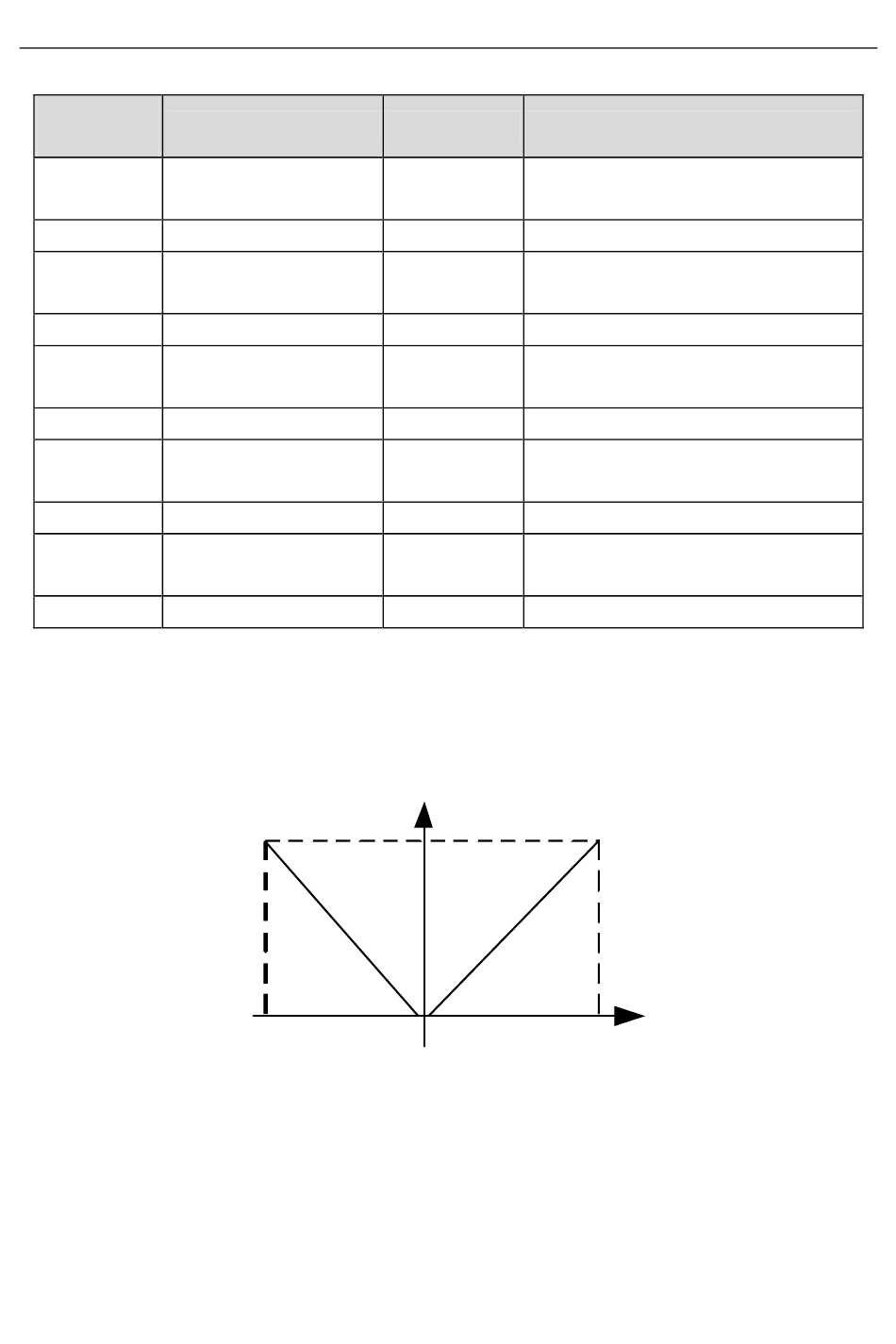

Figure 5-4 Corresponding frequency settings of AI2 analog input (analog reference of -10V–10V)
5.1.4.5 Open-loop vector controlled winch application macro parameters (P90.00=12)
The following lists the parameters inconsistent with closed-loop vector controlled winch application
macro parameters (P90.00=11).
Name
AI2 lower limit
AI2 lower limit
AI2 middle value 1
AI2 middle value 1
AI2 middle value 2
AI2 middle value 2
AI2 upper limit
AI2 upper limit
AI2 input filter time
-10V
Setting
2
-10.00V
100.0%
-0.10V
0.0%
0.10V
0.0%
10.00V
100.0%
0.100s
Corresponding setting
100%
0
-0.1V 0.1V
-67-
Commissioning guidelines
Remarks
AI2
-10.00V–P05.31
-300.0%–300.0%
P05.29–P05.33
-300.0%–300.0%
P05.31–P05.35
-300.0%–300.0%
P05.33–10.00V
-300.0%–300.0%
0.000s–10.000s
10V
