Goodrive350-19 Series VFD for Crane
D.4 Power supply
See chapter 4 Installation guidelines.
Ensure that the voltage class of the VFD is consistent with that of the grid.
D.5 Cable
D.5.1 Power cable
The sizes of the input power cables and motor cables must comply with local regulations.
 The input power cables and motor cables must be able to carry the corresponding load currents.
 The maximum temperature margin of the motor cables in continuous working cannot be lower
than 70° C.
 The conductivity of the PE grounding conductor is the same as that of the phase conductor (for
30kW and higher, it can be slightly reduced).
 For details about the EMC requirements, see B.6 EMC regulations.
To meet the EMC requirements stipulated in the CE standards, you must use symmetrical shielded
cables as motor cables (as shown in the following figure).
Four-core cables can be used as input cables, but symmetrical shielded cables are recommended.
Compared with four-core cables, symmetrical shielded cables can reduce electromagnetic radiation
as well as the current and loss of the motor cables.
Note: If the electrical conductivity of the motor cable shield layer does not meet the
requirements, a separate PE conductor must be used.
To protect the conductors, the cross-sectional area of the shielded cables must be the same as that of
the phase conductors if the cable and conductor are made of materials of the same type. This
reduces grounding resistance, and thus improves impedance continuity.
To effectively restrict the emission and conduction of radio frequency (RF) interference, the
conductivity of the shielded cable must at least be 1/10 of the conductivity of the phase conductor.
This requirement can be well met by a copper or aluminum shield layer. The following figure shows
the minimum requirement on motor cables of a VFD. The cable must consist of a layer of
spiral-shaped copper strips. The denser the shield layer is, the more effectively the electromagnetic
interference is restricted.

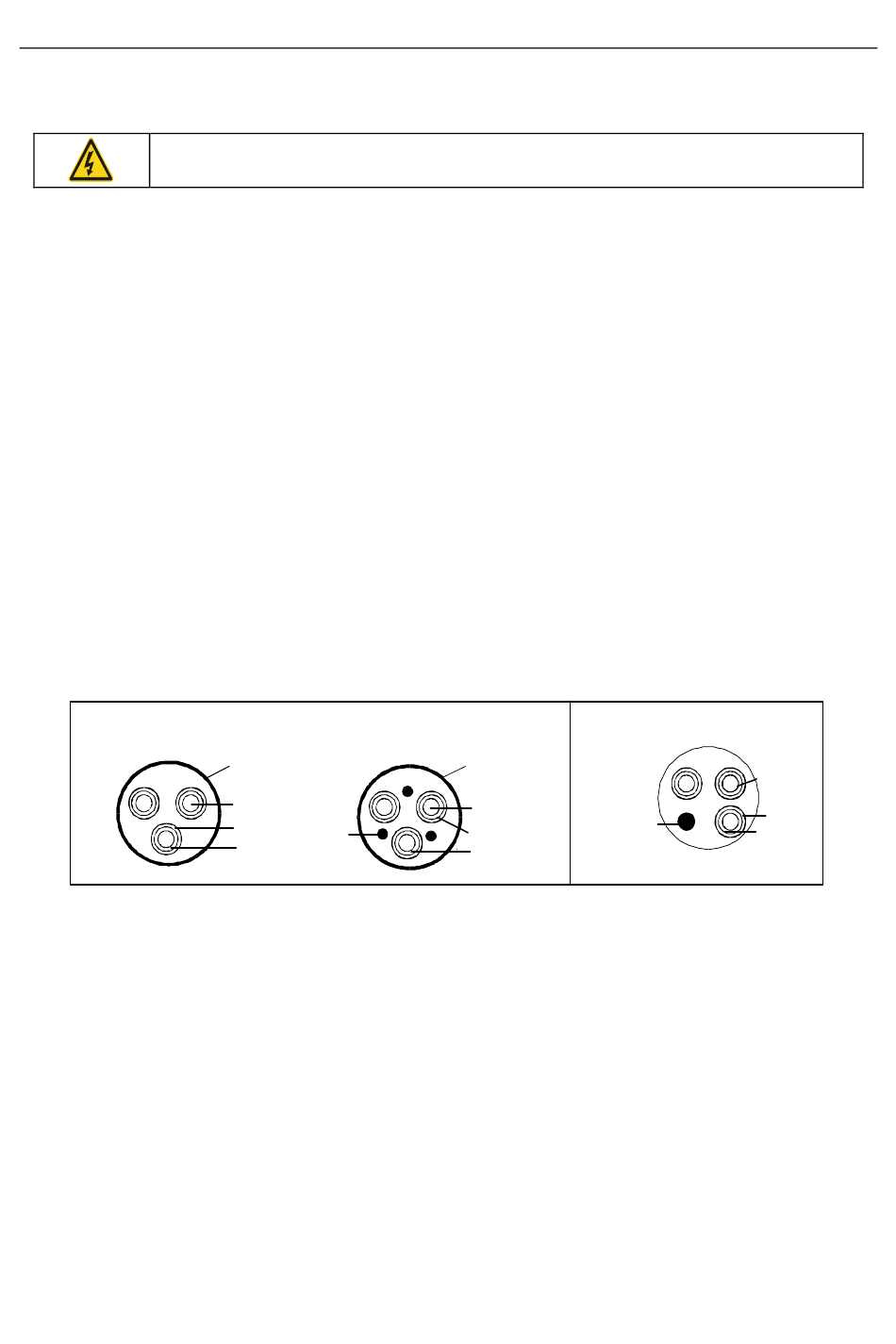

Symmetrical shielded cable
PE conductor and
shield layer
Conductor
Jacket
PE
Insulator
Shield layer
Conductor
Jacket
Insulator
-497-
Optional peripheral accessories
-
Four-core cable
Conductor
Jacket
PE
Insulator
