key or key to confirm the edit operation and return to the previous menu (parameter list).
The returned list is the list edited. If the
selecting the edit operation, it will return to the previous menu (while the parameter list remains
unchanged).
Note: For the parameter objects in the list header, move-up operation will be invalid, and the
same principle can be applied to the parameter objects in the list footer; after deleting a
certain parameter, the parameter objects under it will be moved up automatically.
The items in the parameter list in running state can be added as needed (through the menu of user
defined home parameters), and the list can also be edited such as "Place top", "Move up", "Move

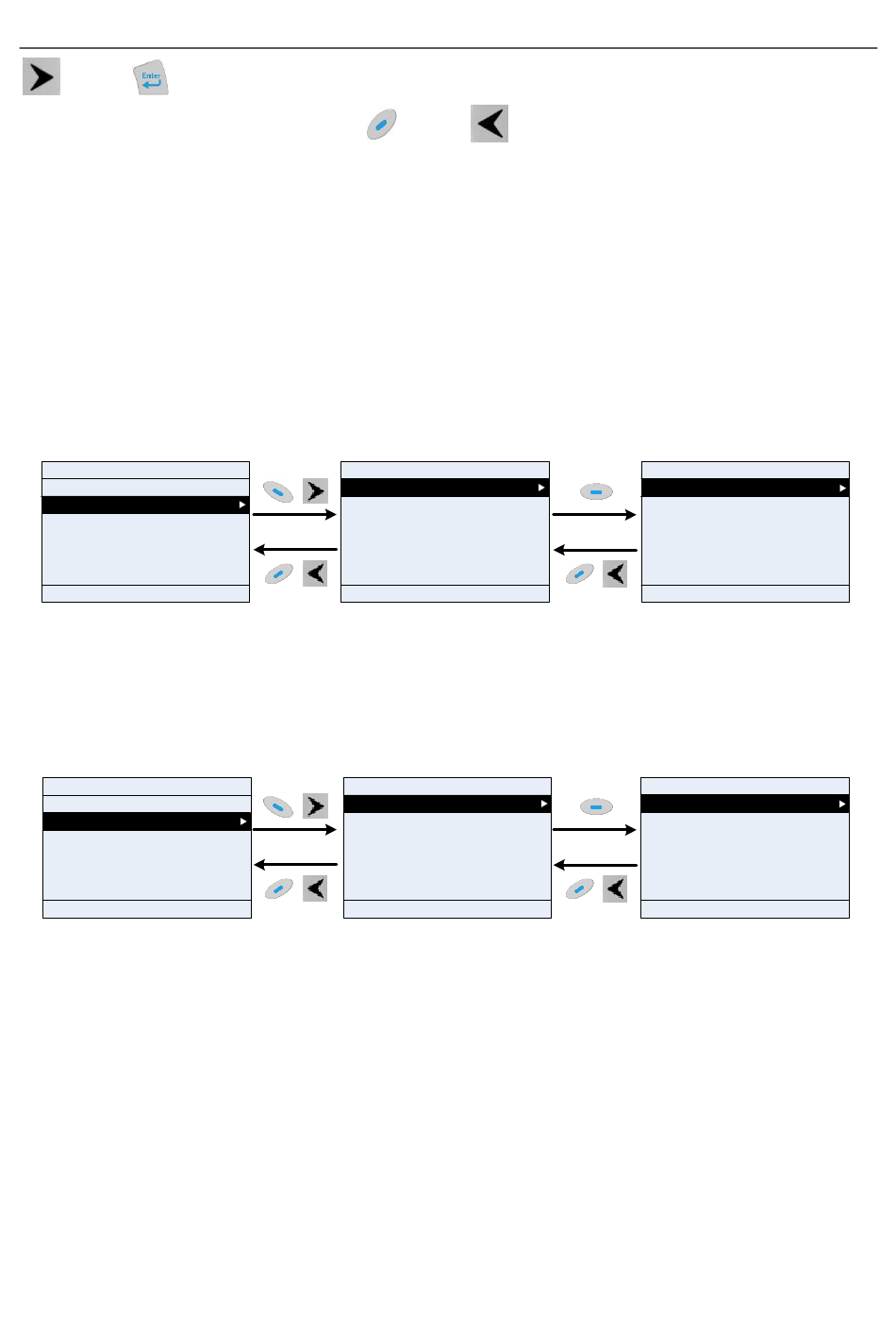

down", "Delete from the list", and "Restore default parameters". The edit function is shown in the
interface below.
16:02:35 Fwd
Local Ready
Stopped-state parameters
Running-state parameters
Back Home
The parameters of user defined parameter setting can be added, deleted or adjusted as needed, such
as "Place top", "Move up", "Move down", "Delete from the list", and "Restore default parameters"; the
adding function can be set in a certain function code in a function group. The edit function is shown in
the figure below.
16:02:35 Fwd Local Ready
Grouping parameters
User defined parameter setting
State parameter
Motor parameter autotuning
Parameter copy/Restore default
System setting
Back Home
D.3.2.3 Adding parameters to the parameter list displayed in stopped/running state
You can choose Menu > State monitoring, choose a submenu, and enter a specific function group
and then a specific function code to add the parameter to the list of parameters displayed in stopped
state or parameters displayed in running state.
16:02:35
GD350-19
P17.01：OutpFreq
P17.00：Set Freq
P17.11：DC Bus Volt
P17.03：Outp Volt
P17.04：Outp Cur
P17.05：Motor Speed
Sele Back
Figure D-11 Editing list 2
GD350-19 16:02:35
P00.00: Speed Ctrl Run Cmd
P00.01: Run Cmd Channel
P00.02: Comm Cmd Channel
P00.03: Max Output Freq
P00.04: RunFreq Up Limit
P00.05: RunFreq Low Limit
Sele Back
Figure D-12 Editing list 3
key or key is pressed in the edit interface without
Fwd GD350-19
Local Ready
Edit OK
Fwd
Local Ready GD350-19
Edit Sele
