INVT Goodrive350-19 Series Operation Manual page 22

Goodrive350-19 Series VFD for Crane
R
S
T
PE
Note:

The 132kW and higher VFD models can be connected to external DC reactors. Before
connection, remove the copper bar between P1 and (+). The 132kW and higher VFD models can
be connected to external braking unit. DC reactors and braking units are optional parts.

The 18.5kW–110kW VFD models are equipped with built-in DC reactors.

The 110kW and lower VFD models carry built-in braking units. The models with built-in braking
units can also be connected to external braking resistors. Braking resistors are optional parts.

The 660V VFD models can be connected to external DC reactors. Before connection, remove the
copper bar between P1 and (+). These models can be connected to external braking unit. DC
reactors and braking units are optional parts.
3.3 Product specifications
Function description
Input voltage (V)
Power input
Input current (A) See section 3.6 Product ratings.
Input frequency
Input power factor 30–110kW≥0.9
Output voltage (V) 0–Input voltage (V)
Power
Output current (A) See section 3.6 Product ratings.
output
Output power
（+）
DC reactor
P1

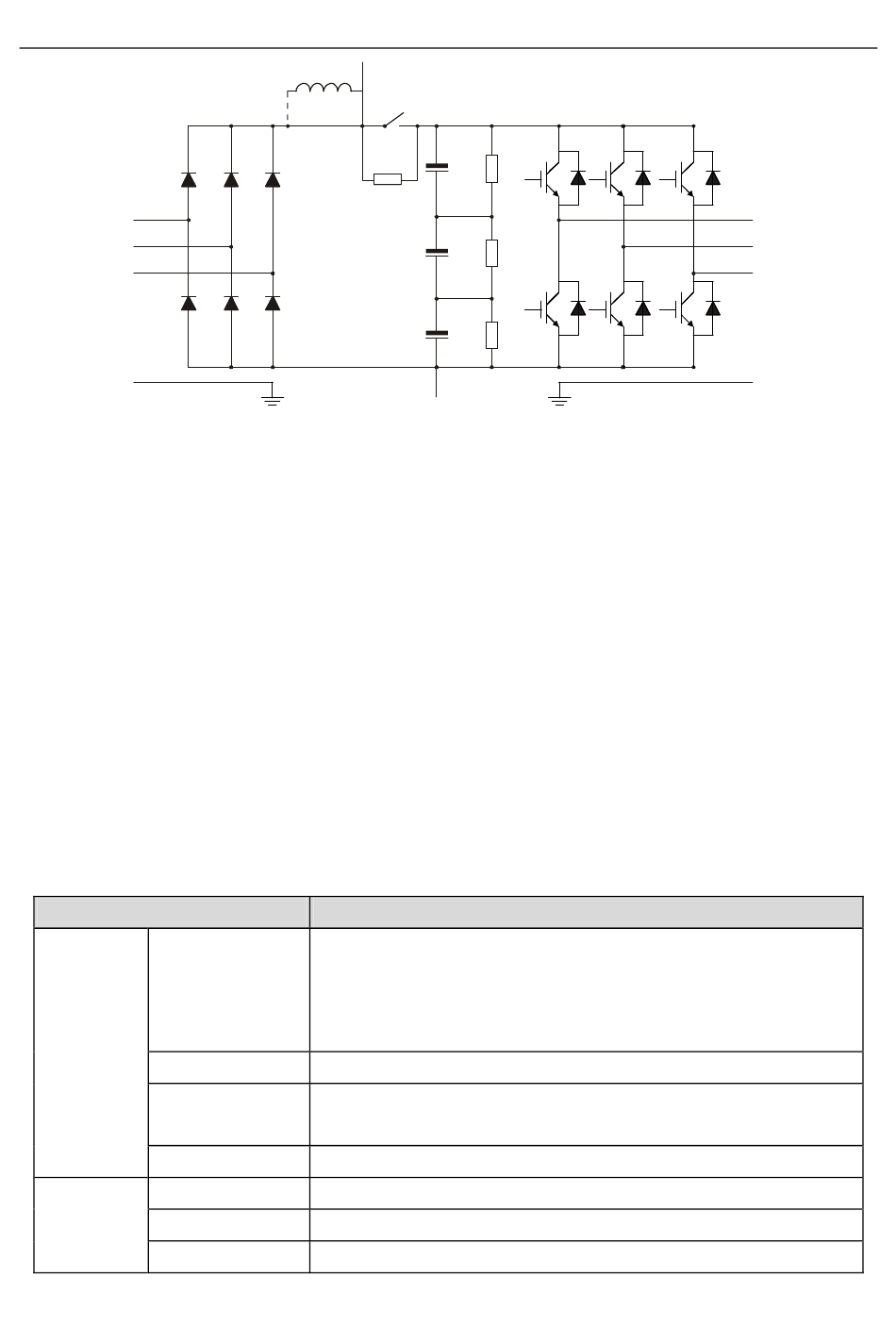

Figure 3-6 Main circuit diagram for all 660V VFD models
Table 3-1 Product specifications
AC 3PH 380V (-15%)–440V (+10%)
Rated voltage: 380V
AC 3PH 520V (-15%)–690V (+10%)
Rated voltage: 660V
50Hz or 60Hz; Allowed range: 47–63Hz
(Hz)
See section 3.6 Product ratings.
（-）
Specifications
-10-
Product overview
U
V
W
PE
