Goodrive350-19 Series VFD for Crane
No. Name
6.3 LED keypad display
The VFD keypad displays information such as the stopped-state parameters, running-state
parameters, and fault status, and allows you to modify function codes.
6.3.1 Displaying fault information
After detecting a fault signal, the VFD enters the fault alarm state immediately, the fault code blinks on
the keypad, and the TRIP indicator is on. You can perform fault reset by using the STOP/RST key,
control terminals, or communication commands.
If the fault persists, the fault code is continuously displayed.
6.3.2 Editing function codes
You can press the PRG/ESC key to enter the editing mode in stopped, running, or fault alarm state (if
a user password is used, see the description of P07.00). The editing mode contains two levels of
menus in the following sequence: Function code group or function code number → Function code
setting. You can press the DATA/ENT key to enter the function parameter display interface. In the
function parameter display interface, you can press the DATA/ENT key to save parameter settings or
press the PRG/ESC key to exit the parameter display interface.

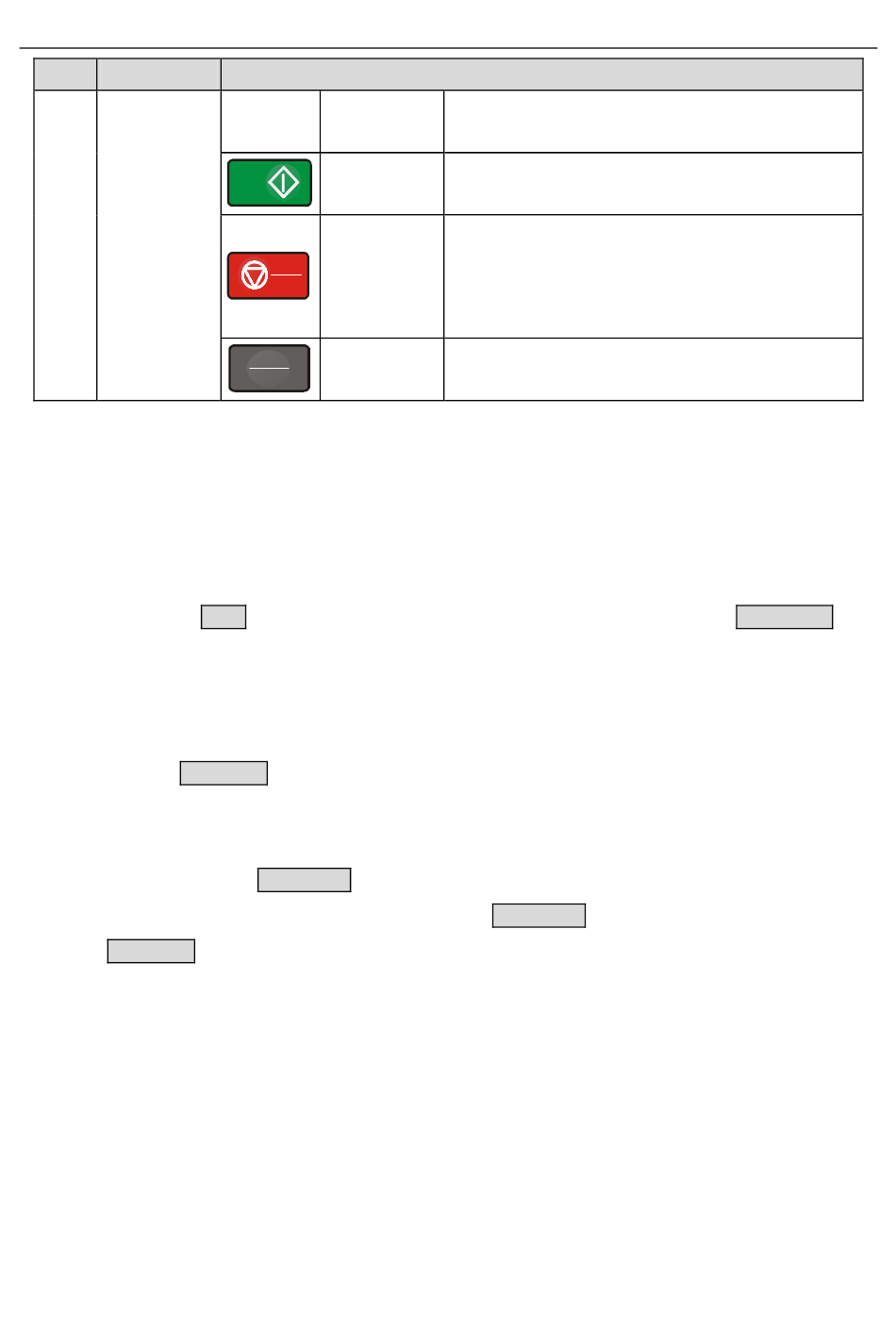

RUN
Run key
Stop/Reset
STOP
RST
key
Multifunction
QUICK
JOG
shortcut key
Description
running state or to select digits to change during
parameter setting.
Press it to run the product when using the
keypad for control.
Press it to stop the VFD that is running. The
function of this key is restricted by P07.04. In
fault alarm state, this key can be used for reset in
any control modes.
The function is determined by P07.02.
-138-
Basic operation guidelines
