4.2.3 Installation method
There are three kinds of installation modes based on different VFD dimensions.

Wall mounting: applicable to 380V 315kW and lower models, and 660V 355kW and lower models

Flange mounting: applicable to 380V 200kW and lower models, and 660V 220kW and lower
models

Floor mounting: applicable to 380V 220–500kW and 660V 250–630kW models
Step 1 Mark the installation hole positions. For details about the installation hole positions, See
Appendix D Optional peripheral accessories.
Step 2 Mount the screws or bolts onto the designated positions.
Step 3 Lean the VFD against the wall.
Step 4 Tighten the screws.
Note:

When the flange mounting method is used, the (optional part) flange mounting plate is required
for the 380V 1.5–75kW VFD models but not required for the 380V 90–200kW and 660V
NG
b. Horizontal installation

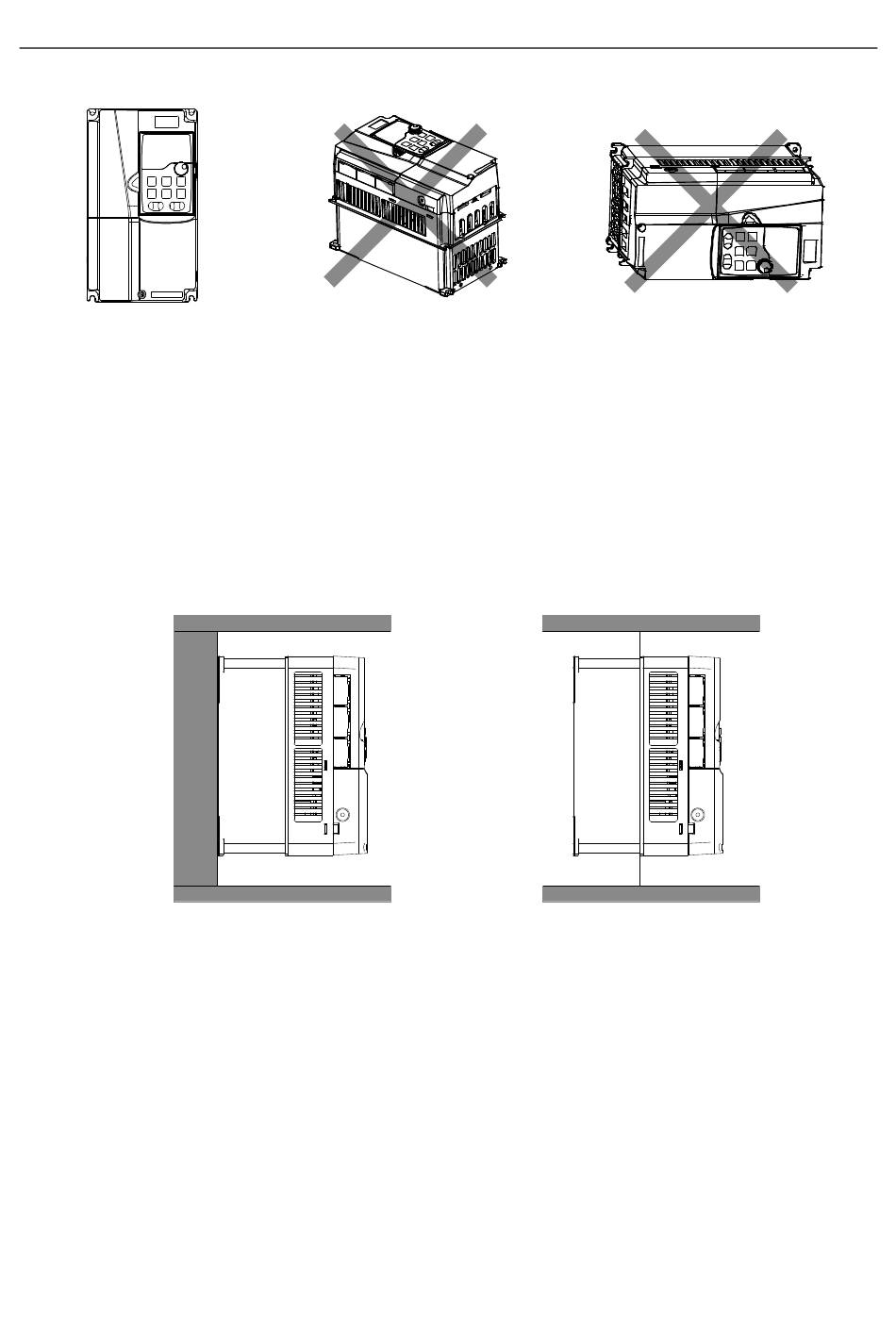

Figure 4-1 Installation direction
Wall mounting
Figure 4-2 Mounting method
