Goodrive350-19 Series VFD for Crane

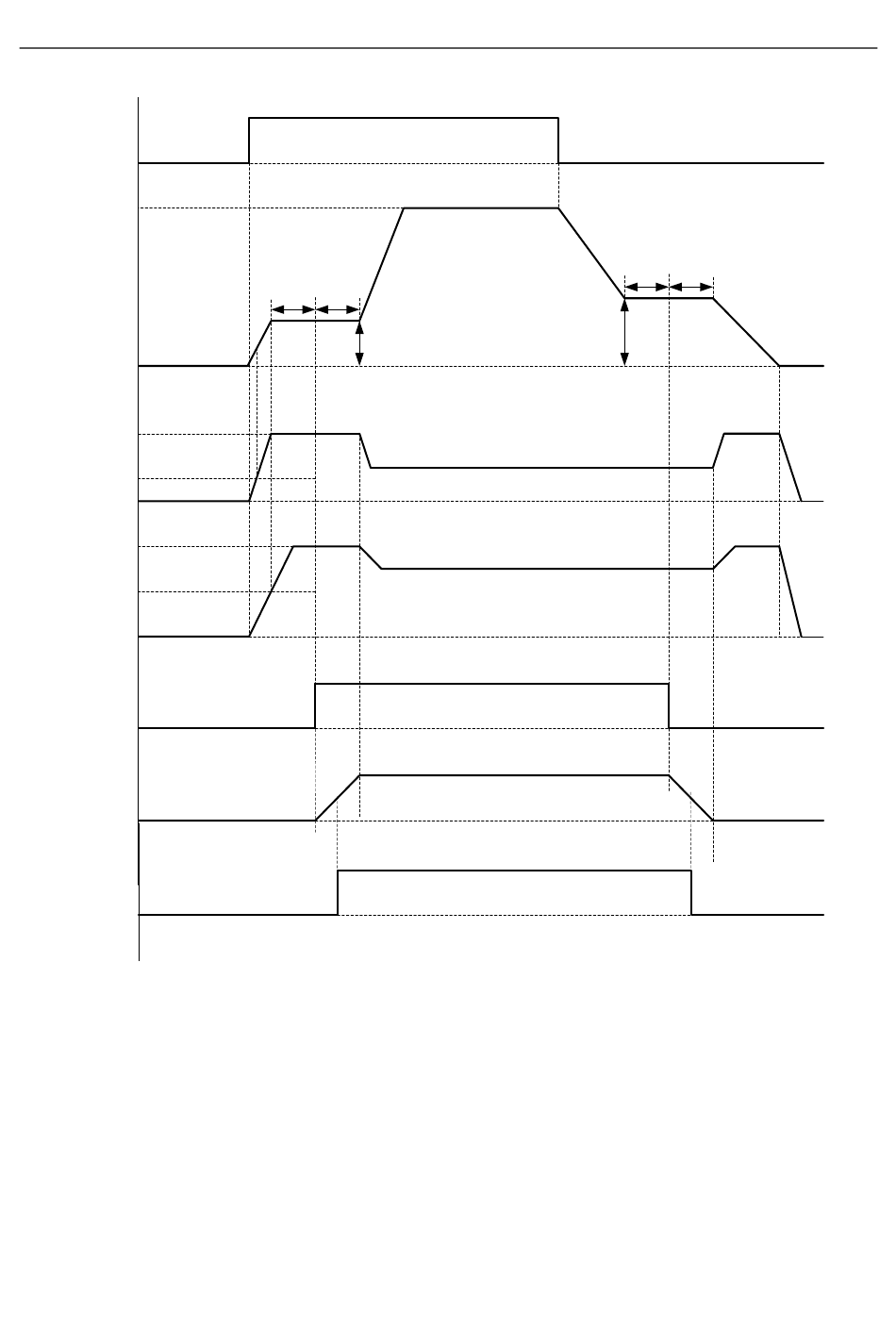

Perform trial run and check whether the holding brake timing is correct.
FWD/REV
running
command
Set
frequency
Output
frequency
Current upper
limit
Torque verification current
(P90.12/P90.13)
Output current
Torque upper
limit
Torque verified
(P90.14/P90.15)
Torque
current
Brake
opening
command
Brake action
Brake
feedback
T1: Delay before forward brake release P90.20 T3: Delay before forward brake closing P90.24
T2: Delay after forward brake release P90.22
T5: Delay before reverse brake release P90.21 T7: Delay before reverse brake closing P90.25
T6: Delay after reverse brake release P90.23
5.1.1.1 Description about torque verification and brake slip
After the VFD runs, the VFD output current or torque is checked before the holding brake release. If
the VFD output current or torque is greater than the output current or torque setting (P90.12 or
P90.15) and the situation lasts 60ms, torque verification succeeds. If torque verification does not pass
after the torque verification time P90.30 is reached, the torque verification fault "tPF" is reported.
T1/T5 T2/T6
FWD/REV
Torque
frequency
verification
passed
Close
Close
FWD/REV
brake close
frequency
P90.16/
brake
P90.17
release
Release
Open
T4: Delay after forward brake closing P90.26
T8: Delay after reverse brake closing P90.27
-43-
Commissioning guidelines
T3/T7 T4/T8
P90.18/
P90.19
Close
Close
