Hardware layout and configuration

5 Hardware layout and configuration
The STM32 Nucleo board is designed around the STM32 microcontrollers in a 64-pin LQFP
package.
Figure 2 shows the connections between the STM32 and its peripherals (ST-LINK/V2-1,
pushbutton, LED, Arduino connectors and STMicroelectronics Morpho connector).
Figure 3 and
10/55
All manuals and user guides at all-guides.com
Figure 4 show the location of these features on the STM32 Nucleo board.

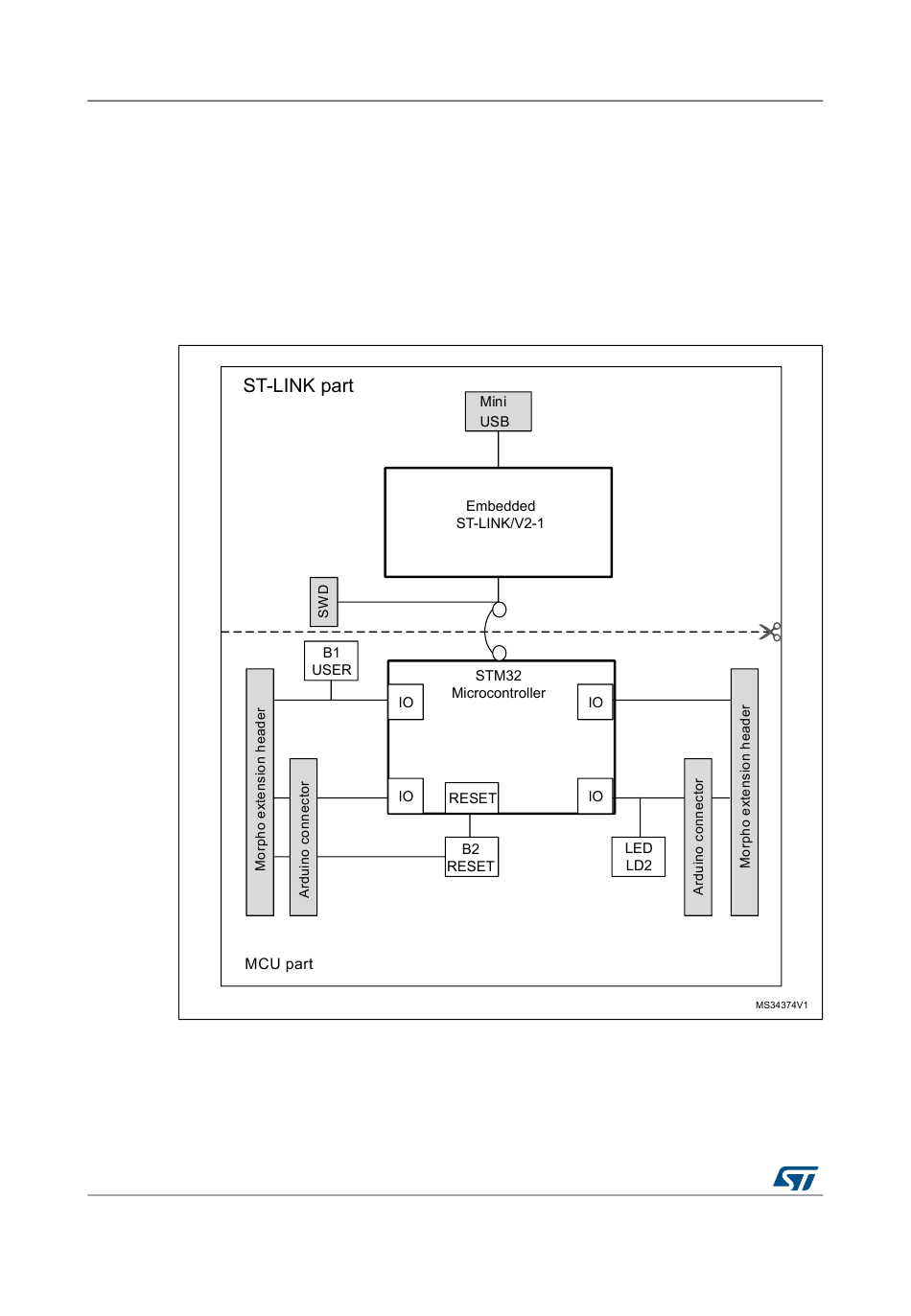

Figure 2. Hardware block diagram
