9.1.13
H
Operating Manual GMK6300L

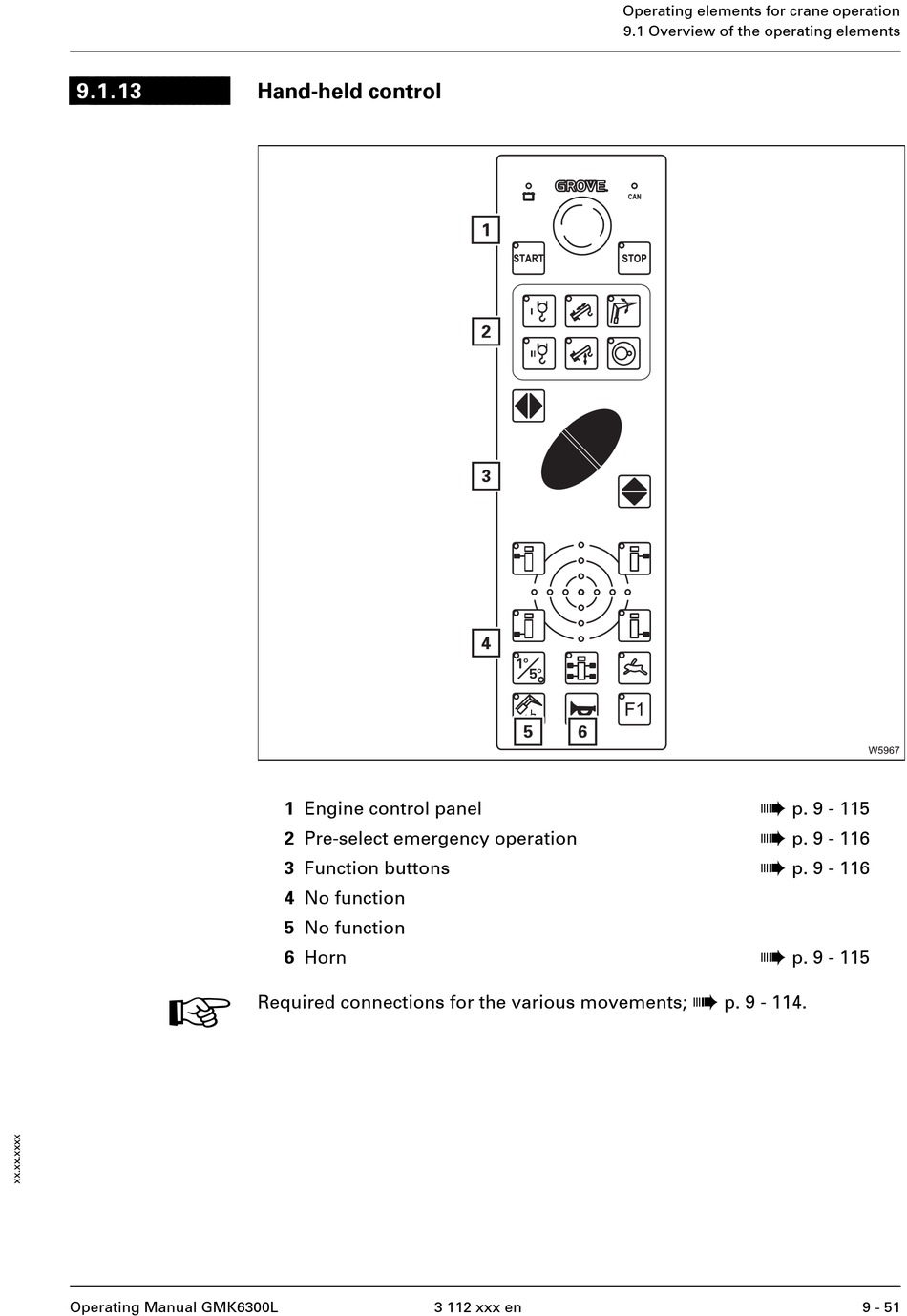

Hand-held control

1 Engine control panel
2 Pre-select emergency operation
3 Function buttons
4 No function
5 No function
6 Horn
Required connections for the various movements;
3 112 xxx en
Operating elements for crane operation
9.1 Overview of the operating elements
à
p. 9 - 115
à
p. 9 - 116
à
p. 9 - 116
à
p. 9 - 115
à
p. 9 - 114.
9 - 51
